INSTALLATION
Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside of package:
The unit x 1
User manual x 1
Communication cable x 1
Software CD x 1
Parallel cable x 2
Installation
Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction materials.
Mount on a solid surface
Install this inverter at eye level in order to allow the LCD display to be read at all times.
The ambient temperature should be between 0°C and 40°C to ensure optimal operation.
Rack Mounting

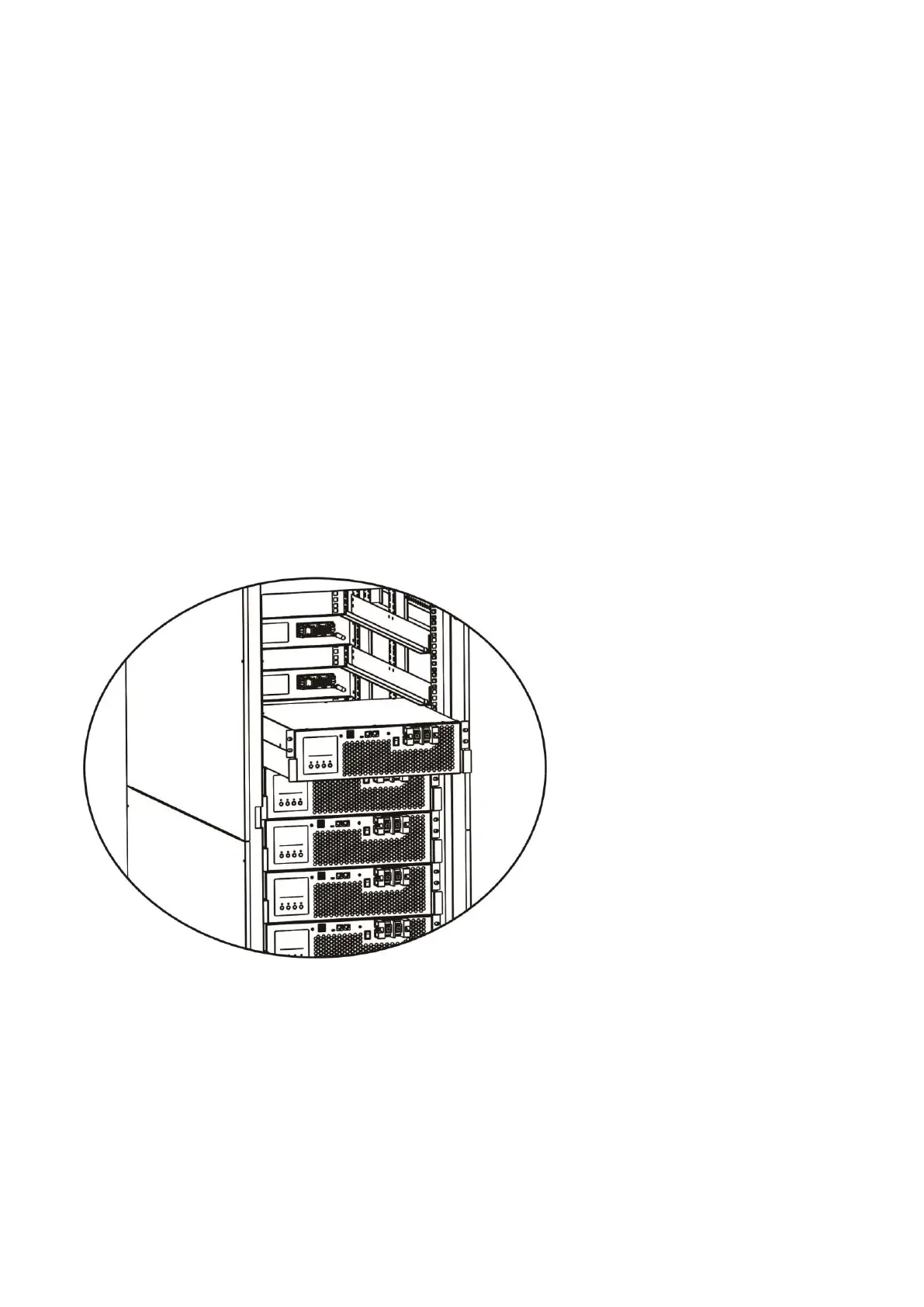

Please follow the diagram below to install the Inverter module in a 19-inch bay at the desired height in the
upright cabinet. Secure the device adequately and fix it to the cabinet with six screws.
