PARALLEL FUNCTION
1. Introduction
This inverter can be used in parallel for two applications.
1. Parallel operation in single phase with up to 8 units. The supported maximum output power is
24KW/24KVA for OGPlus3.24/RM OG-Plus 3.48RM model and 40KW/40KVA for OG-Plus 5.48RM model.
2. Maximum 8 units work together to support three-phase equipment. Six units support one phase maximum.
For OGPlus3.24/RM OG-Plus 3.48RM model, the supported maximum output power is 24KW/24KVA and
one phase can be up to 18KW/18KVA. For OG-Plus 5.48RM model, the supported maximum output power is
40KW/40KVA and one phase can be up to 30KW/30KVA.
NOTE: If this unit is bundled with share current cable and parallel cable, this inverter is default supported
parallel operation. You may skip section 3. If not, please purchase parallel kit and install this unit by following
instruction from professional technical personnel in local dealer.
2. Package Contents

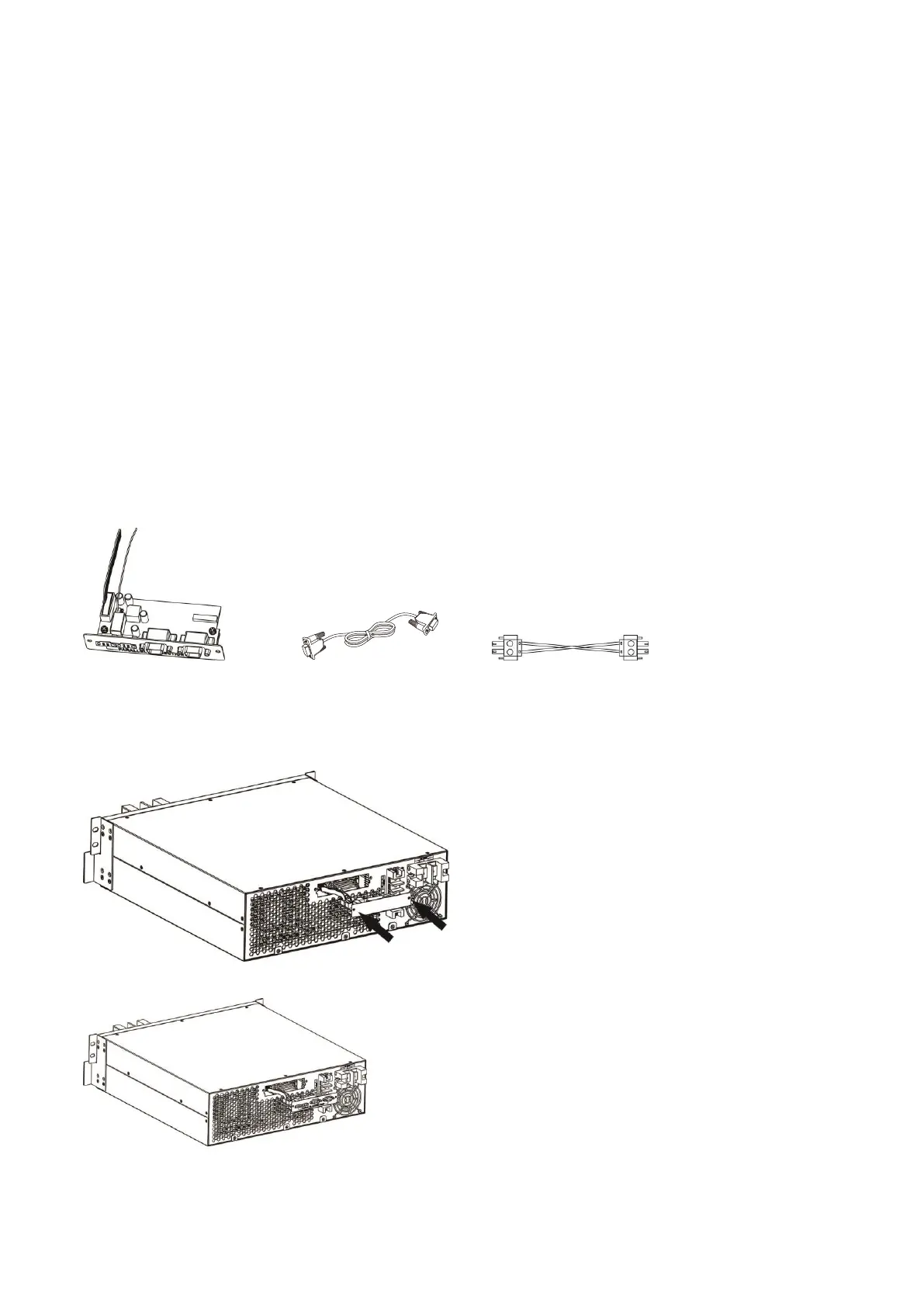

In parallel kit, you will find the following items in the package:
Parallel board Parallel communication cable Current sharing cable
3. Parallel board installation
Step 1: Take out parallel cover by removing two screws as below chart and remove 2-pin and 14-pin cables.
Step 2: Replace it with parallel board.
To Next Page
