TP-5594 5/95 Scheduled Maintenance 3-15
Gauge Connections
The 7 and 10 kW generator sets may be equipped with
sendingdevicesforconnectiontooilpressureandwater
temperature gauges (not provided). Locations of the oil
pressure and water temperature senders are shown in
Figure 3-16.
1
5
DETAIL A
See DETAIL A
CV-250000-G
2
3
4
1. Water Temperature Sender
2. Adapter
3. Engine Block
4. Oil Pressure Switch
5. Oil Pressure Sender

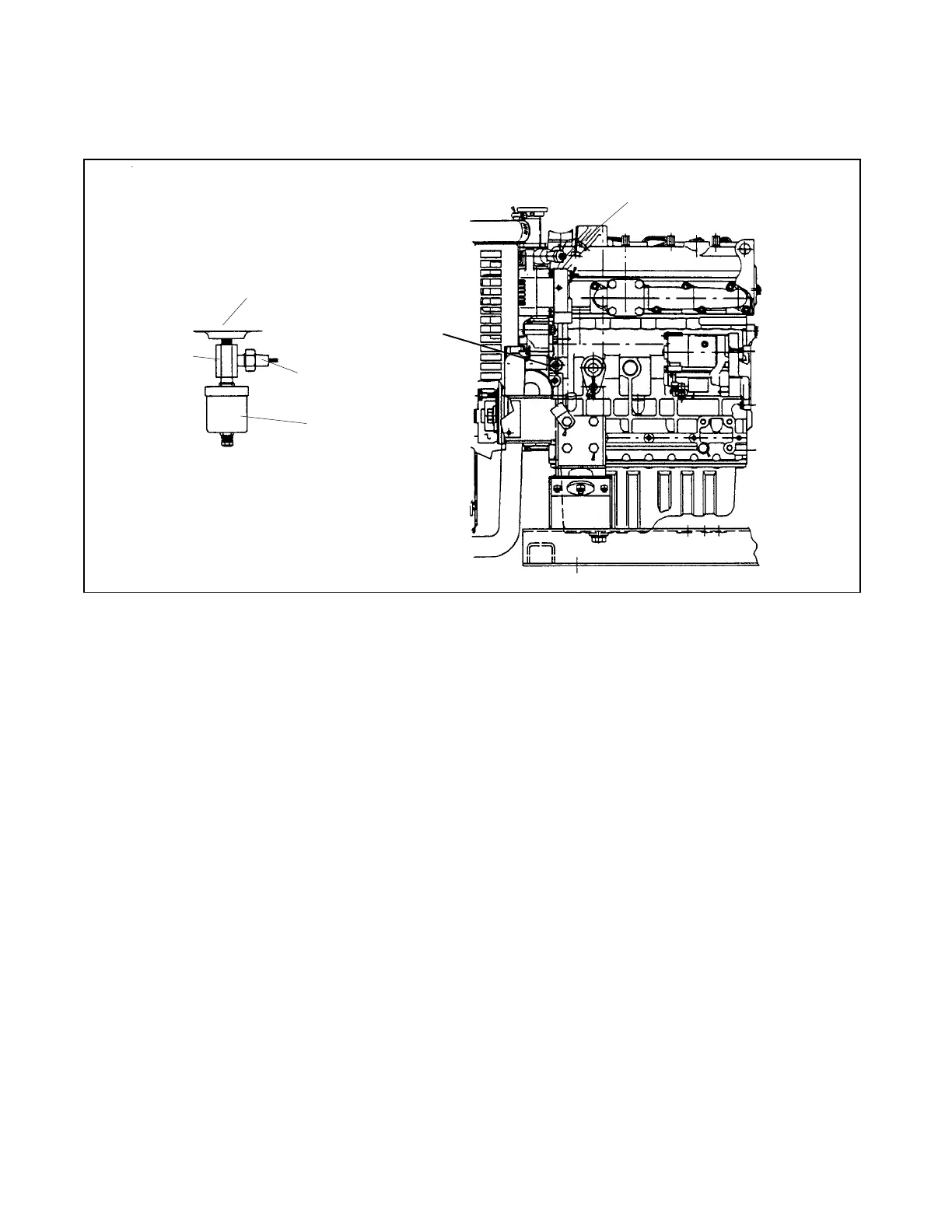

Figure 3-16. Engine Temperature & Oil Pressure Senders
