TP-5594 5/95 Installation 6-7
Generator Free-Air Opening:
140 sq. in. (903 sq. cm)
Radiator Free-Air Opening:
7 kW—281 sq. in. (1813 sq. cm)
10 kW—306 sq. in. (1974 sq. cm)
Seal End Bracket to
Compartment Wall or Duct
Seal Radiator
to Compartment Wall
7 kW: 16.5 in (419 mm)
10 kW: 18 in. (457 mm)
17 in.
(432 mm)
Generator
End
Bottom Discharge in. (mm)
Outlet A Outlet B
7 kW:
Length 8 (203) 18.83 (479)
Width 19 (483) 8.88 (226)
10 kW:
Length 6 (152) 22 (559)
Width 19 (483) 8.88 (226)
Radiator
End

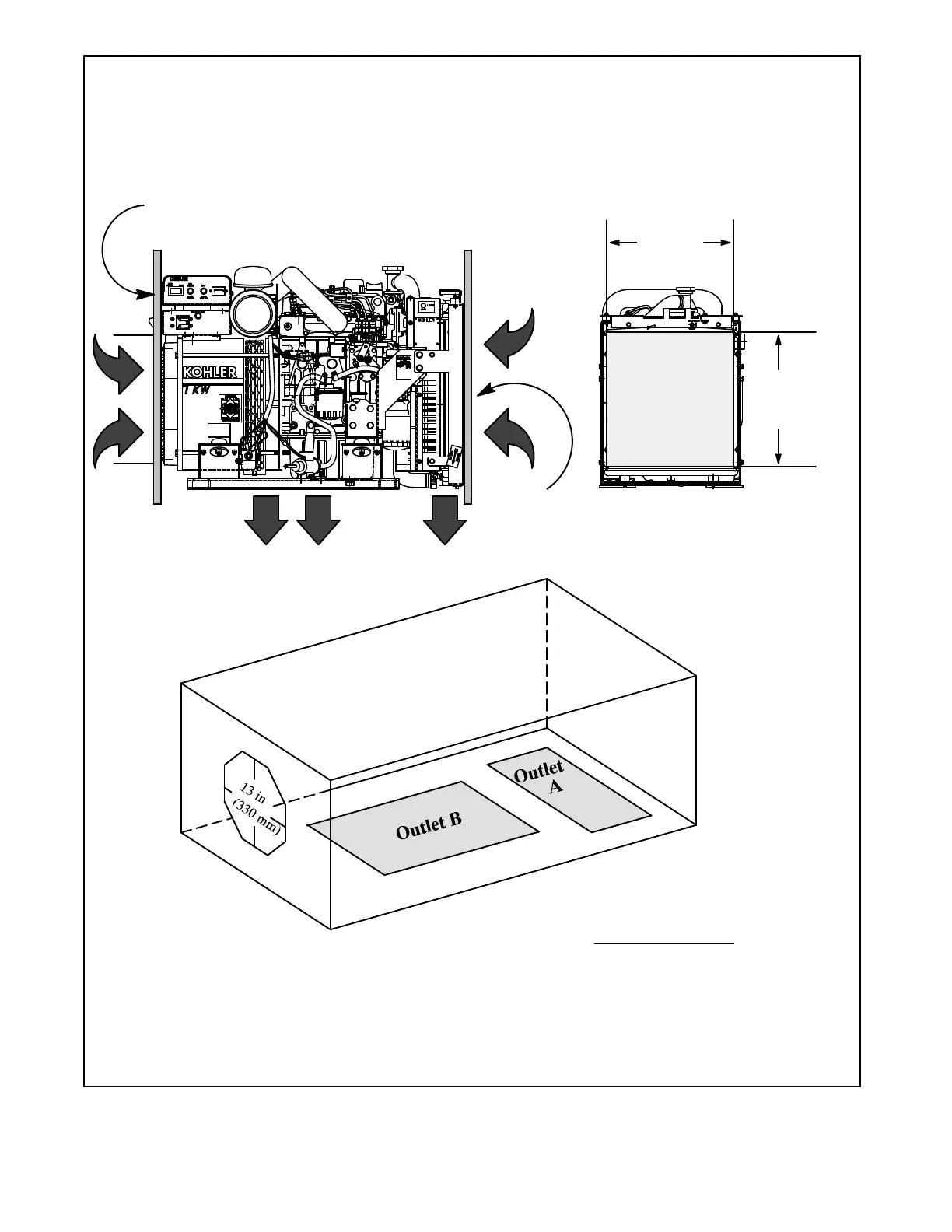

Figure 6-9. Inline-Radiator Model Air-Flow Requirements with Suction Fan
