TP-5867 11/02 69Section 8 Disassembly/Reassembly
9. Reinstall the enclosure panels. See Figure 8-17 or
Figure 8-18.
a. Install the non-service side housing panel.
b. Install the alternator end housing panel.
c. Install the generator set housing roof.
d. Reinstall the generator set housing service side
door.
A-358000C-B
1
2
3
4
5
R
POWER SYSTEM
1. Housing roof
2. Service side door
3. Battery compartment panel
4. Mounting pad
5. Alternator end housing panel

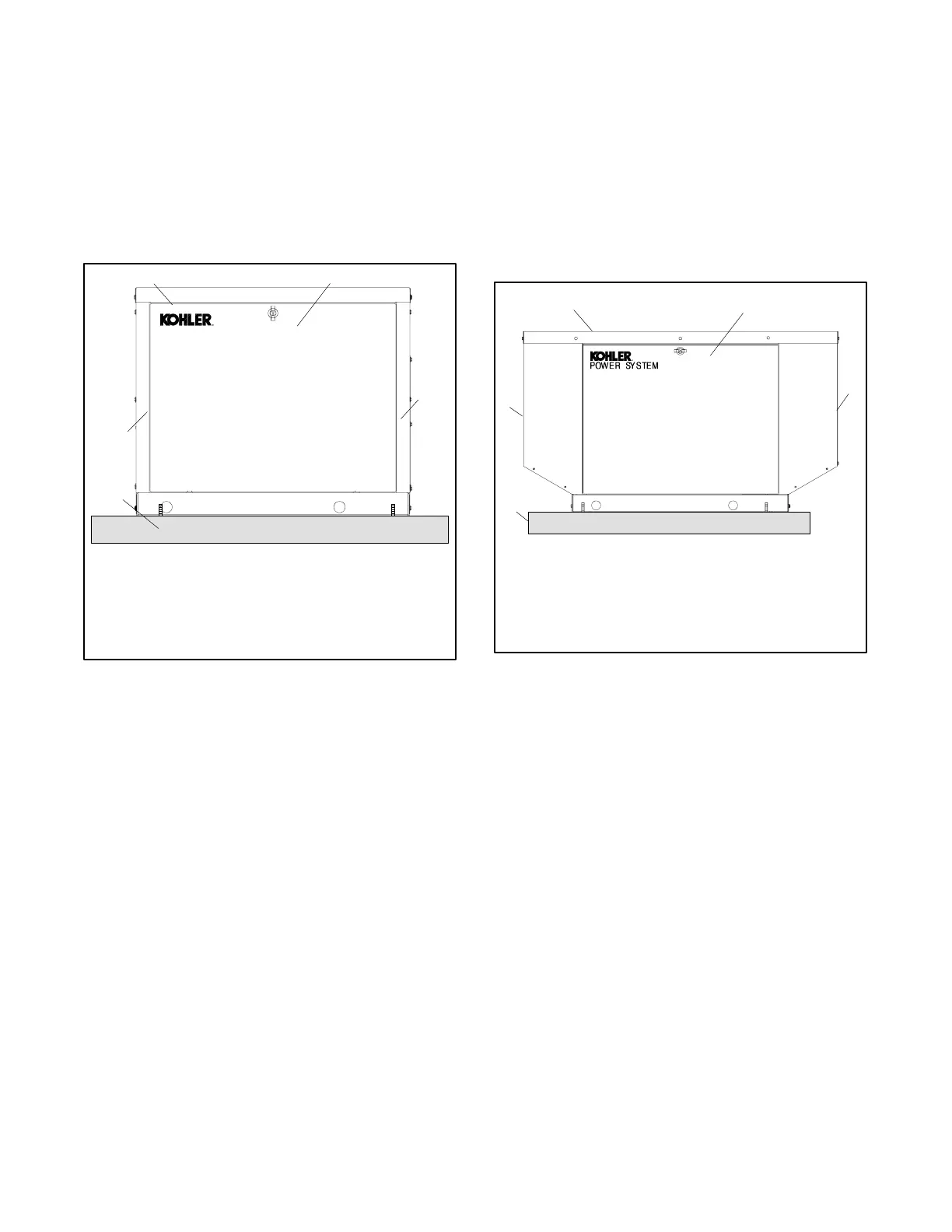

Figure 8-17 Generator Set Weather Housing
10. Return the generator set to operation.
a. Check that the generator set master switch is in
the OFF position.
b. Reconnect the generator set engine starting
battery, negative (--) lead last.
c. Reconnect power to the battery charger, if
equipped.
d. Turn on the fuel supply and check for leaks.
P-358000C-C
1
2
3
4
5
1. Housing roof
2. Service side door
3. Battery compartment panel
4. Mounting pad
5. Alternator end housing panel
Figure 8-18 Generator Set Sound Enclosure
