6.12.3 Fuel Conversio n, 20 kW Models
For LPG vapor fuel, an orifice is used in the fuel line. The
unit is typically shipped set up for natural gas, with the
loose orifice tied near the fuel solenoid valve. To convert
to LPG vapor, install the orifice as described below. See
Figure 6-26 for the fuel system component locations.
For controllers with firmware version 4.5 or higher, use
SiteTech software to change the fuel type setting in the
Genset System group. The fuel type setting is important
if a Load Control Module (LCM) or load shed kit is
connected to the generator controller.
Note: The generator set harness may contain a pair of
leads labelled 65 and N near the fuel solenoid
valve. These leads are used on the
14RESA/RESAL generator sets. Connecting or
disconnecting these leads has no effect on the
operation of 2 0 kW generator sets.
1. LPG orifice
2. Hose fitting
3. Regulator
4. Fuel inlet, 1/2 in. NPT female
GM84143
4
3
1
Note: LPG setup
shown
2

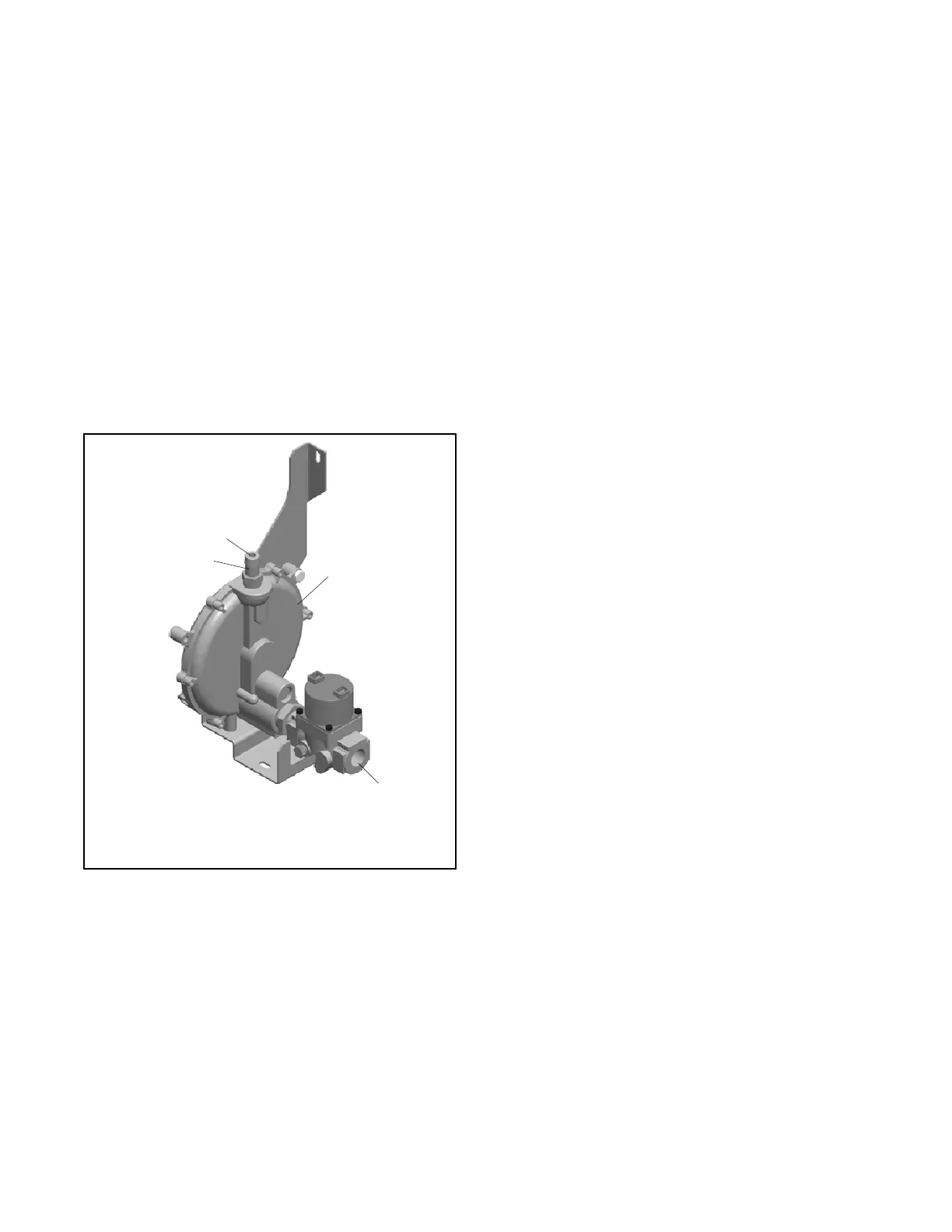

Figure 6-37 Fuel Regulator and LPG Orifice, 20 kW
Models
Procedure to Convert from NG to LPG, 20 kW
Models
1. Press the OFF button on the generator set
controller.
2. Disconnect the utility power to the generator set.
3. Disconnect the generator set engine starting
battery, negative (--) lead first.
4. Turn off the fuel supply.
5. Remove the hose clamp and fuel hose from the
hose fitting. See Figure 6-37.
6. Insert the orifice into the hose fitting. See
Figure 6-37.
7. Slide the hose onto the hose fitting and secure it
with the clamp.
8. Connect and turn on the new fuel supply.
9. Reconnect the generator set engine starting
battery leads, negative (--) lead last.
10. Reconnect utility power to the generator set.
11. Start the generator set by pressing the RUN button
on the generator set controller.
12. Check for leaks using a gas leak detector.
13. Press the OFF button to shut down the generator
set.
14. For controllers with firmware version 4.5 or higher,
use SiteTech software to change the fuel type
setting on the controller.
To convert from LPG vapor to natural gas, remove the
fuel orifice.
