Kohler 14RESA

TP-6805 8/15142 Section 7 Disassembly/Reassembly
GM81036
1. Thermal cover
2. Screw
3. Lock nut
1
3
3
2
2
REAR HINGE BRACKET VIEW
FRONT HINGE BRACKET VIEW
SEE FRONT HINGE
BRACKET VIEW
SEE REAR HINGE
BRACKET VIEW

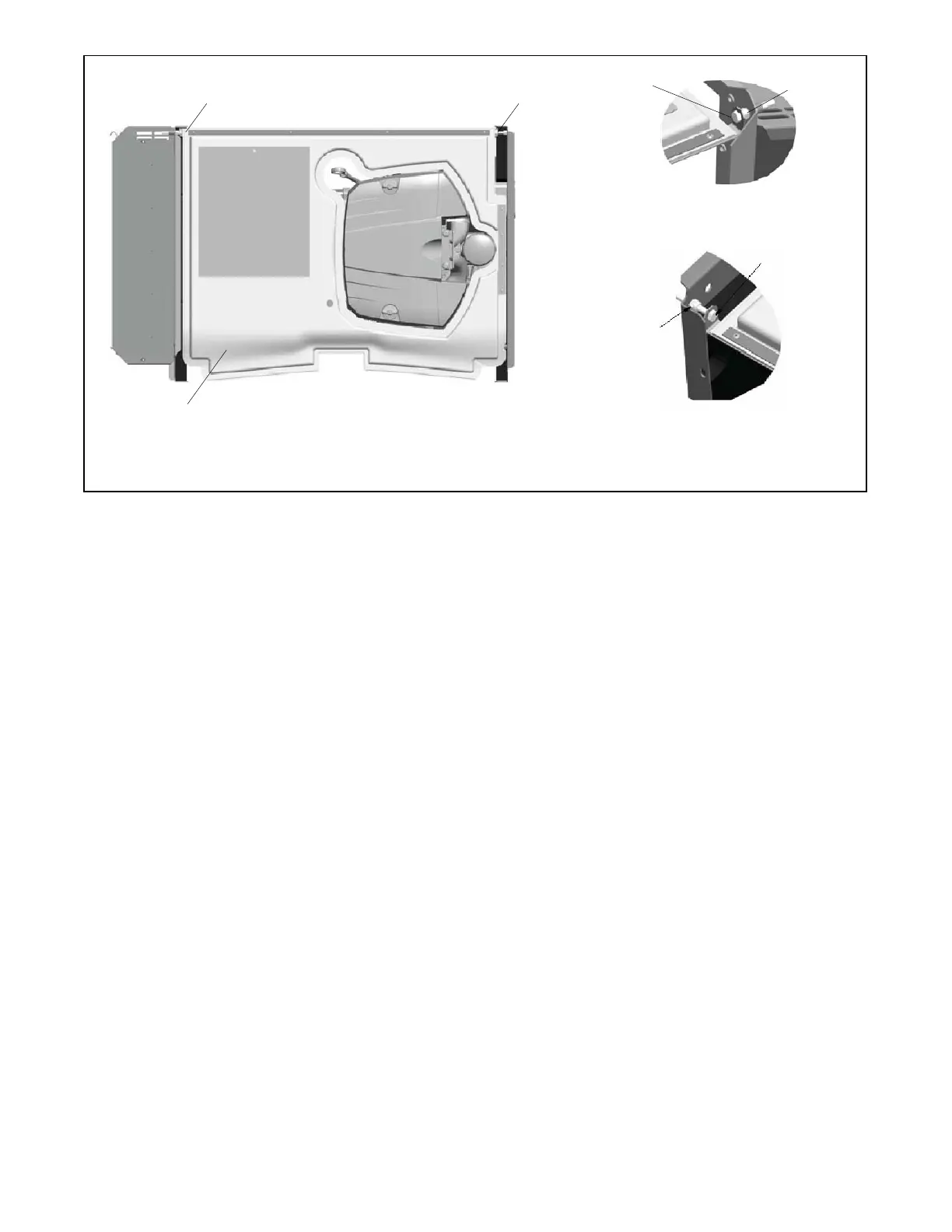

Figure 7-37 Thermal Cover
