Remote Single Connection

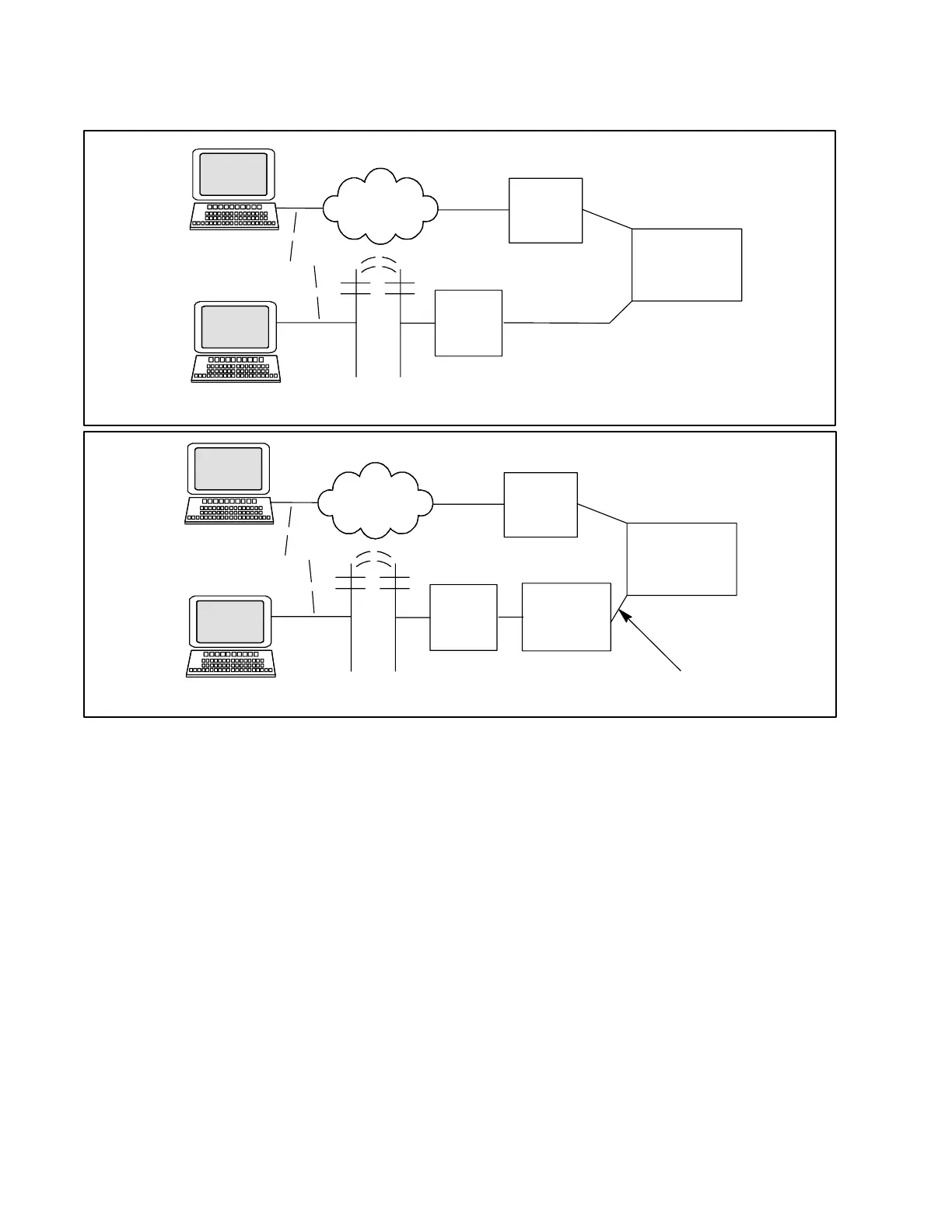

A modem connects a PC to a single device. The PC communicates with the device via telephone line or an Ethernet network.
See Figure 29.
Figure 29 Remote Single Connection
Ethernet
Network
Modbus
®/
Ethernet
Network
Generator Set
Controller or
Transfer Switch
Control
Remote
Network
(Modem)
Personal Computer
with NIC
Personal Computer
Telephone lines
OR
Personal Computer
with NIC
Ethernet
Network
OR
Modbus
®/
Ethernet
Network
Generator Set
Controller or
Transfer Switch
Control
Personal Computer
Telephone lines
Remote
Network
(Modem)
RS-232 to
RS-485 Port
Converter
RS-485 up to 1220 m (4000 ft.)
