TP-7045 3/18c 45Section 7 Installation Drawings
ADV-8857B-B
NOTE: Dimensions are shown in mm [in.].

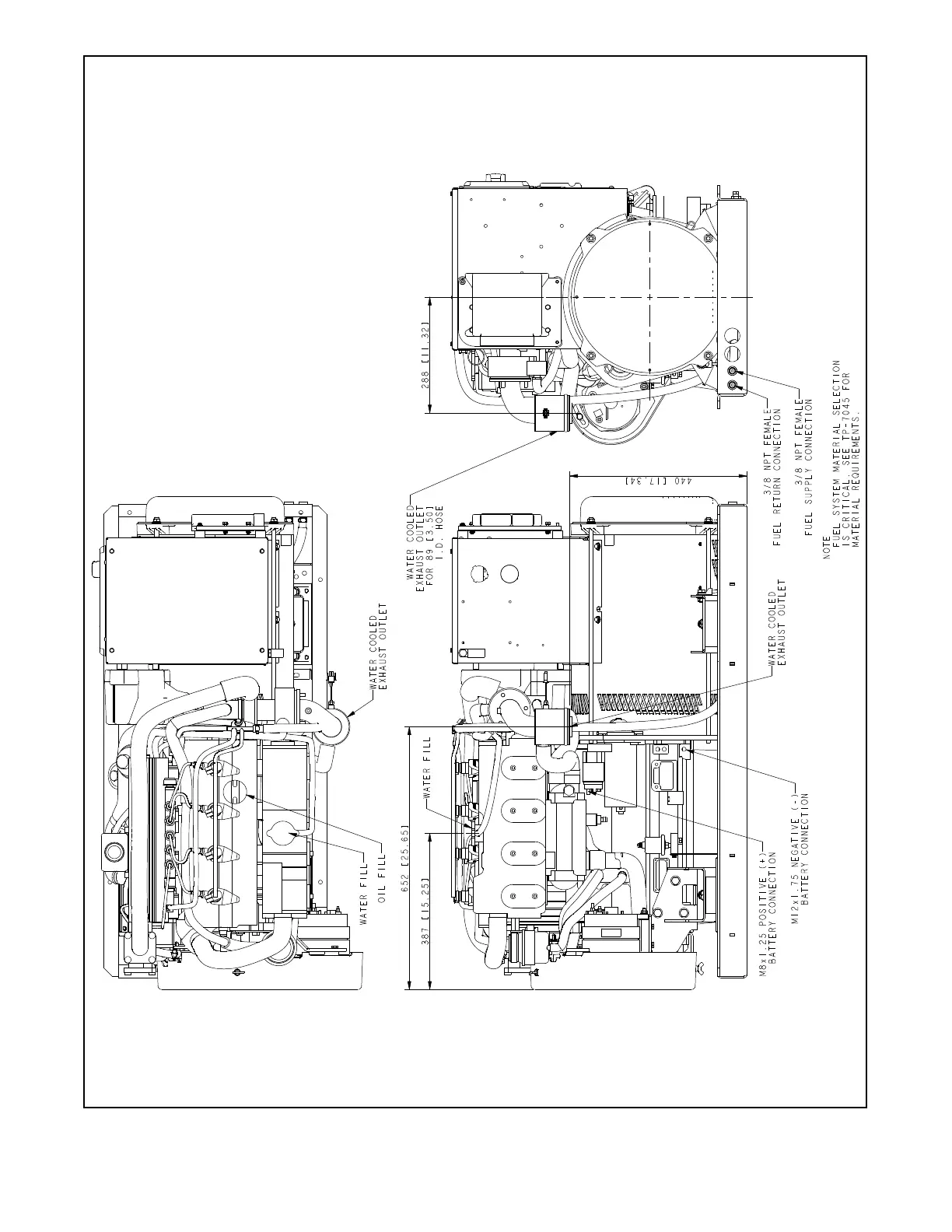

Figure 7-11 Dimension Drawing, 32/40EKOZD and 28/35EFKOZD (Sheet 2 of 2)
