243Section 13 Generator Management InformationTP-6953 7/19

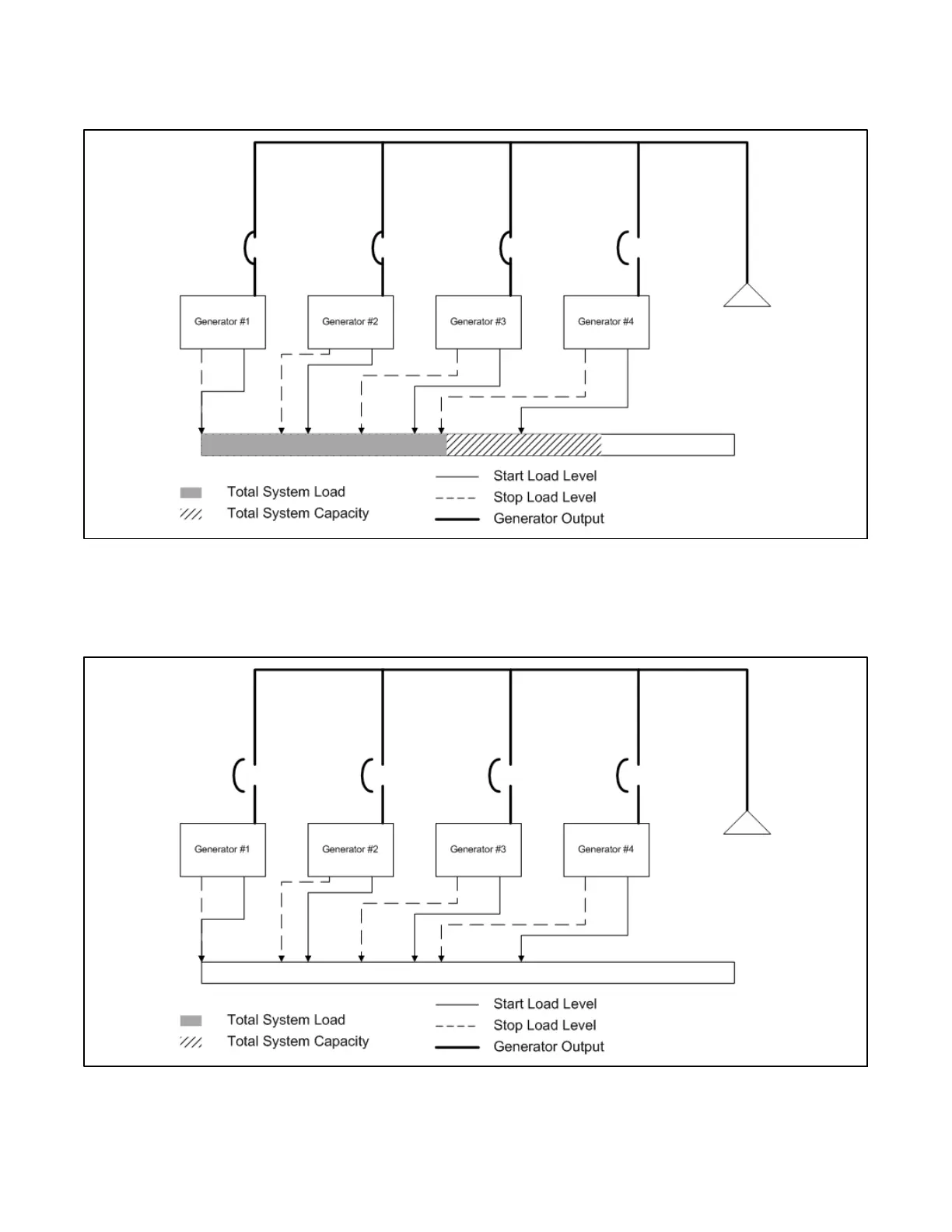

In Figure 13-8, the load increases well past the start kW
for Generator 3, causing the generator to start,
synchronize, and connect to the bus.
Figure 13 -8 Generator3RestartsDuetoIncreaseinLoad
When the Start signal goes away, all generators
disconnect from the paralleling bus and stop (see
Figure 13-9).
Figure 13 -9 Paralleling Generator System has Returned to Standby State
