TP-6953 7/19 53Section 2 Operation
Changes after 3 seconds
DIAL TURN
Alternates
every
8 seconds
DIAL CLICK
DIAL PUSH at METERING. Go to Figure 2-13.
DIAL PUSH at GENERATOR INFO. Go to Figure 2-14.
DIAL PUSH at CONTROLLER CONFIG. Go to Figure 2-15.
DIAL PUSH at I/O. Go to Figure 2-16.
Alternates
every
8 seconds
From Controller Power-Up From Controller Sleep/Idle Operation
METERING
GENERATOR INFO
CONTROLLER CONFIG
I/O
ACTIVE EVENTS
F

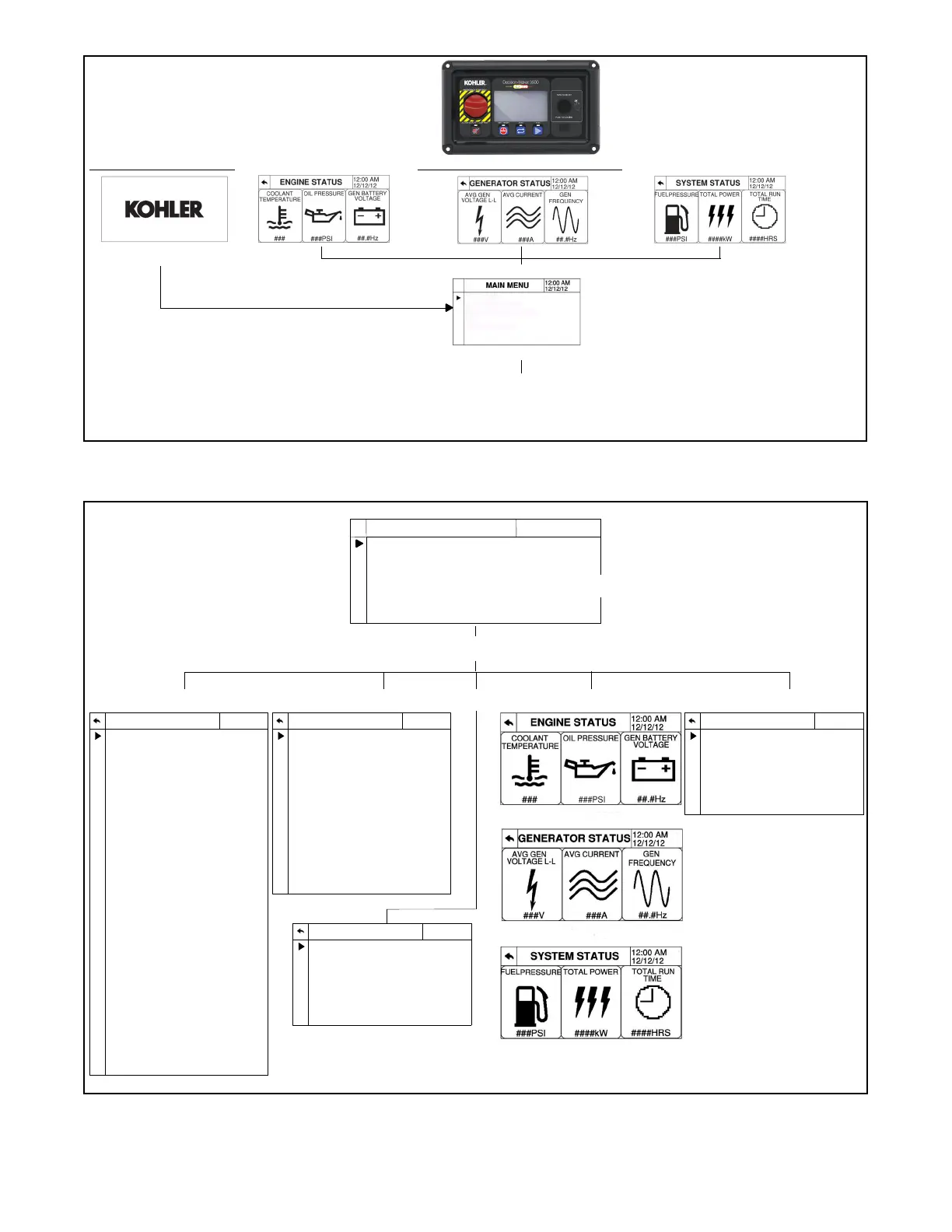

Figure 2 -12 Decision-Maker 3500 Controller I nformation Menu Structure
12/12/12
12:00 AM
GENERATOR METERING
ENGINE METERING
BATTERY CHARGER METERING - - >
OVERVIEW
PARALLELING METERING
METERING
DIAL TURN
DIAL PUSH DIAL PUSH DIAL PUSHDIAL PUSH
Alternates every
8 seconds
Alternates every
8 seconds
L1-L2 VOLTS: ###V
L2-L3 VOLTS: ###V
L3-L1 VOLTS: ###V
AVG GEN VOLTAGE L-L: ###V
GEN FREQUENCY: ##.#Hz
L1-L0 VOLTS: ###V
L2-L0 VOLTS: ###V
L3-L0 VOLTS: ###V
AVG GEN VOLTAGE L-N: ###V
GEN FREQUENCY: ##.#Hz
L1 CURRENT: ###A
L2 CURRENT: ###A
L3 CURRENT: ###A
AVG CURRENT: ###A
GEN FREQUENCY: ##.#Hz
L1 POWER: ####W
L2 POWER: ####W
L3 POWER: ####W
TOTAL POWER: ####.#kW
GEN % OF RATED kW: ###%
L1 REACTIVE POWER: ####VAR
L2 REACTIVE POWER: ####VAR
L3 REACTIVE POWER: ####VAR
TOTAL REACTIVE POWER: ####VAR
L1 APPARENT POWER: ####VA
L2 APPARENT POWER: ####VA
L3 APPARENT POWER: ####VA
TOTAL APPARENT POWER: ####VA
GEN % OF RATED kVA: ###%
L1 PF: #.##
L2 PF: #.##
L3 PF: #.##
TOTAL PF: #.##
GEN PHASE ROTATION: ###
ENGINE SPEED: ####RPM
ECM BATTERY VOLTAGE: ##.#VDC
GEN BATTERY VOLTAGE: ##.#VDC
GENSET CONTROLLER TEMP:###_F
OIL PRESSURE: ###PSI
OIL TEMPERATURE: ###_F
COOLANT TEMPERATURE: ###_F
COOLANT PRESSURE: ###PSI
FUEL LEVEL: ###%
FUEL PRESSURE: ###PSI
FUEL TEMPERATURE: ###_F
FUEL RATE: ###GAL/h
FUEL USED LAST RUN: ###GAL
CRANKCASE PRESSURE: ###PSI
INTAKE AIR PRESSURE: ###PSI
INTAKE AIR TEMPERATURE: ###_F
CONNECTED TO BUS: TRUE/FALSE
AVG BUS VOLTAGE L-L: ###.#V
AVG GEN VOLTAGE L-L: ###.#V
BUS FREQUENCY: ##.##Hz
GEN FREQUENCY: ##.##Hz
BUS TOTAL POWER: #####.#kW
BUS % OF RATED kW: ###%
BUS % OF RATED kVAR: ###%
F
DIAL PUSH
STATUS:
OUTPUT VOLTAGE: ##.#VDC
OUTPUT CURRENT: ##.#A
CHARGER STATE:
CHARGER TEMP: ###_F
REDUCED OUTPUT ACTIVE: YES/NO
TEMP COMPENSA TION ACTIVE: YES/NO
SOFTWARE VERSION: ###########
BATTERY X METER
12:00 AM
12/12/12
PARALLEL METERING
12:00 AM
12/12/12
GENERATOR METER
12:00 AM
12/12/12
ENGINE METERING
12:00 AM
12/12/12
Note: Battery Charger Metering menu options appear but do not apply
to these models.
Figure 2 -13 Metering Menu
