8 TT-1596 8/22
12. Mount two circuit breakers onto the bracket.
For the 14RESA and 14RCA, 70 amp circuit breakers:
a. Use 4 X-67-132 thread-forming screws and 4
X-400-145 spacers for each circuit breaker.
Install the spacers between the circuit breaker
mounting tabs and the bracket. See Figure 10.
b. Connect the circuit breakers to the APM
contactors using 4 leads LN-0607-3131
provided with the circuit breaker kit. See
Figure 9 and the wiring diagram in Section 8 for
circuit breaker connections.
1
tt1596
1. Mounting bracket GM85151
2. Spacer X-400-145, qty. 8. Locate spacer between circuit
breaker mounting tab and bracket as shown.
3. Screw X-67-132, qty. 8
4. Circuit breaker, 70 Amp, GM75545, qty. 2
32 4

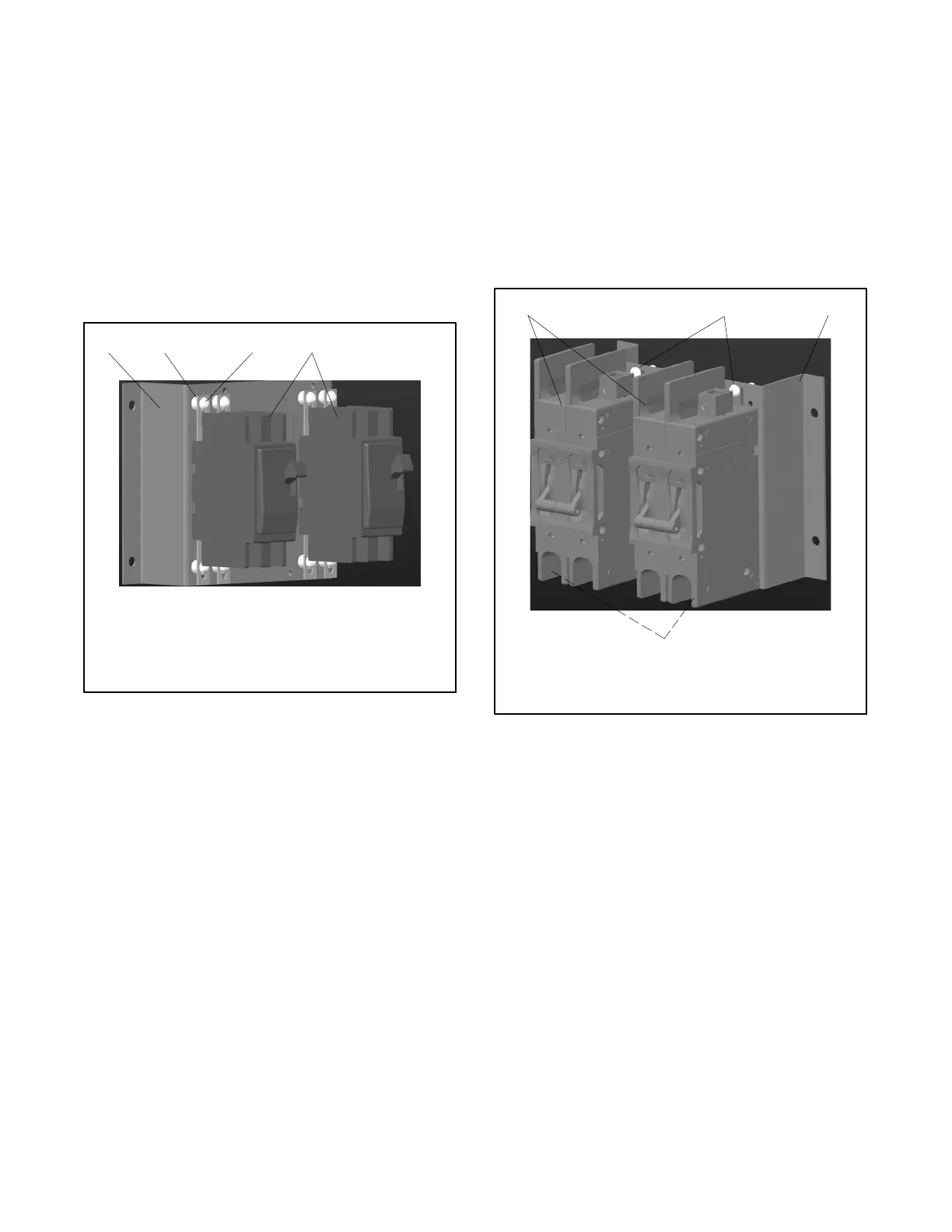

Figure 10 70 Amp Circuit Breaker Mounting, 14RESA
and 14RCA
For the 20RESA/B/C/D and 20RCA, 100 amp circuit
breakers:
c. Use 2 X-67-132 thread-forming screws to
attach each circuit breaker to the mounting
bracket. See Figure 11.
d. Connect the circuit breakers to the APM
contactors using 4 leads LN-0407-3131
provided with the circuit breaker kit. See
Figure 9 and the wiring diagram in Section 8 for
circuit breaker connections.
1
tt1596
1. Circuit breaker, 100 amp, GM77390, qty. 2
2. Screw X-67-132, qty. 4 (bottom screws are not shown)
3. Mounting bracket GM85151
2 3
2
Figure 11 100 Amp Circuit Breaker Mounting,
20RESA/B/C/D and 20RCA
