TP-6805 8/1516 Section 1 Specifications
23
21
25
1
11
13
20
24
ADV-8754
15
14
26
1. Hinged inner cover
2. Oil check (dipstick)
3. 120 VAC receptacle for optional carburetor heater
4. Governor assembly (below air cleaner)
5. Spark plugs
6. Lifting holes
7. Thermostat
8. Exhaust outlet
9. Key, provided with generator set
10. Lock
11. Muffler
12. Oil fill
13. Air cleaner
14. Oil filter
15. Line circuit breaker
16. USB connector (for firmware updates)
17. RDC2 or DC2 controller
18. Starter relay (below controller)
19. Mini-breaker (alternator protection)
20. Field-connection terminal block (behind panel)
21. Fuel orifice location (inside hose fitting)
22. Ignition timing leads
23. Fuel inlet
24. Fuel solenoid valve
25. Fuel regulator assembly
26. Engine starting battery location (battery purchased separately)
27. Oil drain hose
28. Oil drain valve
29. Nameplate location
30. Alternator
27
17
28
16
8
6
2
30
5
18
ENCLOSURE PANELS AND ROOF
REMOVED TO SHOW DETAIL
22
4
7
19
29
12
9
3
10
NO SCALE

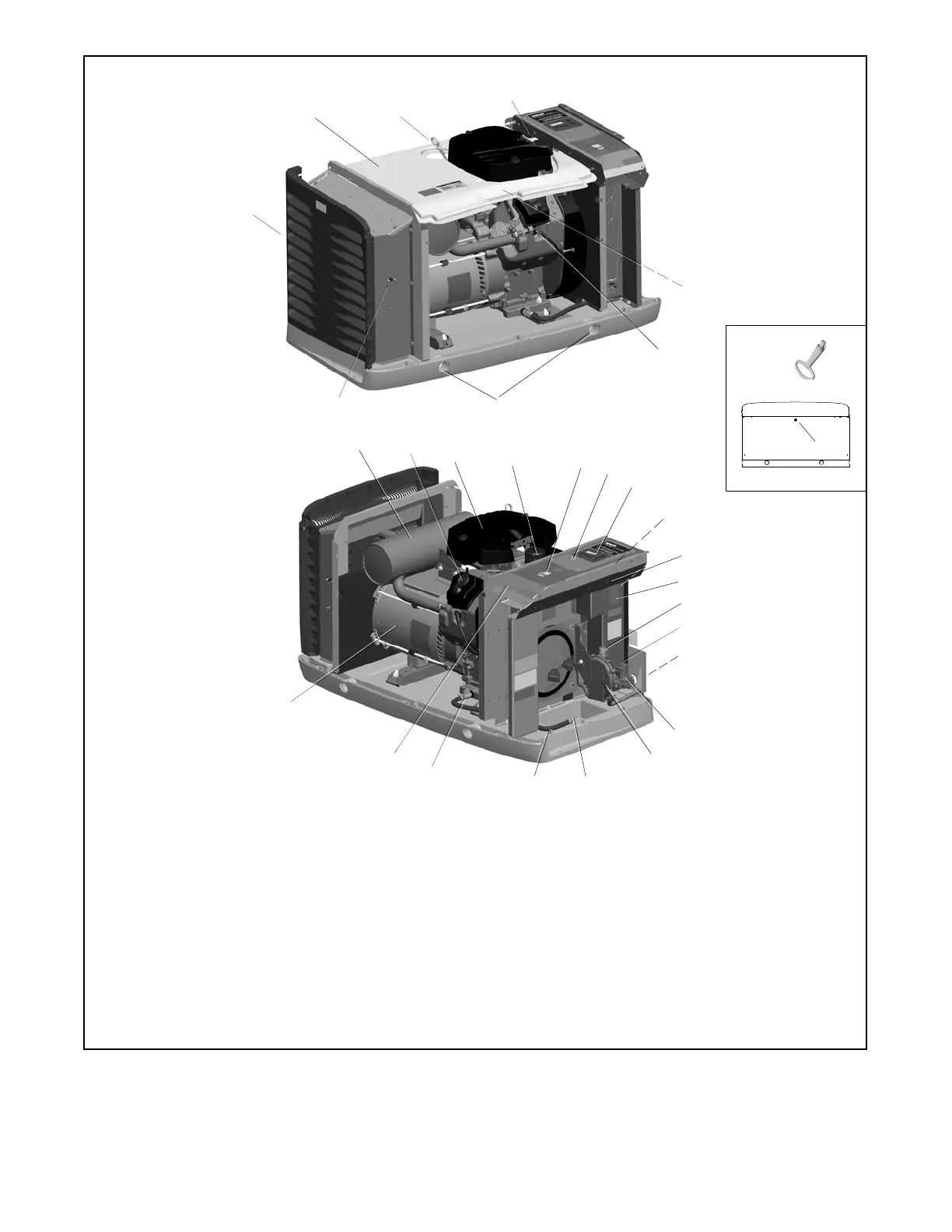

Figure 1-2 Service Views, 20RESC(L)
