TP-6805 8/1554 Section 4 Controller
1
1. Controller
2. Controller mounting screws (qty. 2)
2

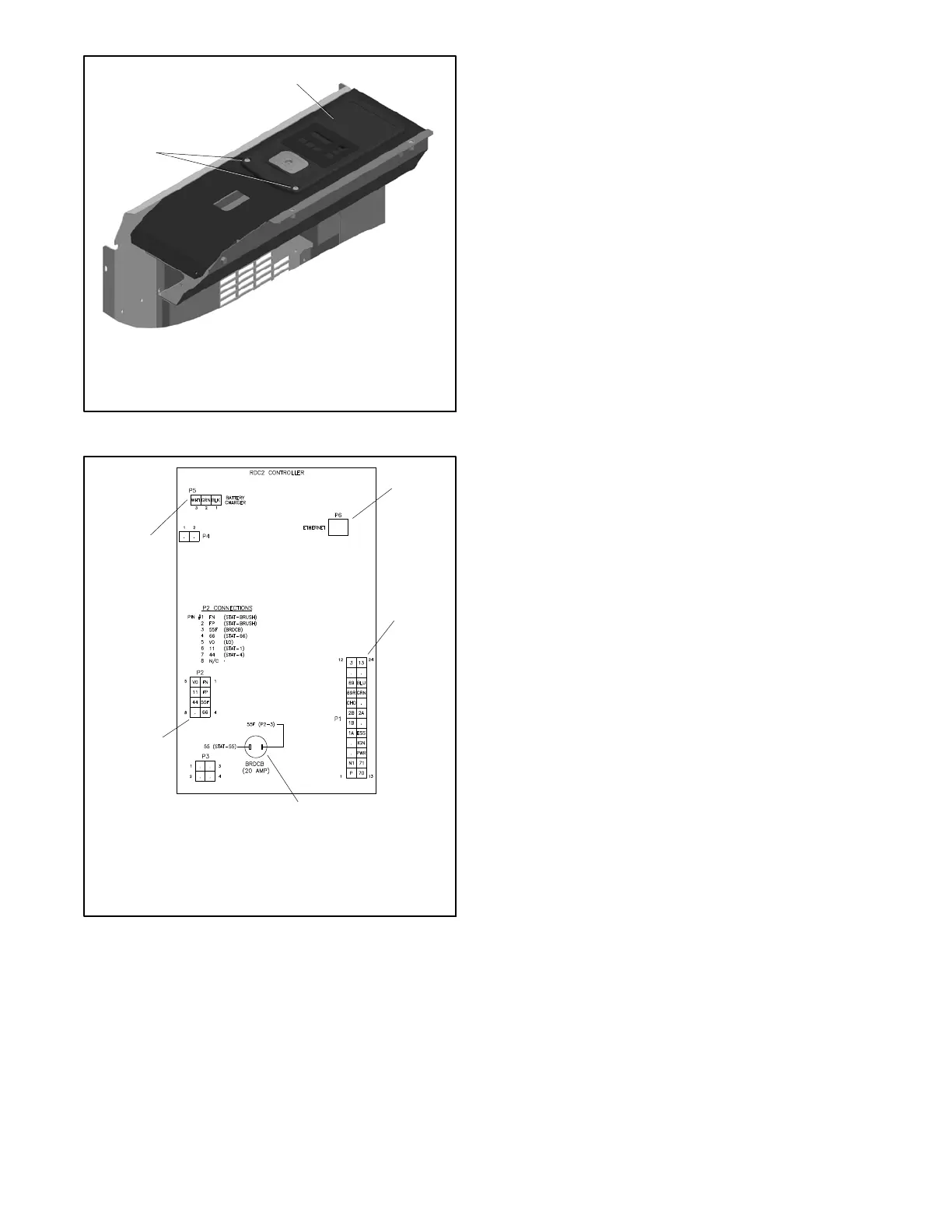

Figure 4-10 Controller Mounting (14/20RESA shown)
1. P6 Ethernet connection
for OnCue Plus
2. P1
3. Field circuit breaker*
4. P2
5. P5
2
1
4
5
3*
* Generators with revised controllers have the mini-breaker
located elsewhere on the generator set.
Figure 4-11 Controller Connections
8. If an original (green board) controller is being
replaced with an original controller, OR if a revised
(red board) controller is being replaced with a
revised controller, go to step 10.
9. If an original (green board) controller is being
replaced with a revised (red board) controller,
install the new relay (with fuse) and mini circuit
breaker provided in kit GM95104.
a. Use the hardware provided in the relay kit to
install the new run relay in the trough under the
controller, near the existing relay. See
Figure 4-12.
b. Install fuse P22, which connects to the relay
adapter harness, near the new relay. Make
sure that the fuse is located close enough to the
relay for the lead lengths in the harness.
c. Connect the relay adapter harness to P1 on the
controller. Connect the other end to the 24-pin
connector on the engine harness. Connect the
adpater harness to the relay and the fuse.
d. Leads 55 and 55F were disconnected from the
mini circuit breaker on the old controller.
Connect leads 55 and 55F to the new mini
circuit breaker assembly.
e. Use a cable tie to secure the mini circuit breaker
to the harness a s shown in Figure 4-13.
f. Proceed to step 10.
10. Reconnect all harnesses to the new controller
assembly.
11. Install the controller onto the junction box using the
two (2) screws removed in step 5.
12. Reconnect the engine starting battery, negative (--)
lead last.
13. Reconnect the utility power to the generator set by
closing the circuit breaker in the distribution panel.
14. The controller will prompt you to set the date and
time, and then to set the exerciser. See the
generator set Operation Manual for instructions, if
necessary.
