TP-6905 9/21 41Section 3 RDC2 Controller Operation
3.14 ATS Status Menu
ATS menus appear if a Model RXT transfer switch is
connected to the generator set. If no transfer switch is
connected, or another model ATS is connected to the
engine start connections, Remote ATS is displayed on
the ATS Status screen.
The ATS Status menu displays Model RXT transfer
switch and source information.
The voltage shown in these menus can be calibrated.
Contact an authorized dealer for service if calibration is
required.
tp6810
Frequency:
60.0 Hz
Voltage L1- L2:
240 V
Voltage L2- L3:
240 V
Voltage L3- L1:
240 V
ATS - - >
Status
Voltage:
240V
Frequency:
60.0 Hz
ATS Position:
Normal
Normal Status:
Not/Acceptable
Emerg. Status:
Standby
Three-phase
Single-phase
Reset
Calibration
<- - Return
Reset
Calib? No
Reset
Calib? Yes
Note: If there is no Model RXT transfer
switch connected to the generator set,
Remote ATS is displayed and the other
screens on this page do not appear.

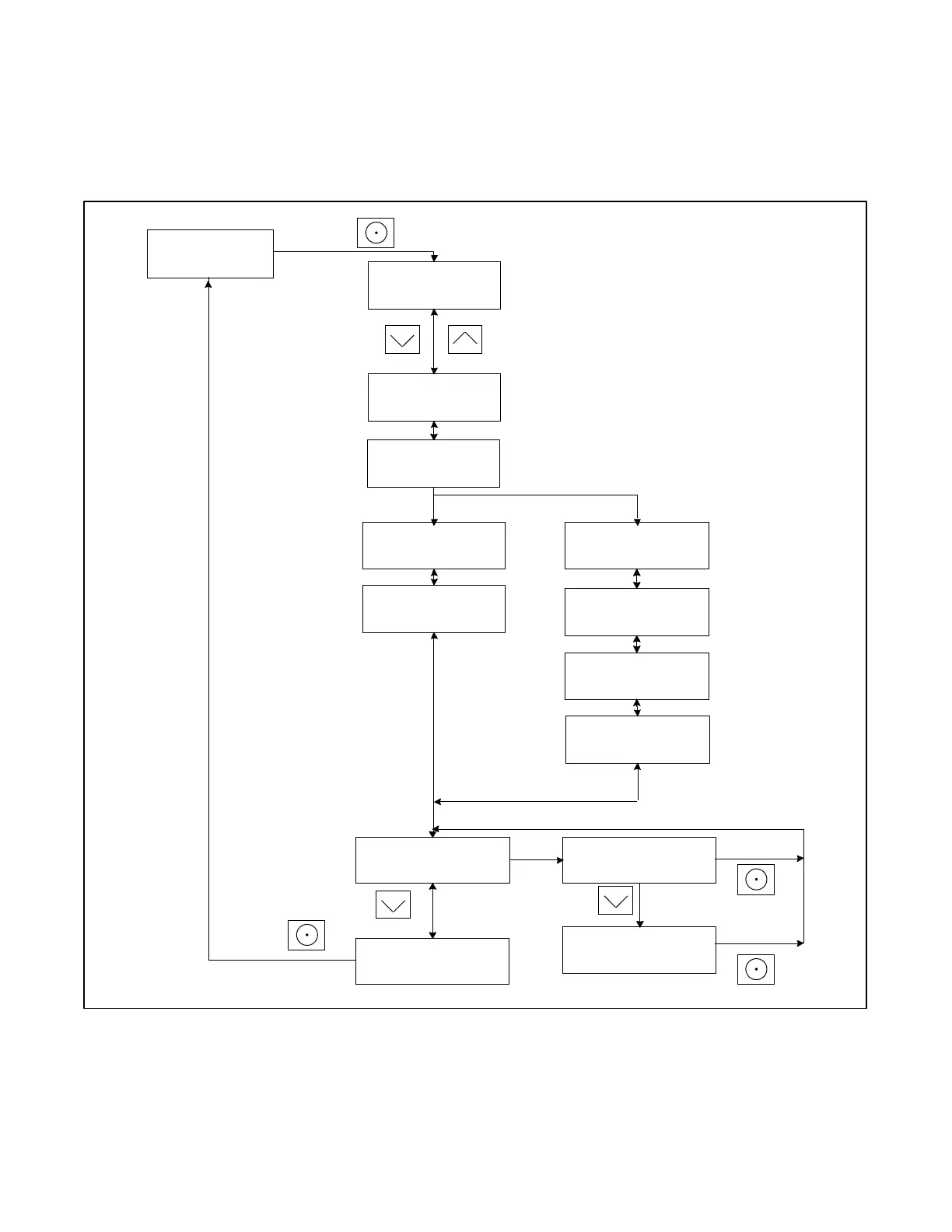

Figure 3-14 ATS Status Menu, with Calibration
