TP-6197 3/06 13Section 1 Service Views
Section 1 Service Views
3
22
29
21
12
16
26
18
25
28
41
GM39949D-G
19
SERVICE-SIDE VIEW
2
8
17
9
7
NONSERVICE-SIDE VIEW
13
27
6
5
101114
20
24
1. Air cleaner
2. Oil check
3. Oil fill (on valve cover)
4. Fuel/air mixer
5. Pressure cap (Engine water fill)
6. Radiator
7. Belt guard
8. Coolant overflow tube
9. Coolant overflow bottle (daily coolant check/fill location)
10. Secondary fuel regulator
11. Fuel solenoid valve (UL--listed models have 2 valves)
12. Oil drain valve
13. Positive (+) battery connection point
14. Fuel inlet
15. AC circuit breaker panel
16. Fuses F1--F3
17. Generator set master switch
18. Advanced Digital Control, ADC 2100
19. Runtime hour display
20. Engine control module (ECM)
21. Nameplate
22. Spark plugs
23. Fuses F4--F7 (inside junction box)
24. Remote customer interface connector
25. Customer load lead access
26. Lube oil filter
27. Negative ( --) battery connection point
28. Coolant drain
29. Cooling air inlet
ADV-6916A-C
15
23

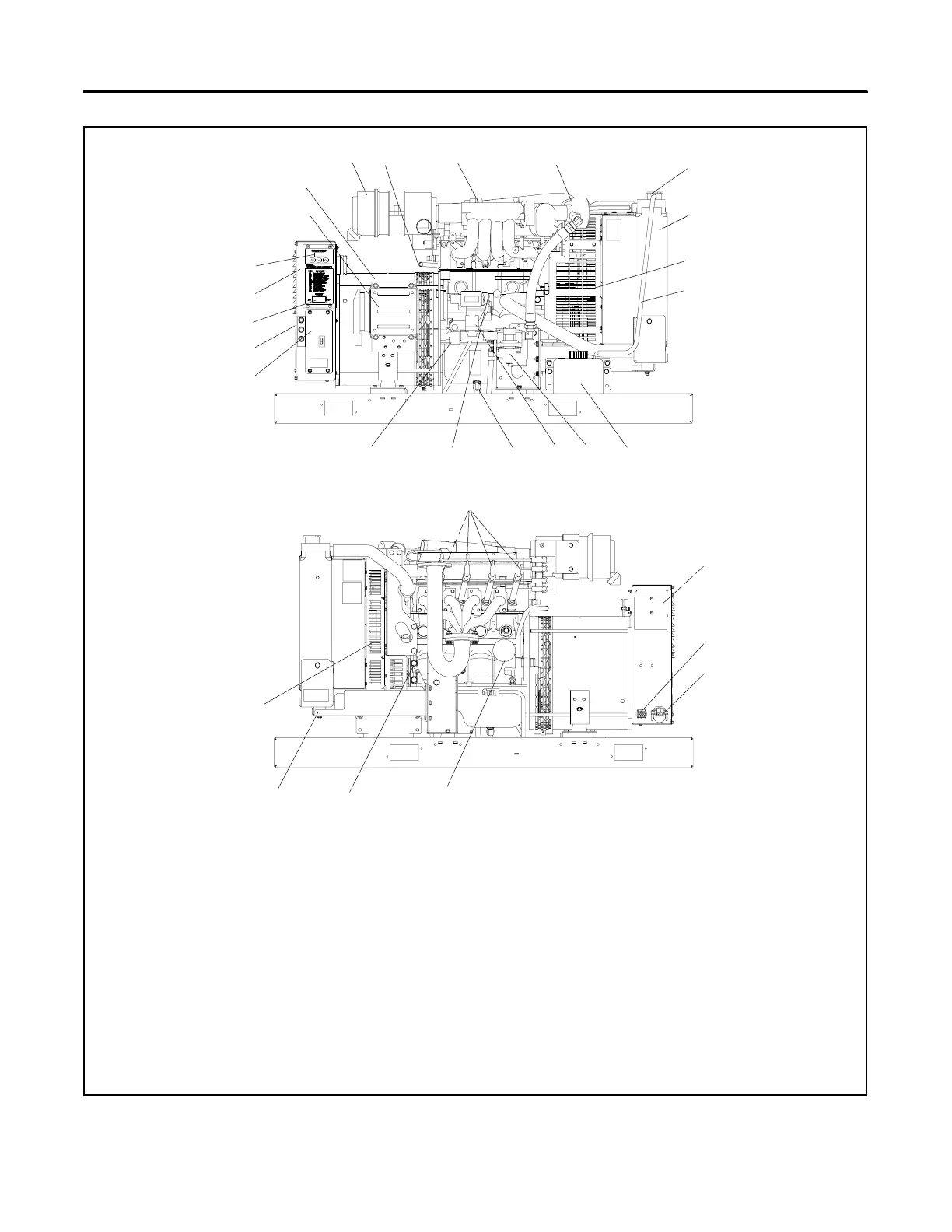

Figure 1-1 Service Views
