TP-7102 9/21 11Section 1 Service Views
Section 1 Service Views
1. Nameplate location
2. Engine ECM and EPR (electronic fuel pressure regulator)
3. Oil check (dipstick)
4. See cooling system detail
5. Exhaust outlet
6. Enclosure locking tool (shipping location only)
7. Spark plugs
8. Block heater connection valve
9. Block heater (optional)
10. Fuel inlet (1 in. NPT)
11. Fuel solenoid valve
12. Fuel conversion lead location
13. Oil fill location (on valve cover)
14. Customer load lead access
15. Customer connection access panel
16. Line circuit breaker
17. Generator set master control buttons (on RDC2 controller)
18. RDC2 controller
19. Air cleaner
20. Cooling air inlet (remove this panel to access coolant drain)
21. Access to coolant fill
22. Fan fuses
23. Battery
24. Oil drain valve
25. Lube oil filter
26. Block heater connection valve
27. Coolant drain
28. Fans (qty. 3)
29. Radiator
30. Pressure cap (engine coolant fill)
31. Coolant overflow tube
32. Coolant overflow bottle
ADV-8954
24
16
18
19
17
29
12 10
7
20
1
25
1415
42 3
13
23
GM103966
Cooling System Detail
28
28
31
30
27
32
7
5
22
8
26
9
21
6
SERVICE SIDE
NON-SERVICE SIDE
11

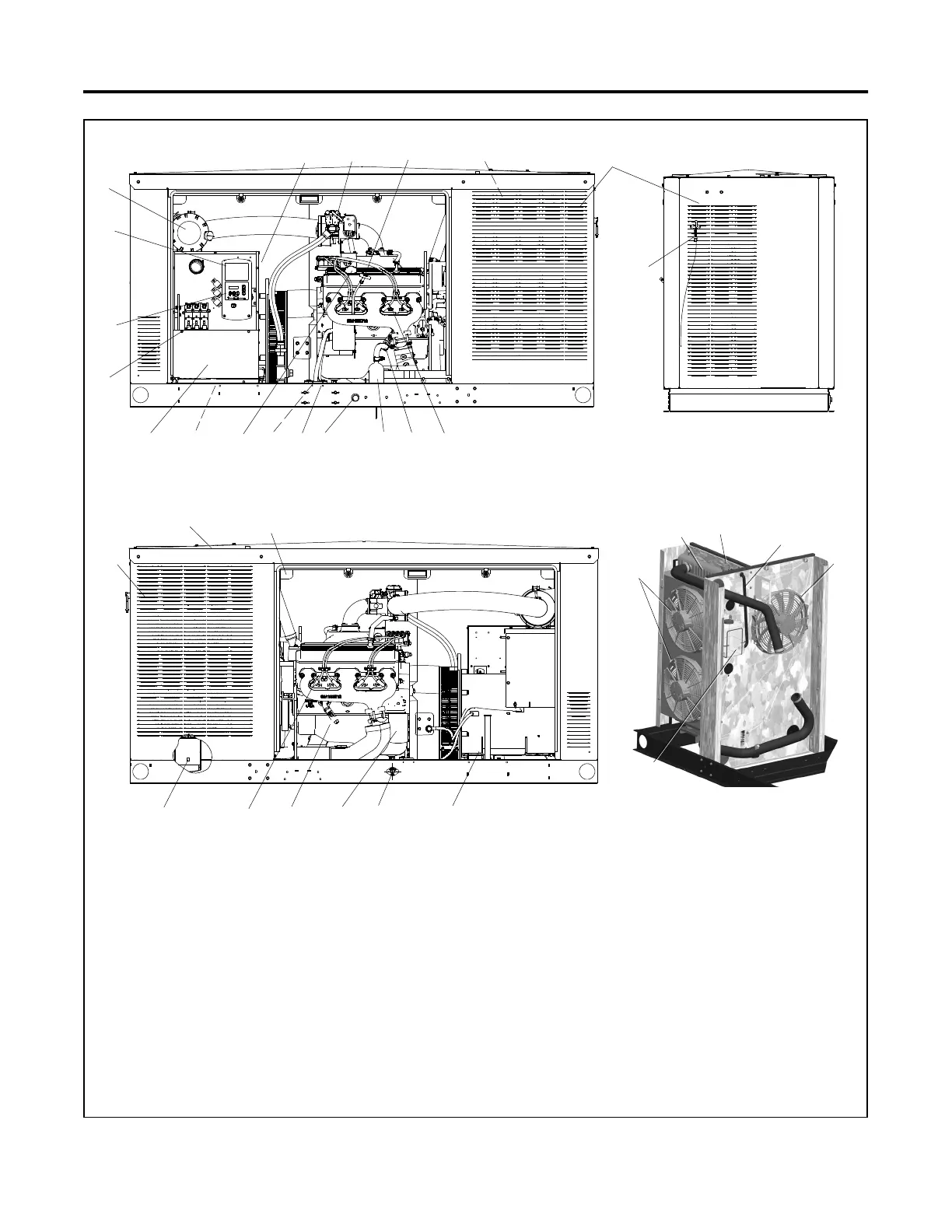

Figure 1-1 Service Views, 48RCLB and 60RCLA

Kohler 48RCLB/C Specifications

General

Brand	Kohler
Model	48RCLB/C
Category	Portable Generator
Language	English
