TP-7102 9/2112 Section 1 Service Views
1. Nameplate location
2. Engine ECM and EPR (electronic fuel pressure regulator)
3. Oil check (dipstick)
4. Fan fuses
5. See cooling system detail
6. Exhaust outlet
7. Enclosure locking tool (shipping location only)
8. Spark plugs
9. Block heater connection valve
10. Block heater (optional)
11. Fuel inlet (1 in. NPT)
12. Fuel solenoid valve
13. Fuel conversion lead location
14. Oil fill location (on valve cover)
15. Customer load lead access
16. Customer connection access panel
17. Line circuit breaker
18. Generator set master control buttons (on RDC2 controller)
19. RDC2 controller
20. Air cleaner
21. Cooling air inlet (remove this panel to access coolant drain)
22. Access to coolant fill
23. Battery
24. Oil drain valve
25. Lube oil filter
26. Block heater connection valve
27. Coolant drain
28. Fans (qty. 3)
29. Radiator
30. Pressure cap (engine coolant fill)
31. Coolant overflow tube
32. Coolant overflow bottle
ADV-9760
24
17
19
20
18
29
13
11
8
21
1
25
1516
52 3
14
23
GM116144
Cooling System Detail
28
28
31
30
27
32
8
6
4
9
26
10
22
7
SERVICE SIDE
NON-SERVICE SIDE
12

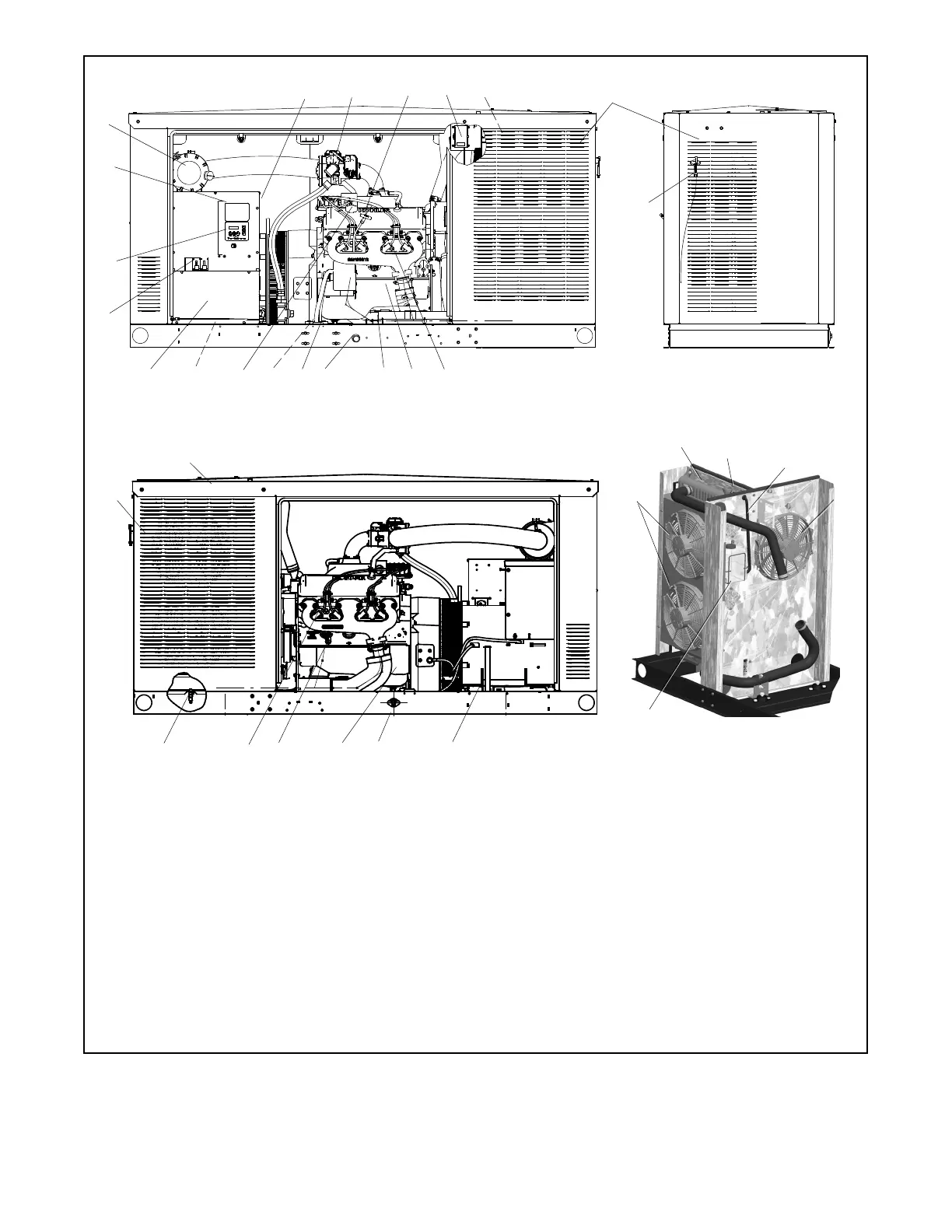

Figure 1-2 Service Views, 48RCLC and 60RCLB
