TP-6391 9/0844 Section 4 Controller
or
To set the engine data input type to Ed00.
See Figure 4-18.
To enter battery voltage selection mode.
or
To toggle between 12 and 24 VDC. Set this
parameter to 12 VDC.
To enter communications selection mode.
or
To set the communications parameter to
Cn00 or Cn01. See Figure 4-18.
To enter SAVE mode. Go to Figure 4-23.
E d 0 0
Pressing the up arrow key at the Adnc display (See Figure 4-21) puts you
into the Advanced Configuration Mode.
Press:
B t 1 2
C n 0 0
S A V E
Note: Be sure to save your settings before exiting the configuration mode. The controller reverts
to the last saved settings when the master switch is moved to the OFF/RESET position.

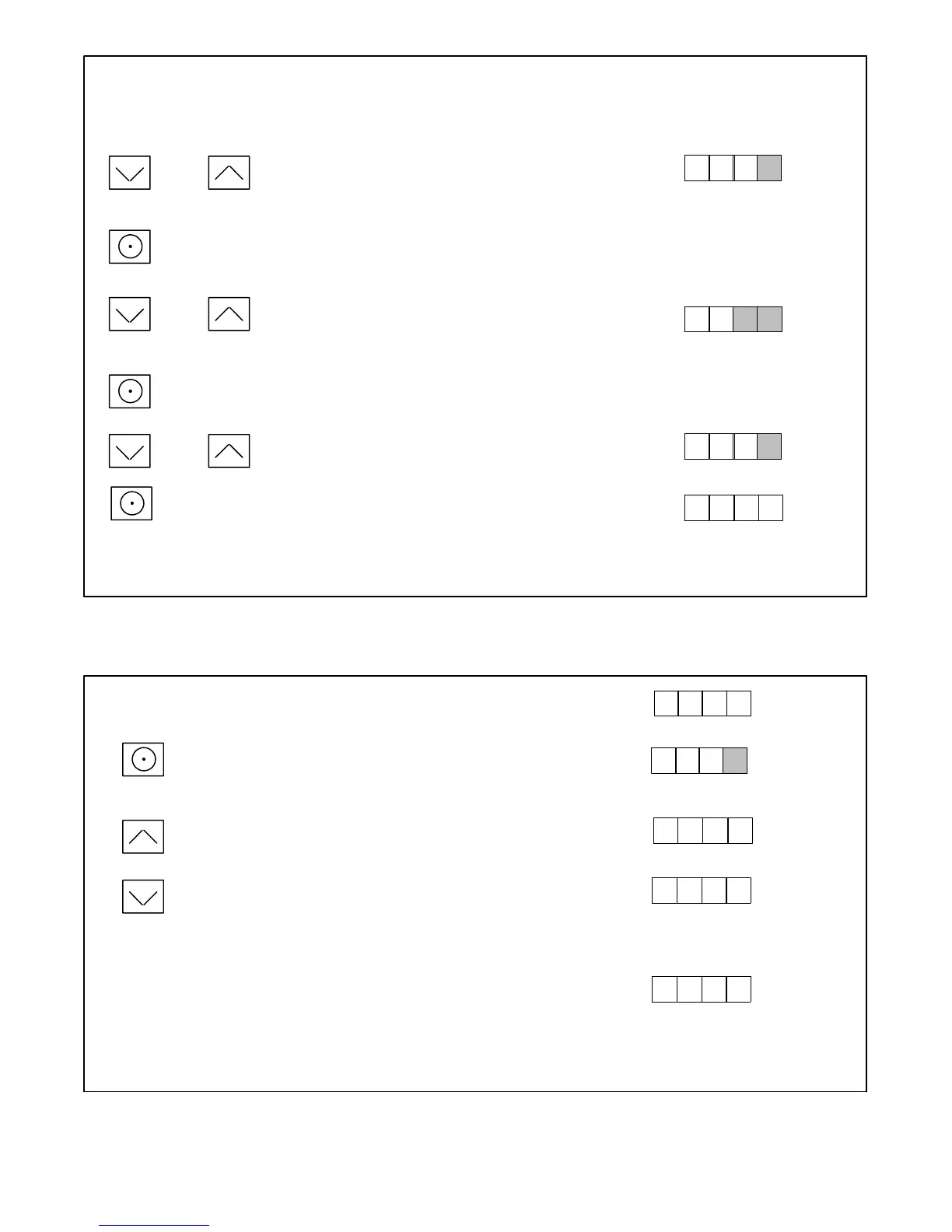

Figure 4-22 Advanced Configuration Mode (engine data input types, battery voltage, and engine
communications)
To save changes.
To discard changes without saving.
or
* “x” in the runtime hours display above denotes any number from 0 to 9.
S A V E
Y E S
Now move the master switch to OFF/RESET.
n o
There are 3 options when the display says SAVE:
Press:
x x xx
or
To return to the first parameter, system voltage/frequency
Uu, to check or change settings before saving. See
Figure 4-21.
U u 0 1
“Yes”or “no” flashes when the up or down arrow is pressed and then
the controller exits the configuration mode. The display returns to
the runtime hours.
Figure 4-23 Save Mode (after configuring generator set parameters)
