1.8.8 Optional Remote Engine Start Connection
A remote start switch can be connected to the generator set. Connect the engine start leads from a remote start switch to
terminals 3 and 4 on the terminal block. See Figure 18. Route the engine start leads through separate conduit from the AC
accessory power leads.

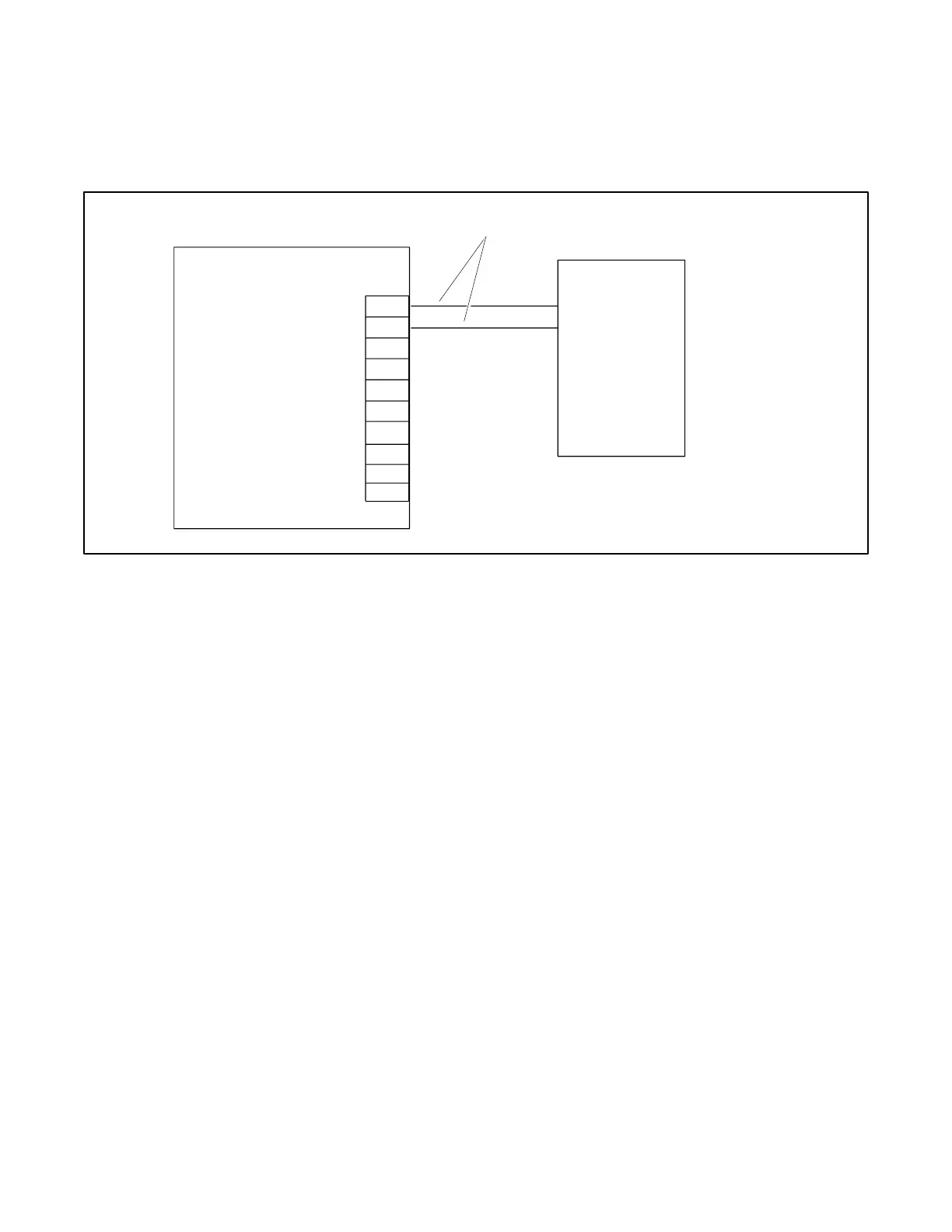

Figure 18 Optional Remote Engine Start Connections
Generator Set
Inverter
A
B
COM
PW R
3
4
1
1A
O PEN
O PEN
TB2
Remote engine start leads 3 and 4. Close the contact across 3 and 4 to start the
generator set. Open the contact to stop the generator set.
