TP-6068 10/02 21Section 3 Scheduled Maintenance
Waterline
4
5
6
16
7
8
9
10
11
12
13
14
15
18
17
3
2
1
TP-5586-3
1. Silencer vertical lift 1.2 m (4 ft.) max.
2. Exhaust mixer elbow distance above waterline. If less than
23 cm (9 in.), a siphon break is required.
3. Siphon break distance above waterline 30.5 cm (1 ft.) min.
4. Siphon break
5. Exhaust mixer elbow
6. Heat exchanger (locations vary by model)
7. Coolant recovery tank
8. Locate coolant recovery tank at the same height as the heat
exchanger
9. Seawater strainer
10. Seacock
11. Intake strainer
12. Engine-driven seawater pump
13. Exhaust hose pitch 1.3 cm per 30.5 cm (0.5 in. per ft.) min.
14. Water lock (optional)
15. Silencer distance from exhaust mixer elbow 3 m (10 ft.) max.
16. Silencer (customer s upplied)
17. Exhaust hose pitch 1.3 cm per 30.5 cm (0.5 in. per ft.) min.
18. Exhaust outlet distance above the waterline 10 cm (4 in.) min.

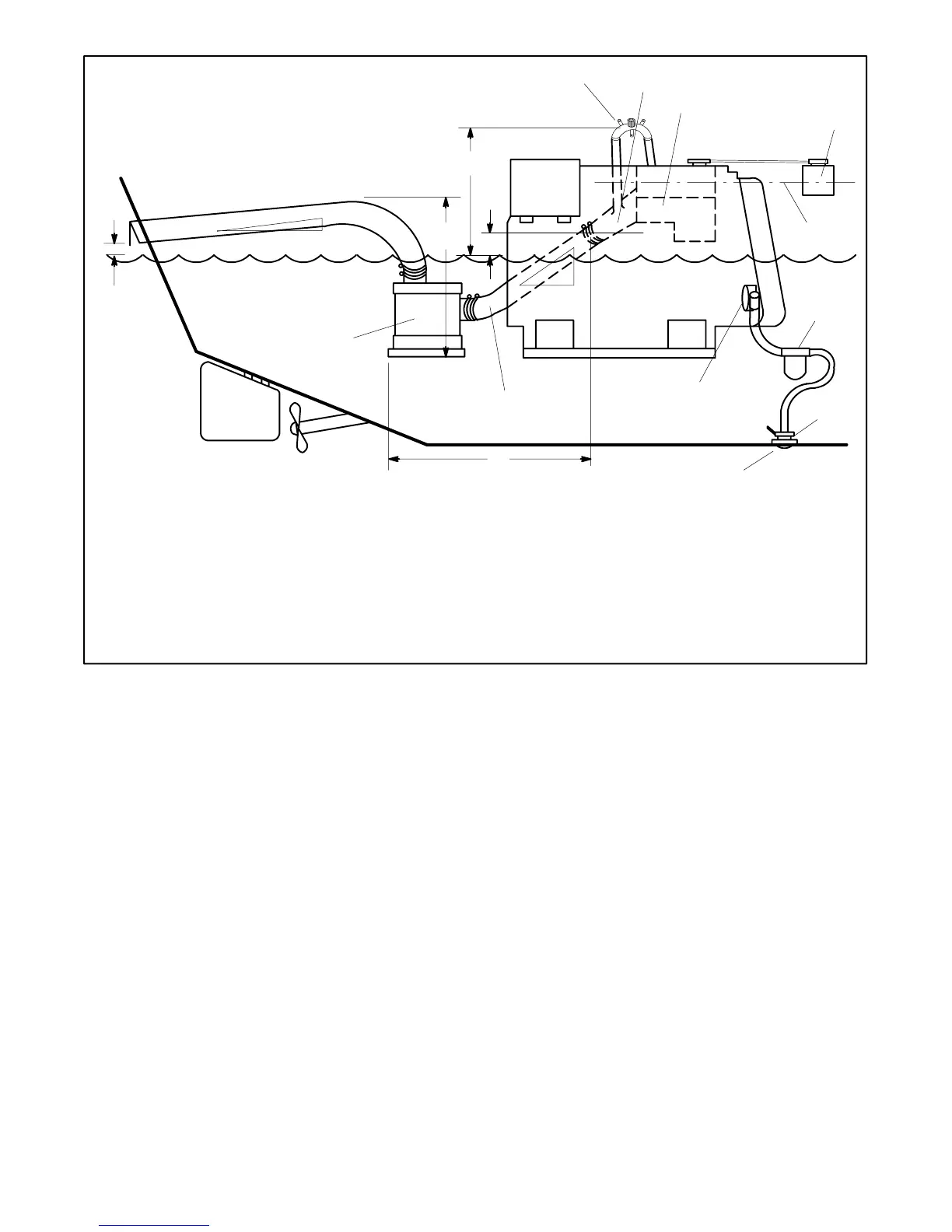

Figure 3-10 Siphon Break (Plastic “U” Type) Installation
Note: Consult the installation manual for complete
explanation of dimensions and other installation
considerations.
