7.10
Section 7
Electrical System and Components
15/20/25 Amp Regulated Charging System.

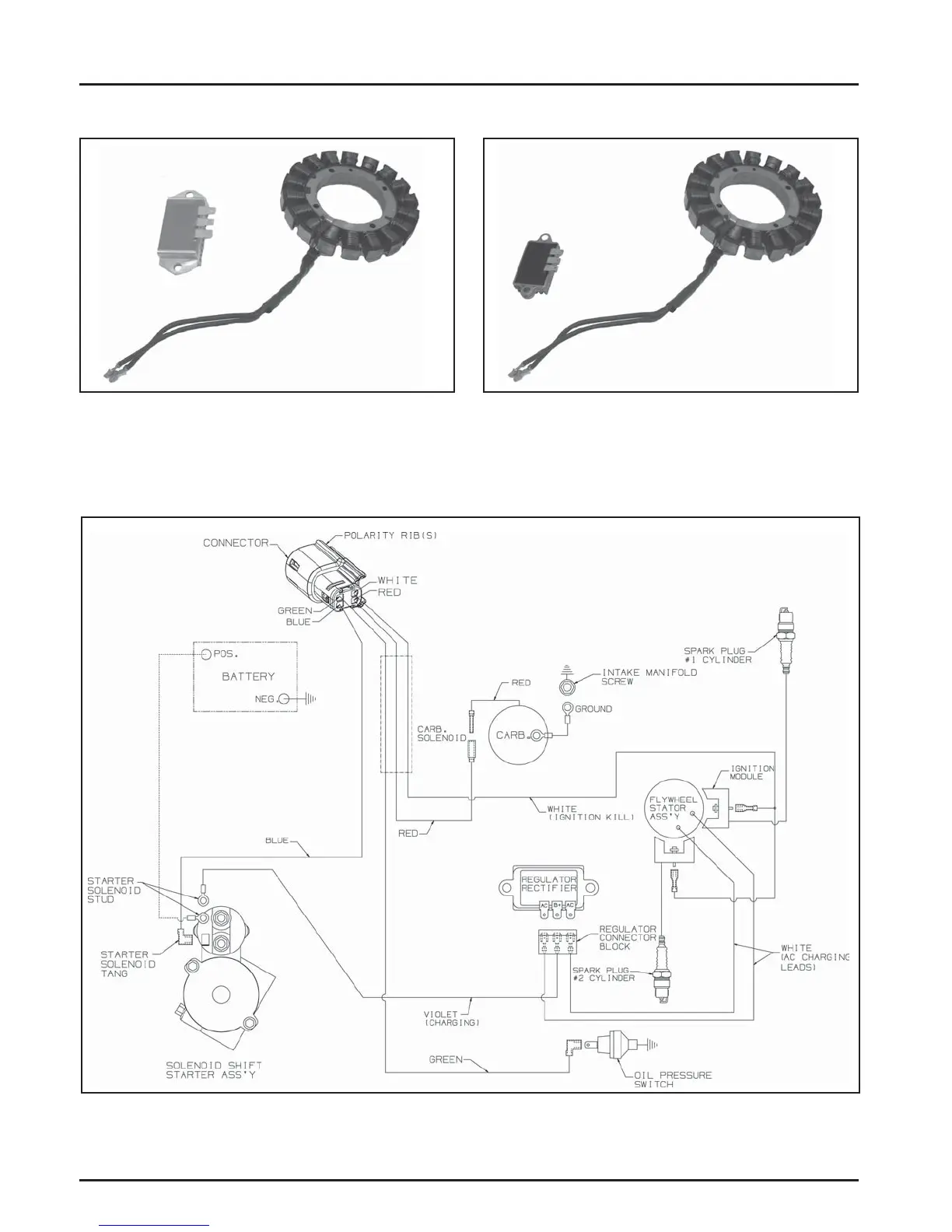

Figure 7-9. 25 Amp Stator and 20/25 Amp Rectifi er-
Regulator.
NOTE: 20 amp charging systems use a 15 amp stator with a 25 amp rectifi er-regulator.
Figure 7-10. 15 Amp Stator and Rectifi er-Regulator.
Figure 7-11. Wire Diagram-15/20/25 Amp Regulated Battery Charging System with Fixed Timing, Four Pin
Connector.
