7.11
Section 7
Electrical System and Components
7

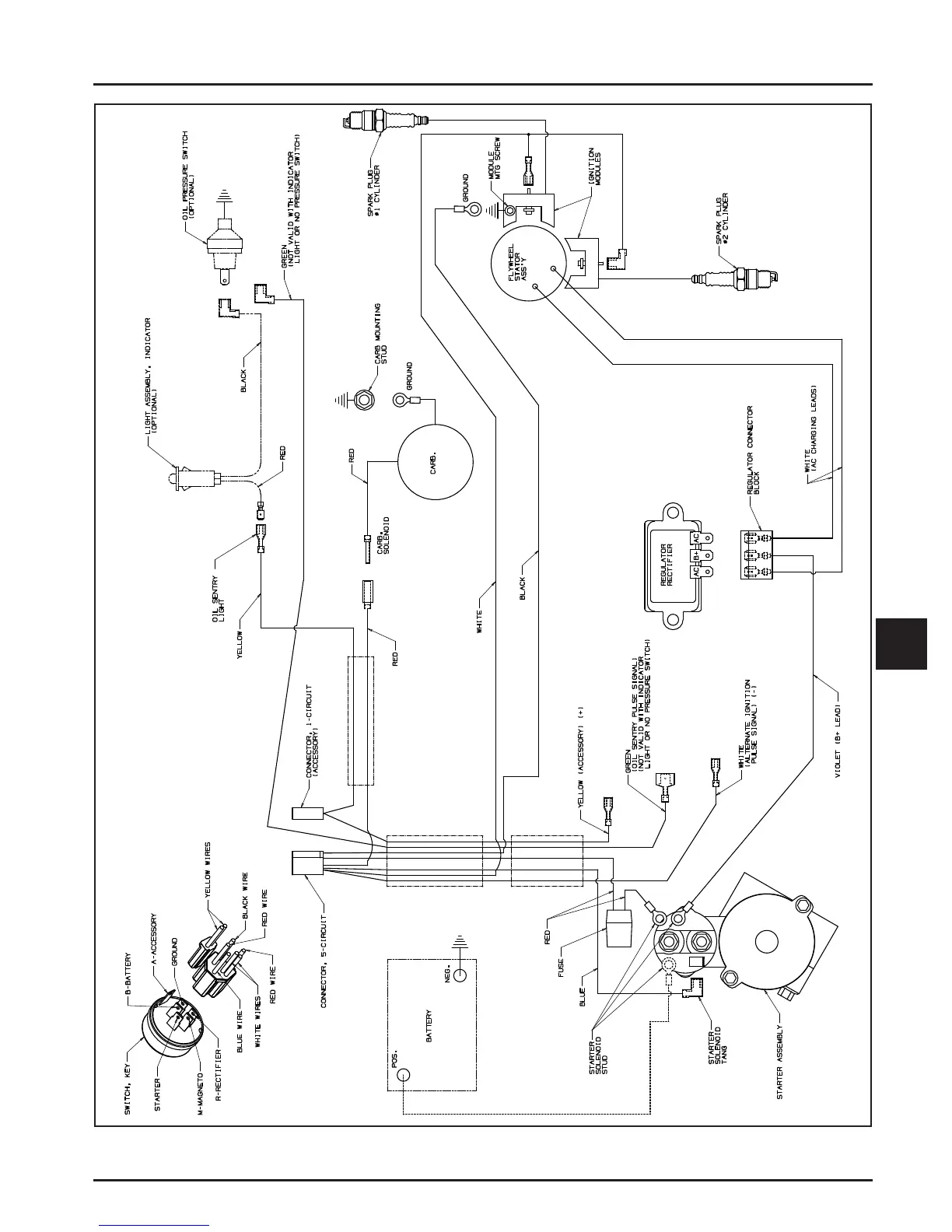

Figure 7-12. Wire Diagram-15/20/25 Amp Regulated Battery Charging System with Fixed Timing, Five Pin
Connector, Key Switch, and Fuse.
