Kohler Comand Pro CH1000

8.5
Section 8
Disassembly
8
5. The carburetor and linkages can be separated as
necessary.
Remove Oil Sentry™ (If Equipped)
1. Disconnect the lead from the Oil Sentry™ switch.
2. Remove the Oil Sentry™ switch from the closure
plate. See Figure 8-15.
Pressure
Pressure
Switch
Switch

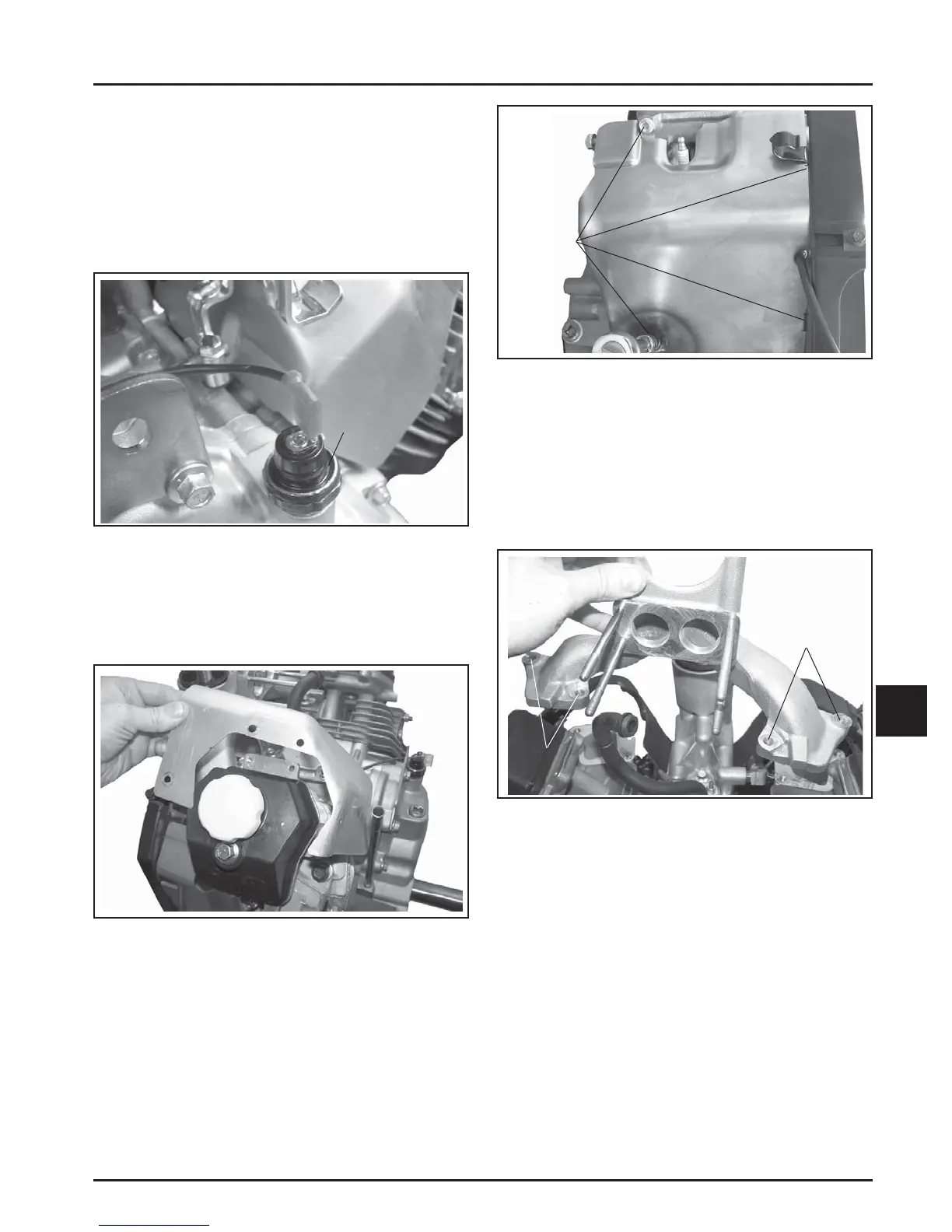

Figure 8-15. Oil Sentry™ Switch Location in
Closure Plate.
Remove Baffl es and Intake Manifold
1. Remove the screws securing the valley baffl es to
the cylinder heads and backing shroud assembly.
Figure 8-16. Removing Valley Baffl es.
2. Remove the four screws securing each of the
outer cylinder baffl es in place. Two of the screws
are accessed from the backing shroud side. See
Figure 8-17.
Mounting
Screws
Figure 8-17. Removing Outer Cylinder Baffl es.
3. Remove the four hex fl ange screws securing the
intake manifold to the cylinder heads. Cut any
wire ties that secure the wiring harness or leads
to the intake manifold.
4. Remove the intake manifold and gaskets. See
Figure 8-18.
Mounting
Locations
Mounting
Locations
Figure 8-18. Removing Intake Manifold.
