Kohler Command CH14 User Manual

9.10
Section 9
Disassembly

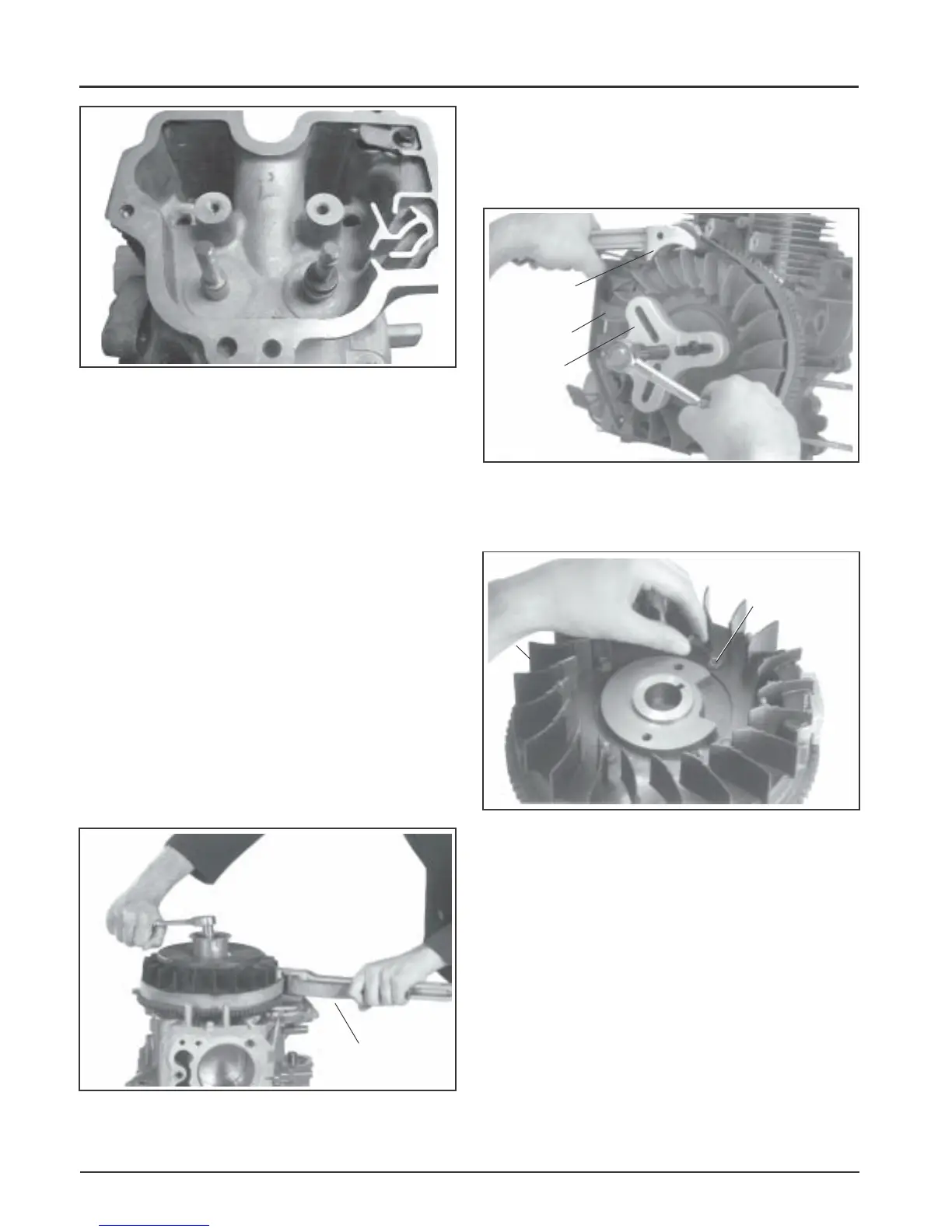

Figure 9-36. Removing Valves.
Remove Drive Cup, Grass Screen,
Flywheel, and Fan
NOTE: Always a the flywheel strap wrench or
holding tool to hold the flywheel when
loosening or tightening the flywheel and fan
retaining fasteners. Do not use any type of
bar or wedge between the fins of cooling fan
as the fins could become cracked or
damaged.
NOTE: Always use a puller to remove the flywheel
from the crankshaft. Do not strike the
crankshaft or flywheel, as these parts could
become cracked or damaged.
1. Remove the hex flange screw, plain washer, and
recoil starter drive cup*. See Figure 9-37.
*Not used on models with electric start only. On
these models the grass screen must be removed
first, to access the hex flange screw and washer.
2. Unsnap and remove the grass screen from the
fan.
3. Remove the flywheel from the crankshaft using a
puller. See Figure 9-38.
Figure 9-37. Removing Flywheel Retaining Screw
and Drive Cup.
Figure 9-38. Removing Flywheel With a Puller.
4. Remove the four hex flange screws and fan from
flywheel. See Figure 9-39.
Figure 9-39. Removing Fan From Flywheel.
Remove the Stator and Wiring Harness
1. Remove the stator leads from the connector body.
2. Remove the hex flange screw and clip securing
the stator leads to the crankcase. See Figure
9-40.
3. Remove the hex flange screw and clip securing
the kill lead to the crankcase. Remove the four
hex socket head screws and stator.
Fan
Hex Flange
Screws (4)
Strap Wrench
Strap
Wrench
Flywheel
Puller
Flywheel
