8.36
Section 8
Electrical System and Components

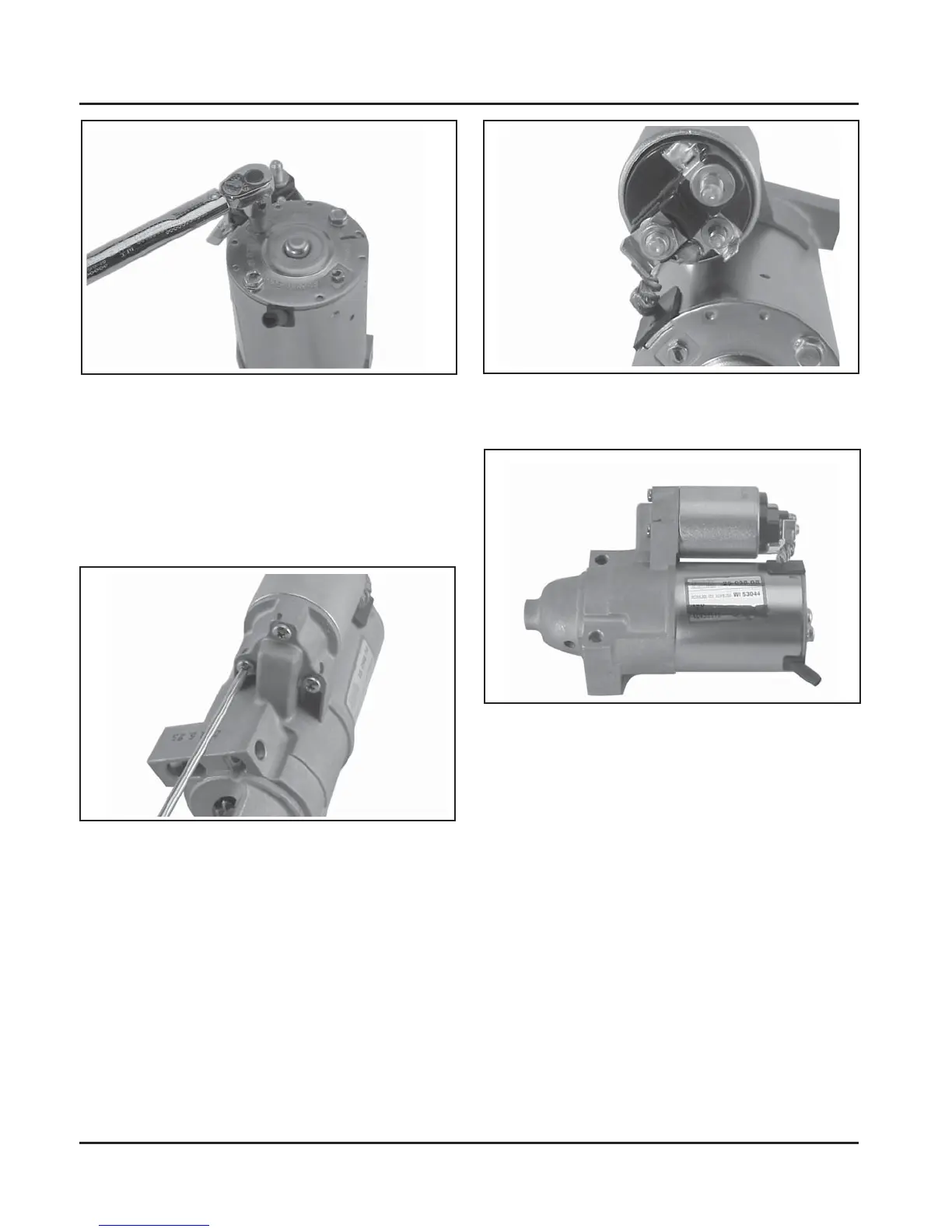

Figure 8-65. Torquing Brush Holder Screws.
13. Hook the plunger behind the upper end of
the drive lever, and install the spring into the
solenoid. Insert the three mounting screws
through the holes in the drive end cap. Use
these to hold the solenoid gasket in position,
then mount the solenoid. Torque the screws to
4.0-6.0 N·m (35-53 in. lb.). See Figure 8-66.
Figure 8-66. Installing Solenoid Screws.
14. Connect the positive brush lead/bracket to the
solenoid and secure with the hex. nut. Torque the
nut to 6-9 N·m (53-79 in. lb.), do not overtighten.
See Figure 8-67.
Figure 8-67. Positive Brush Lead Connection.
Completed Starter Photo
Figure 8-68. Delco-Remy Solenoid Shift Starter.
