9.7
Section 9
Disassembly
9

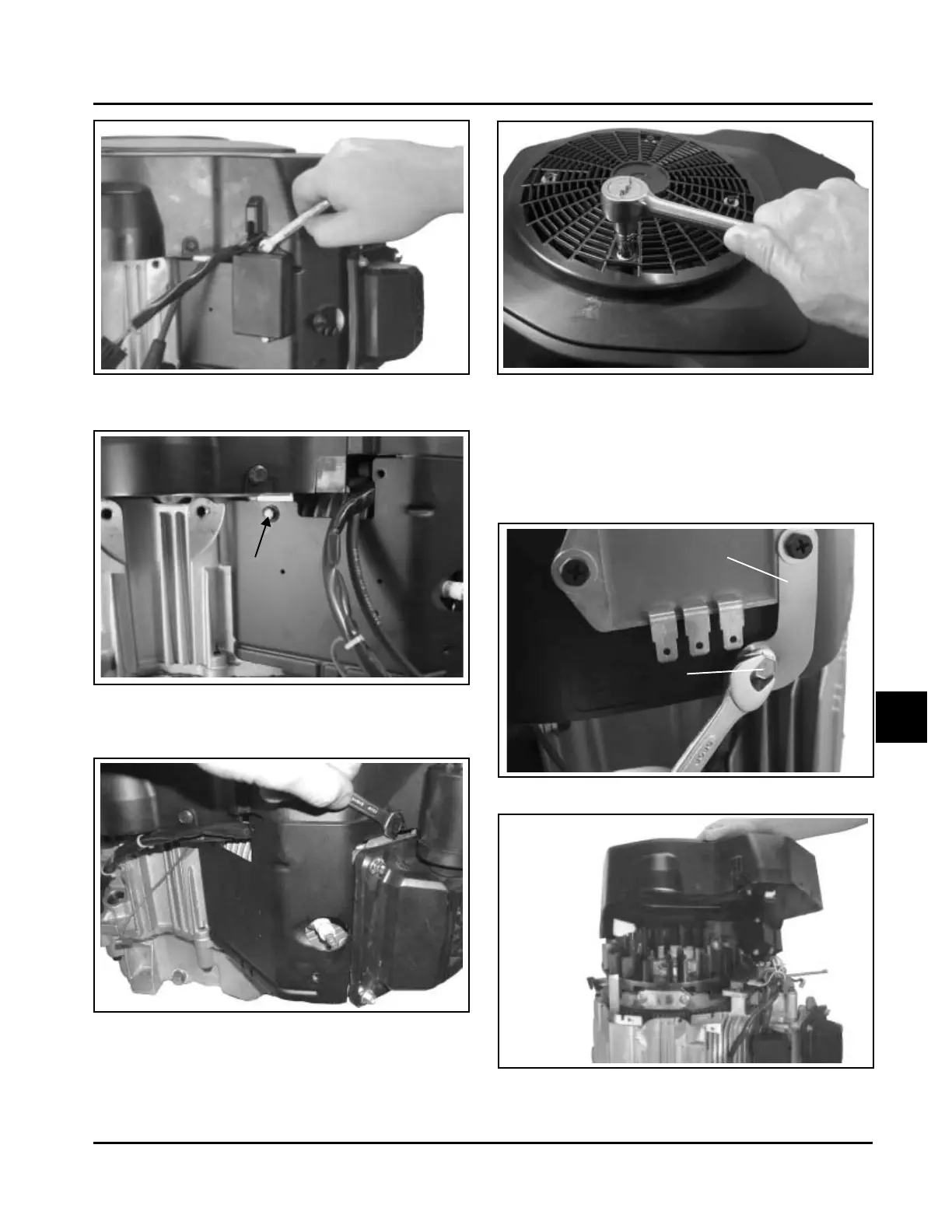

Figure 9-23. Removing Outer Baffles.
5. If the flywheel screen overlaps the blower
housing, remove the fasteners and screen. If it
was a metal screen with long bolts, also remove
the remaining loose hardware and cooling fan.
Figure 9-24. Removing Flywheel Screen.
6. Remove the remaining hex. flange screws
securing the blower housing. Note the one silver
plated screw used for the rectifier-regulator
ground strap or lead. Remove the blower housing.
See Figures 9-25 and 9-26.
Figure 9-21. Loosening Spark Advance Module
(Applicable Models).
Figure 9-22. Note Location of Short Screws.
4. Remove the outer baffles. See Figure 9-23.
Figure 9-26. Removing Blower Housing.
Figure 9-25. Rectifier-Regulator Ground Strap.
Ground Strap
Silver Screw
Short
Screw
