Kohler Command PRO CH940 - Disassembly;Inspection and Service

Disassembly/Inspection and Service
5362 690 01 Rev. J KohlerEngines.com
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

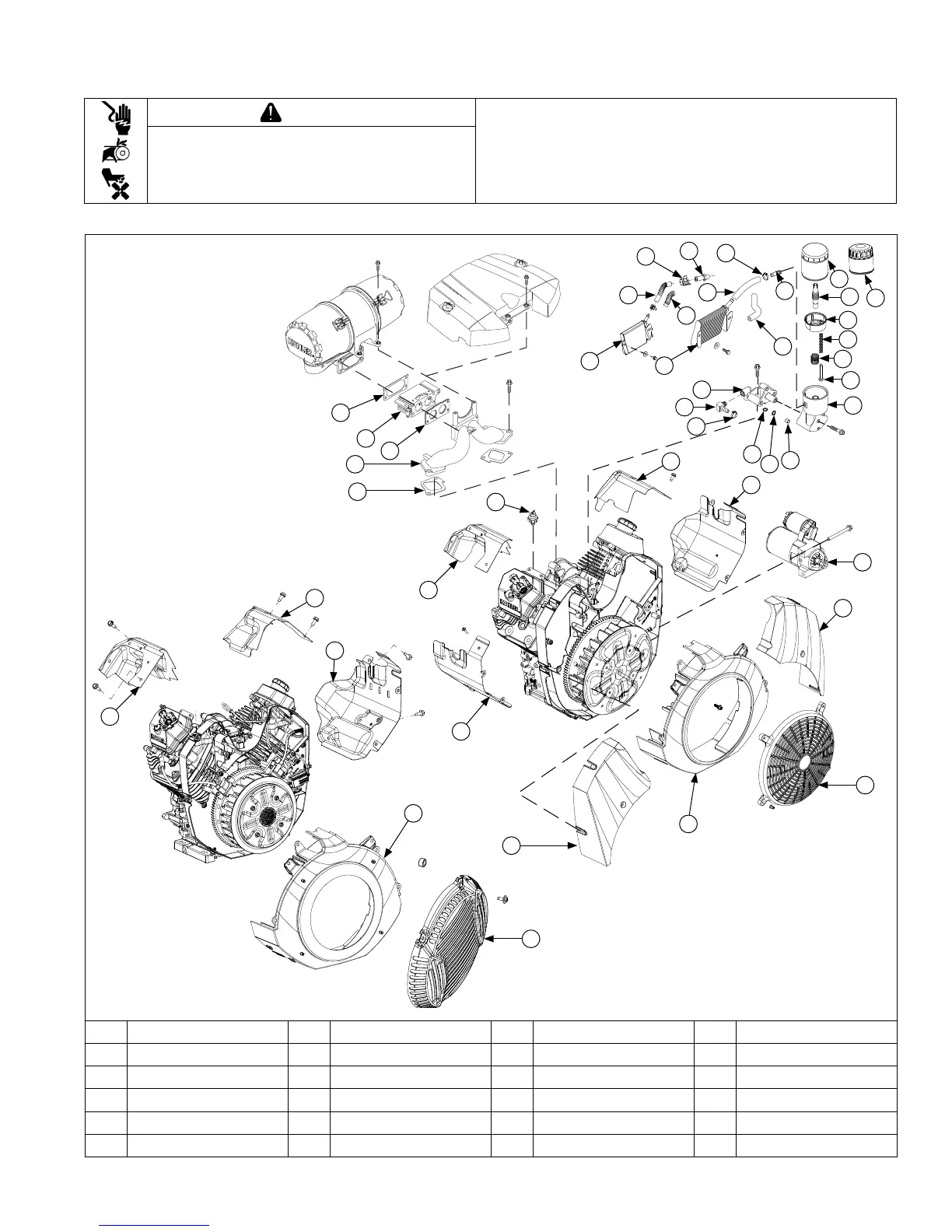

External Engine Components
T
I
H
J
K
M
L
K
I
H
N
R
Q
U
O
O
P
S
T
U
Q
X
V
W
V
V
G
F
E
D
C
B
A
A
S
T
T
U
Q
L
H
H
I
A Oil Filter B Oil Filter Nipple C Oil Filter Cup D Valve Spring
E Cup Spring F Valve G Oil Filter Housing H Valley Bafe
I Outer Cylinder Bafe J Electric Starter K Cylinder Shroud L Blower Housing
M Fixed Guard N Oil Sentry
™
O O-ring P Pin
Q Fitting R Oil Filter Adapter S Oil Cooler T Hose
U Hose Clamp V Gasket W Carburetor X Intake Manifold
