8.11
Section 8
Disassembly
8

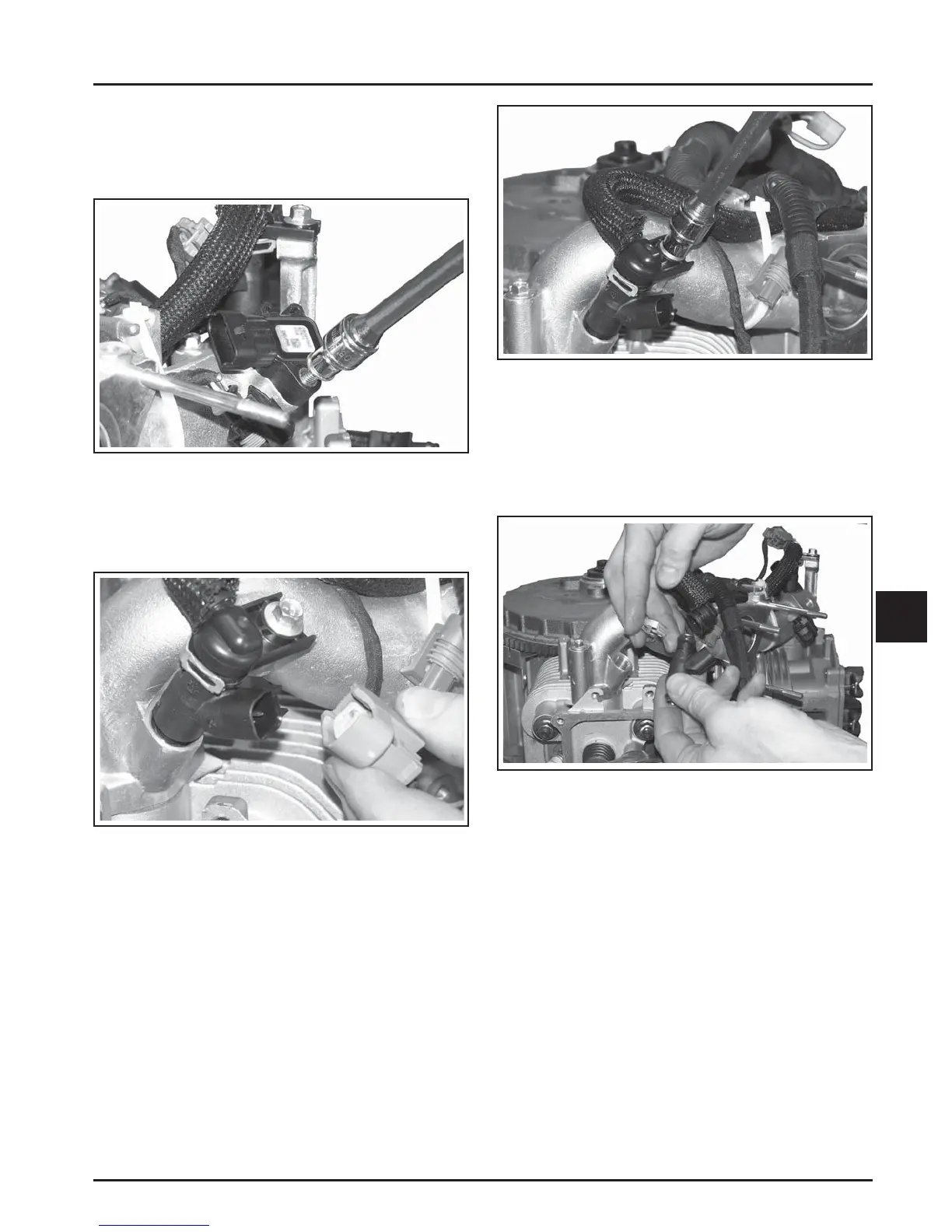

Figure 8-43. Remove Fuel injector.
3. When removed, pull off the metal retaining clip
connecting the fuel injector to the fuel injector
cap. See Figure 8-44. There may be some fuel le
in the high pressure fuel line. Any spilled fuel
must be completely wiped up immediately.
Figure 8-41. Remove MAP Screw.
Remove Fuel Injectors
1. Disconnect the electrical connector. See Figure
8-42.
Figure 8-42. Remove Connector.
2. Remove the hex fl ange screw and pull the injector
out of the intake manifold for each injector. See
Figure 8-43.
2. Detach the connector.
3. Remove the hex fl ange screw and pull the MAP
sensor out of the intake manifold. See Figure 8-41.
Figure 8-44. Remove Retaining Clip.
Remove Intake Manifold
1. Remove the hex fl ange screw securing a ring
terminal which is part of the wiring harness. See
Figure 8-45.
