Electrical System
20 690 01 Rev. F KohlerEngines.com

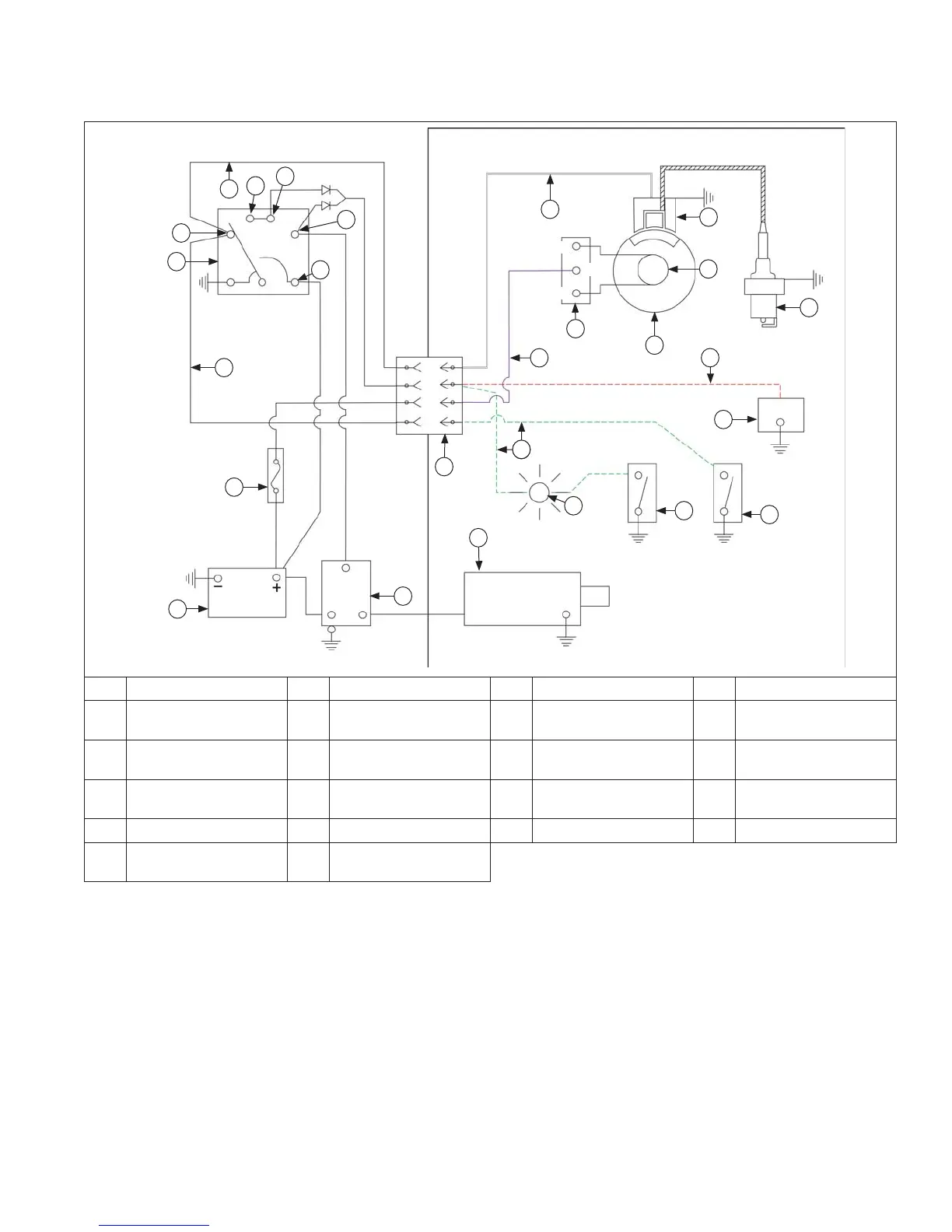

Wiring Diagram-9 or 15 Amp Regulated Battery Charging System
H
G
D
R
S
J
N
P
L
Q
E
C
T
O
U
A
M
F
I
K
J
T
P
Q
B
B
V
AC
AC
B+
A Red B Green C Violet D White
E Spark Plug F Optional Fuel Solenoid G
Optional Oil Sentry
™
Switch (Shutdown)
H Bendix Starter
I Engine Connector J Starter Solenoid K
Optional Oil Sentry
™
Switch (Indicator Light)
L Ground-To-Kill Lead
M Key Switch N
Optional Oil Sentry
™
Shutdown
O Optional Fuse P Battery
Q Rectifi er-Regulator R Flywheel S Stator T Ignition Module
U Accessory V
Optional Oil Sentry
™
Switch (Indicator)
