50
Disassembly/Inspection and Service
KohlerEngines.com 20 690 01 Rev. F
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

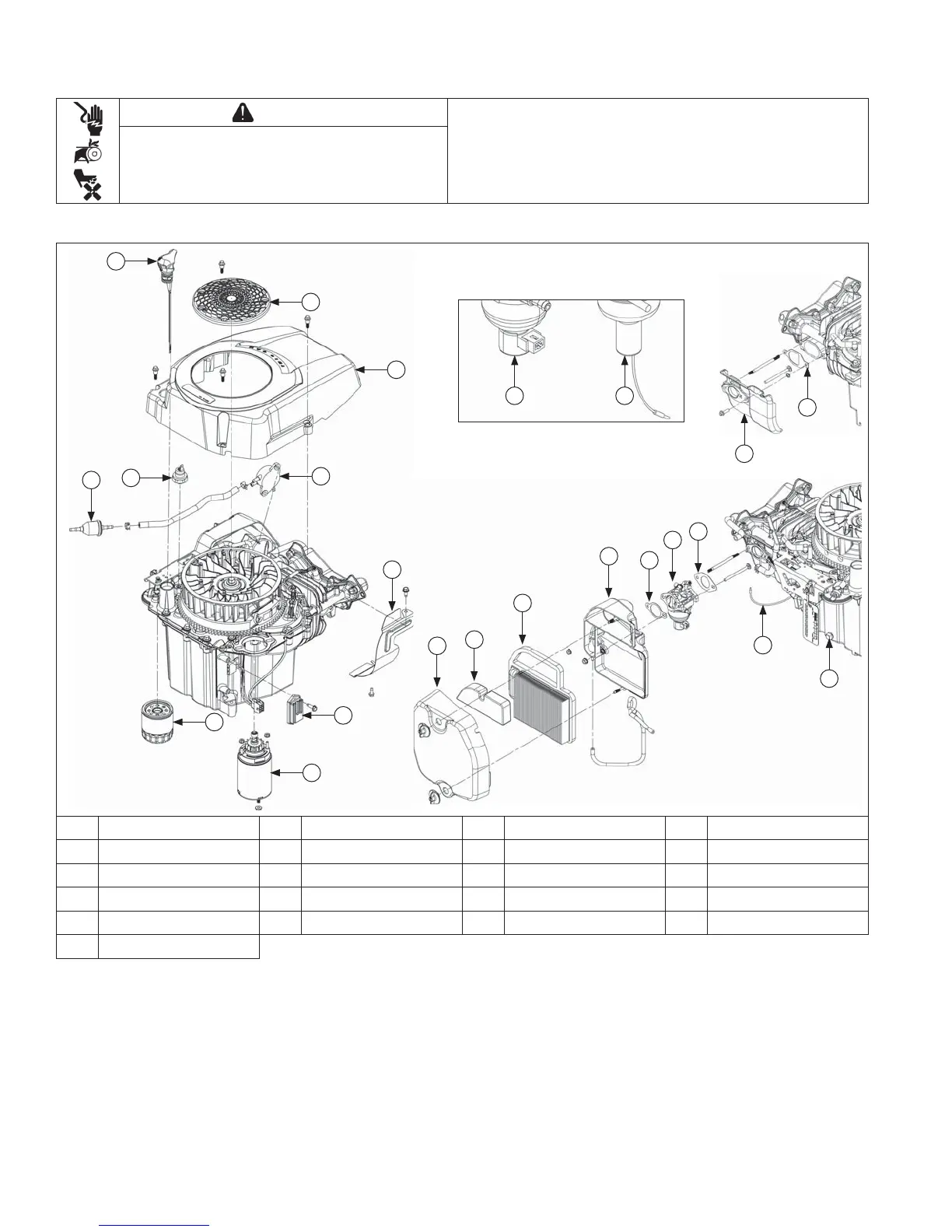

External Engine Components
A
B
C
K
L
M
N
P
O
Q
S T
U
O
R
O
D
E
H
G
F
J
I
A Oil Fill/Dipstick B Debris Screen C Blower Housing D Fuel Pump
E Cylinder Head Baffl e F Rectifi er-Regulator G Electric Starter H Oil Filter
I Fuel Filter J Oil Sentry
™
K Air Cleaner Cover L Precleaner
M Air Cleaner Element N Air Cleaner Base O Gasket P Carburetor
Q Ground Wire R Oil Drain Plug S Nikki Fuel Solenoid T Walbro Fuel Solenoid
U Heat Defl ector
