Kohler Courage XT-7 Service Manual

33
Disassembly/Inspection and Service
14 690 01 Rev. G KohlerEngines.com
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

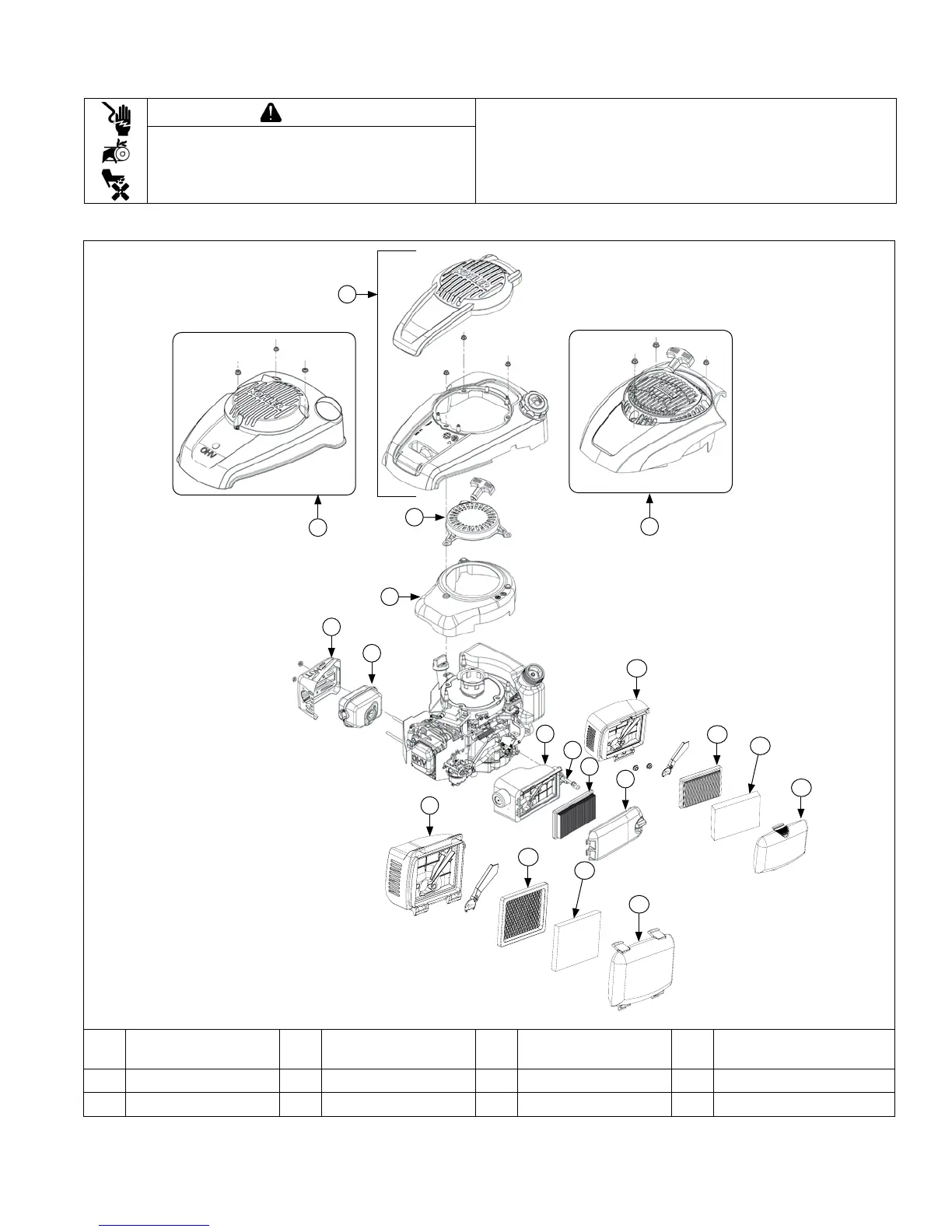

External Engine Components
F
G
E
D
A
K
C
B
J
H
I
K
J
H
L
H
J
L
K
A
Engine Cover and
Insert
B Engine Cover C
Engine Cover and
Retractable Start
D Retractable Starter
E Blower Housing F Mufer Guard G Mufer H Air Cleaner Base
I Breather Hose J Paper Element K Air Cleaner Cover L Precleaner

Kohler Courage XT-7 Specifications

General

Engine Type	4-cycle, OHV, single cylinder
Starting System	Recoil
Horsepower	7 hp
Cooling System	Air-cooled
Compression Ratio	8.5:1
Lubrication System	Splash
Governor Type	Mechanical
Displacement	173 cc (10.6 cu. in.)
Power	7 HP
Fuel Capacity	1.6 L (0.42 US gal)
Oil Capacity	0.6 L
Ignition System	Electronic
Bore	70 mm
