42 Section 3 Decision-Makerr 3+ Troubleshooting TP-6356 4/12
ADV-6670A-B
Note:
See Figure 3-8 for ADV-6955
(Permanent Magnet Alternator)
or
Figure 3-9 for ADV-6956
(Wound Field Alternator)

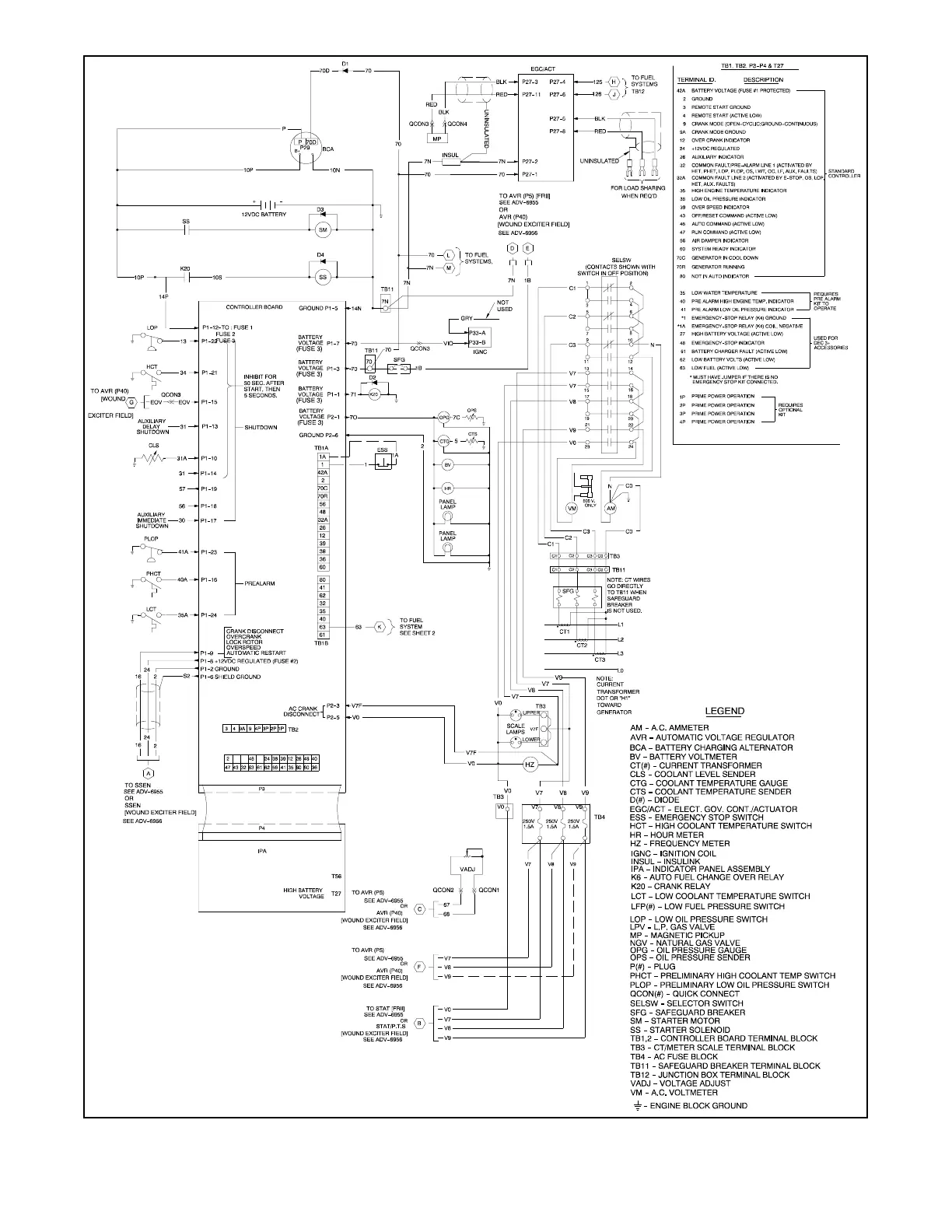

Figure 3-7 Logic S chematic, ADV-6670A-B Circuit Board, Typical
