4 TT-1379 5/16
GM30565A-B
Connects to
additional serial
gauges, if equipped.
Connects to the
remote harness.
NOTE: Dimensions in brackets are inch equivalents.

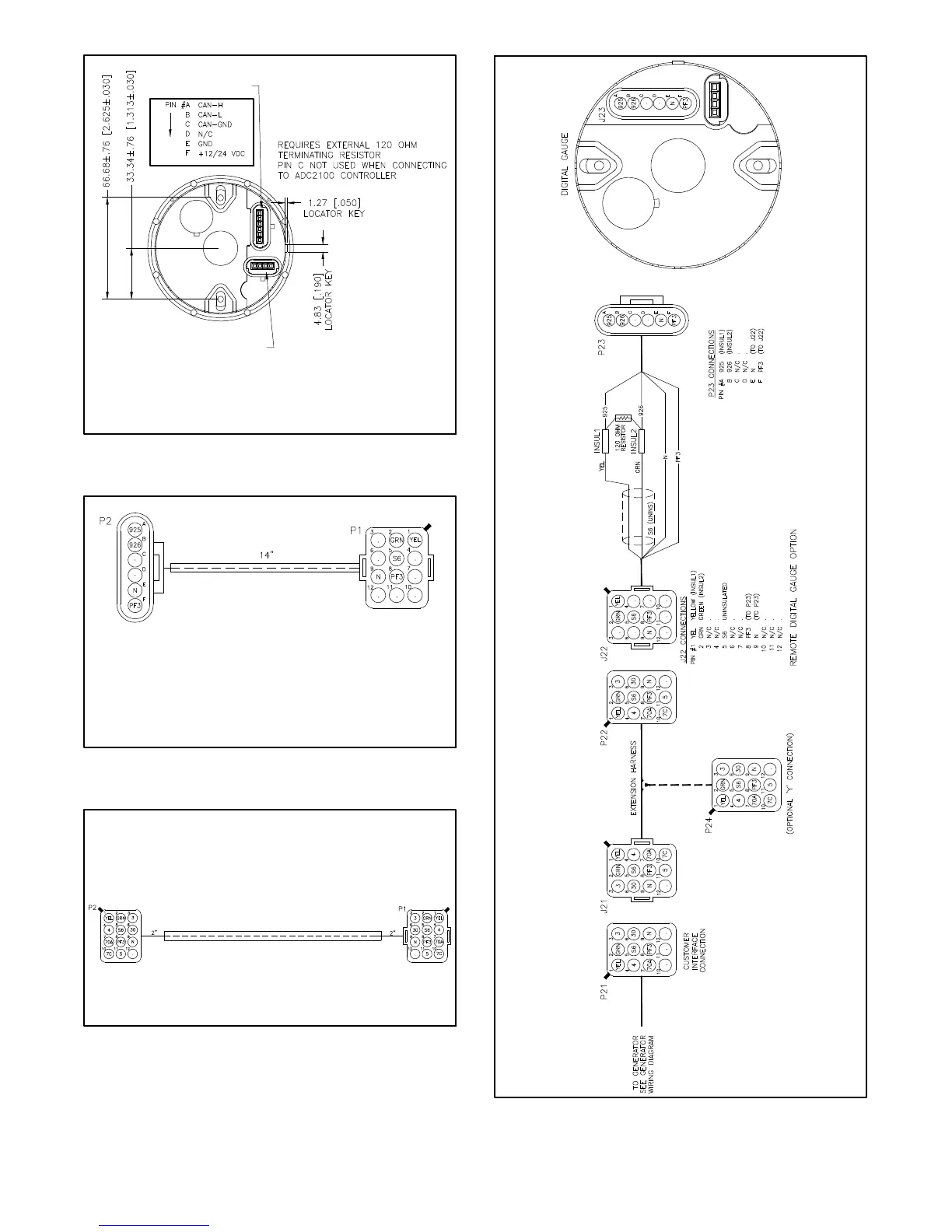

Figure 6 Remote Digital Gauge Connections
(Back View)
GM32325-F
Connects to the
remote digital gauge
connector.
Connects to the
generator set
customer-interface
connector or
a remote harness
connector.
Figure 7 Remote Gauge Harness GM32325
(Included with Kit GM32337-KP1)
GM30248-
15 ft. Extension Harness Kit GM32333-KP1
25 ft. Extension Harness Kit GM32333-KP2
Figure 8 Remote Extension Harness Kits
(For Use With Kit GM32337-KP1)
GM33846A-D
Figure 9 Harness Connection Diagram
For Kit GM32337-KP1
