8 TT-1379 5/16
Gauge Operation
To Select the Units of Measure:
Note: Data can be displayed in either US or
international units.
1. With no power to the gauge, press and hold the
SELECT button. See Figure 17.
2. Apply power to the gauge.
3. The gauge displays: Adc 2100
Note: The gauge will display Adc 2100 even if
the generator set is equipped with an
ADC II or ADC IId controller.
4. The gauge displays: UnIT SEt
5. Press and hold both the UP and DOWN buttons
until the gauge beeps and the display changes.
6. Use the UP or DOWN buttons to select either Int or
USA units.
7. Press and hold both the UP and DOWN buttons
until the gauge beeps and the display changes.
8. Press the DOWN button.
9. The gauge displays: ESC 08 ?
10. Press and hold both the UP and DOWN buttons
until the gauge switches to the monitor mode.
GM30565-B
!
1. Fault indicator
2. Arrow (if blinking, indicates that the generator set is running)
3. Select button
4. Voltage (volts)
5. Oil pressure (psi or kPa)
6. Engine speed (rpm)
7. Frequency (Hz)
8. Coolant temperature (_For_C)
9. Battery voltage (VDC)
10. Runtime hours
4
5
6
7
8
9
10
21
3

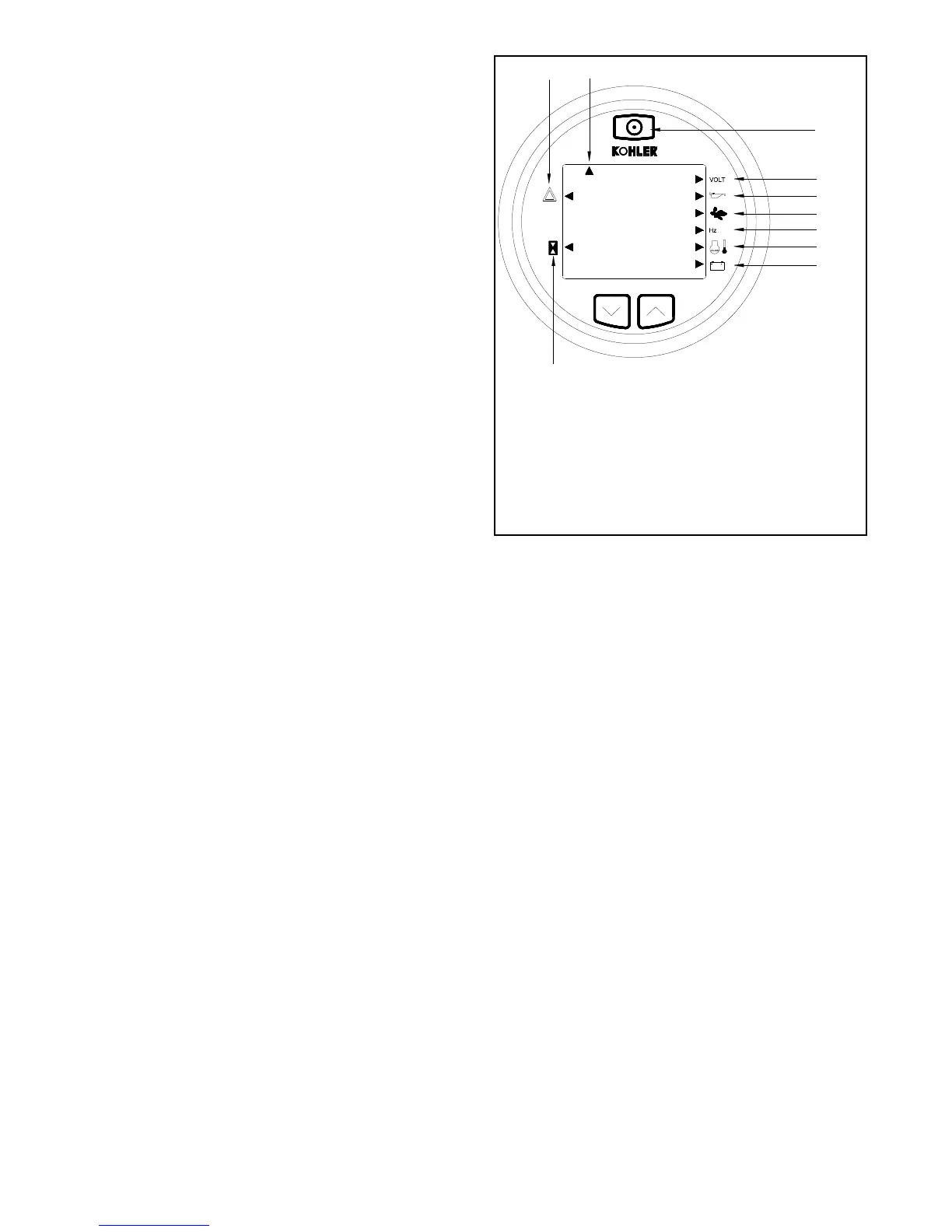

Figure 17 Remote Digital Gauge
