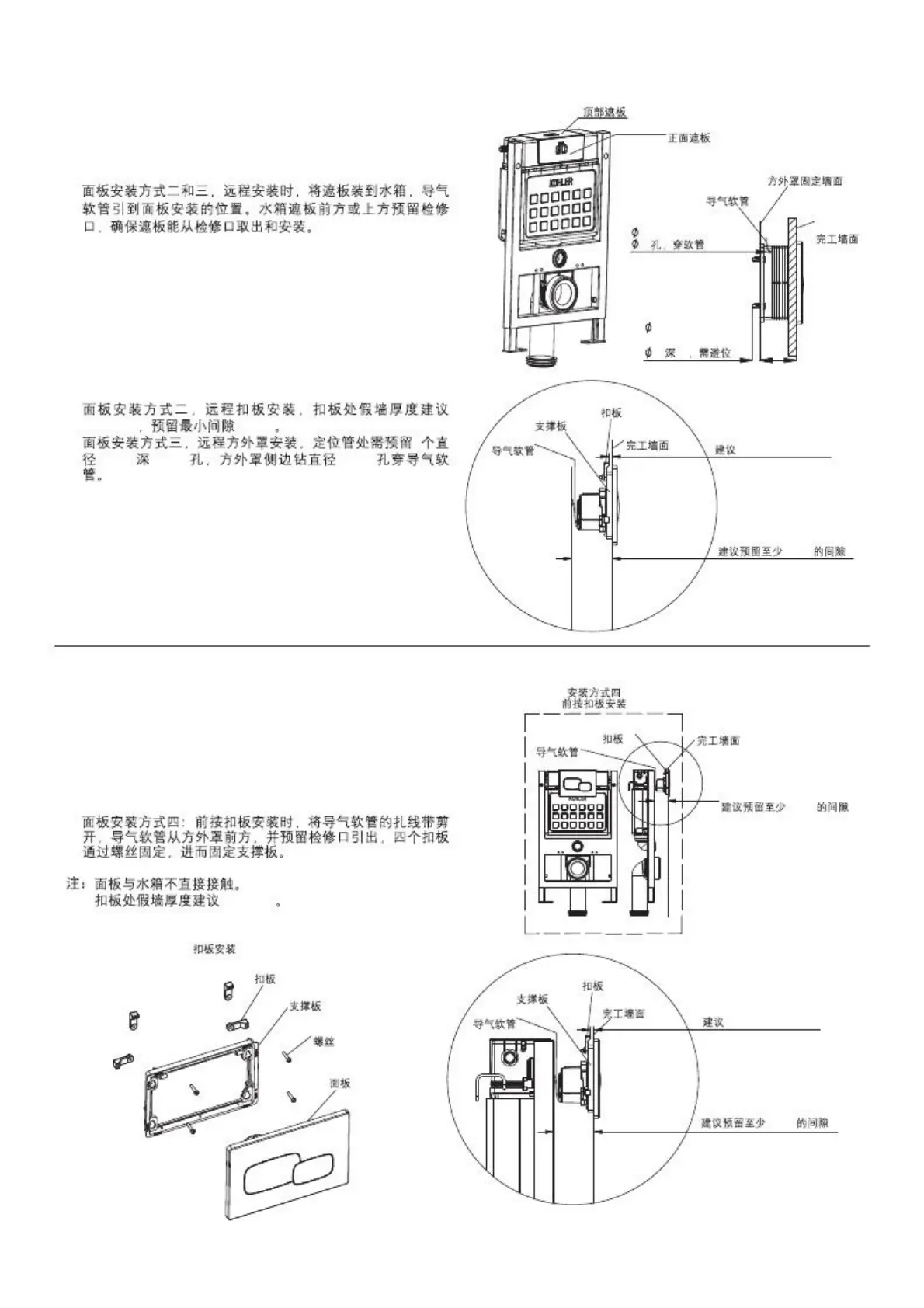

6. Methods two and three: During remote installation, fix the
cover onto the tank and pull the air hose to the panel.
Reserve access panel at front or top to ensure removal
and installation of cover.
Method two: During remote plate installation, 7~20mm
thickness is recommended for the wall of the pinch plate
and at least 80mm gap is reserved.
Method three: During remote installation of mask, 4 holes
with diameter of 10mm and depth of 16mm are needed to
be reserved at the locating hose. Drill 10mm holes through
air hose on the side of mask.
6.
80mm
4
7~20mm
10mm
16mm 10mm
7. Method four: Cut apart the cable of the air hose. Pull it out
from the front of the tank and meanwhile reserve the
access panel. Fix the four plates with screws and then fix
the support board.
Note: No direct contact between the faceplate and the tank.
7~20mm thickness recommended for the wall of the
pinch plate.
7.
Cover,Top
Cover,Front
At least 80mm gap reserved
80mm
At least 80mm gap reserved
80mm
At least 80mm gap reserved
80mm
Air hose
Air hose
Air hose
Pinch plate
Pinch plate
Finished wall
Pinch plate
Finished wall
Finished wall
Faceplate
7~20mm
Pinch plate installation
Pinch plate
Supporting Board
Screw
Supporting
Board
Supporting
Board
-10-
Method four:
Press from front
Air hose
Finished
wall
Fix Mask Onto Wall
72
7~20mm recommended
7~20mm
7~20mm recommended
7~20mm
10 Hole through hose
10
10 Depth 16,
Space reserved
10 16
1288818-T01-A
