-13-
1. OPEN
2. Tighten four screws to "LOCK" mark after installing
supporting board as shown.
2. LOCK
Long Screw
Reversed Lock
Gasket
Hexagonal Nut
Decoration Cap
Supporting Board
Locknut
6. Install the reserved lock, gasket, hexagonal nut and
decoration cap onto long screw according to the order
shown in the illustration.
Note: Please refer to the installation instructions of toilet.
6.

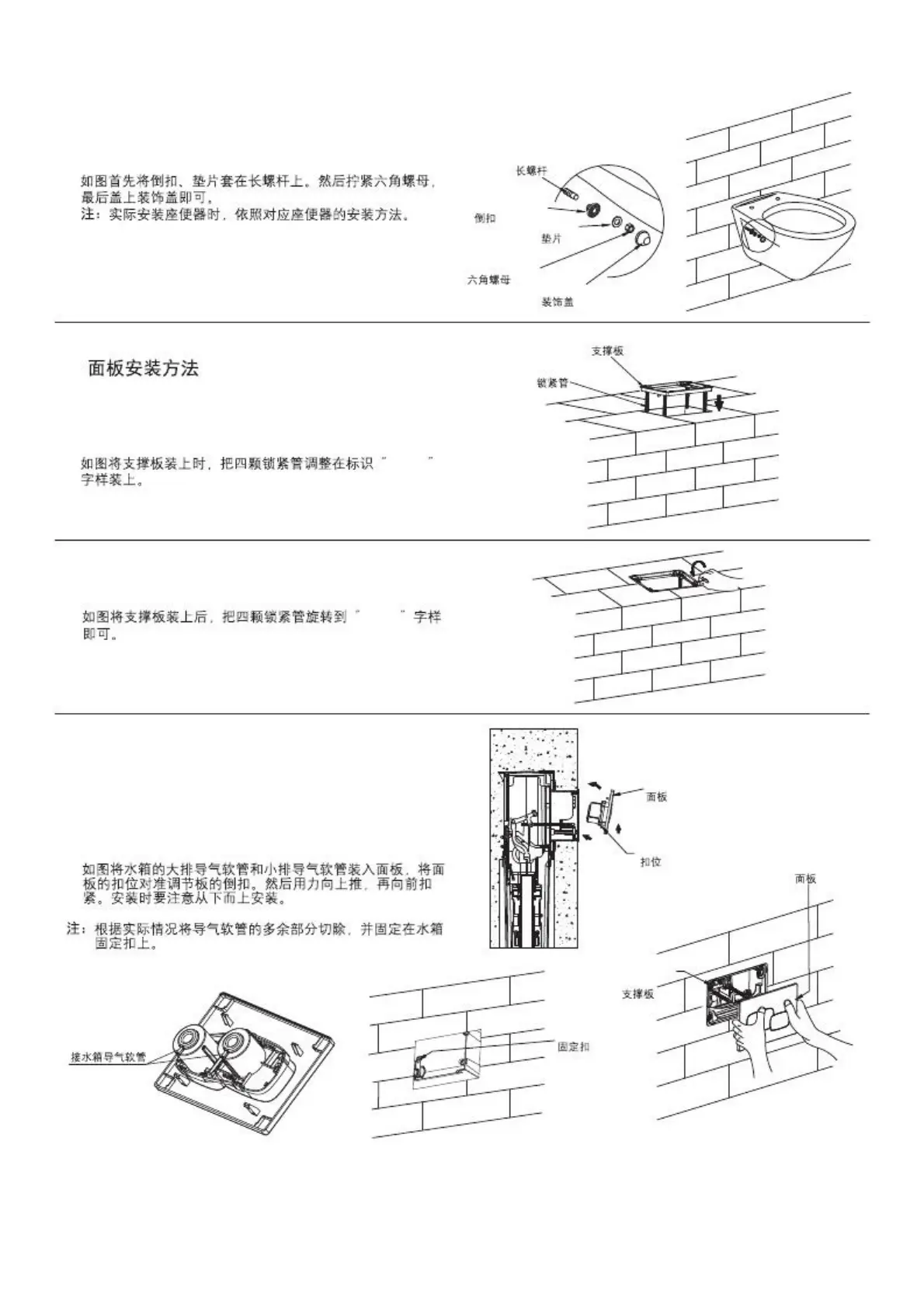

E. Faceplate Installation
E.
1. When tighten four locknuts on supporting board, adjust to
"OPEN" mark as shown.
3. Install the big flush air hose and small flush air hose to the
cover. Put the lock on the cover directly on the reversed
lock on supporting board, then push the cover and lock it.
The installation shall begin from bottom to top.
Note: Cut the excessive parts of the air hose if necessary and
fix it onto the tank fastener.
3.
Faceplate
Lock
Faceplate
Supporting
Board
Connect to air hose
Fastener
1288818-T01-A
To Next Page
