-12-
hand. Then apply lubricant to drainage pipe and limber
pipe to ensure a smooth installation.
4. 48mm-58mm
48mm-58mm
Long Screw
Lubricant
5. Install the toilet as shown in the illustration, and use a spirit
level to ensure the lavatory to remain level.
5.
Spirit Level
Inlet Pipe
Reserved Space
Drainage Pipe
Small Leak-proof Gasket
Inlet Pipe
Drainage Pipe
Big Leak-proof Gasket

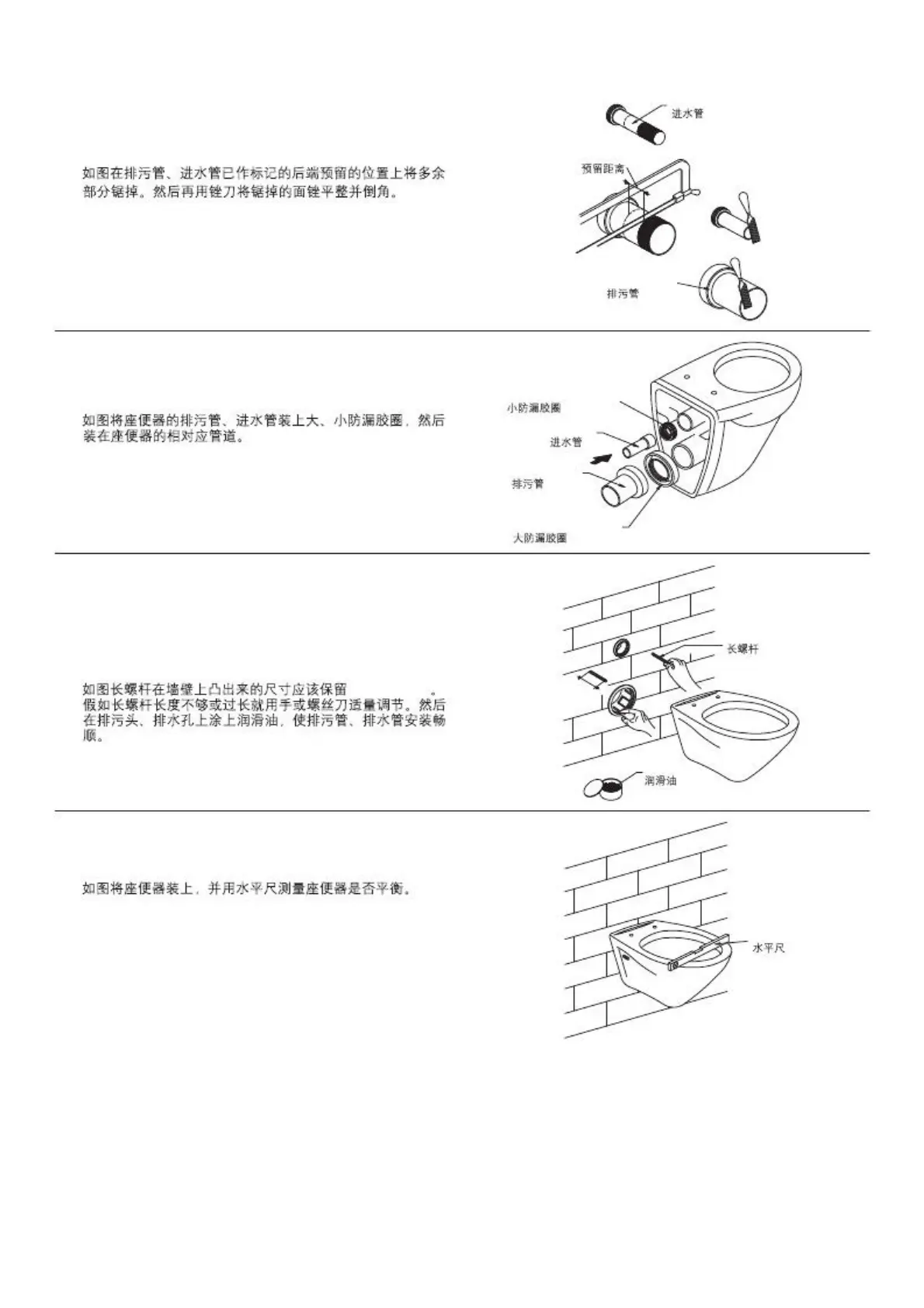

2. Eliminate unwanted part of the inlet pipe according to the
marks of reserved space ,and rasp a smooth surface with
files.
2.
3. Install the big and small leak-proof gaskets on inlet pipe
and outlet pipe ,then install it to corresponding pipes on the
toilet tank.
3.
4. 48mm-58mm of the long screw shall be reserved outside
the wall as shown in the illustration. if the long screw
outside the wall is not long enough or much longer than
that needed, it should be adjusted with screwdriver or by
1288818-T01-A
To Next Page
