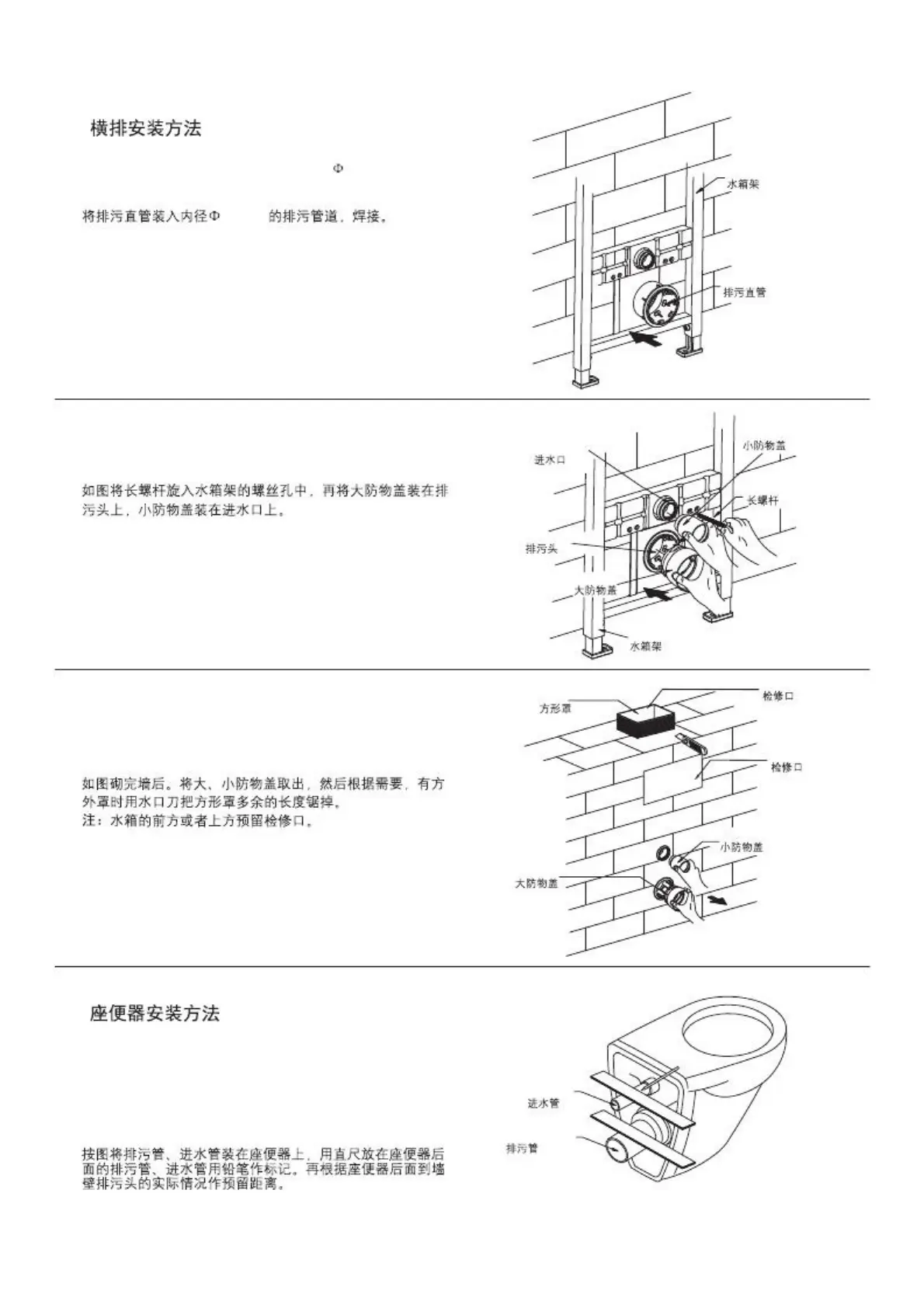

2. Tighten the long screw into the holes of the tank bracket
and cover the drainage hole with the big cap, cover the
inlet hole with the small cap.
2.
3. When finishing the brickwork of the wall, take out the big
and small caps, and eliminate unwanted mask with a sharp
knife, if there is mask.
Note: Reserve access panel at front or top of the tank.
3.
D. Installation of Toilet
D.
1. Install the inlet pipe to the lavatory as shown, and mark on
the pipes at the back side of the tank with a ruler and a
pencil, and reserve appropriate space according to the
distance from the back of the tank to the inlet hole on the
wall.
1.
110mm into
C. Installation of P-trap
C.
1. Insert drainage pipe with inner diameter
drain elbow and weld.
1.
110mm
Water Tank Bracket
Drainage Pipe
Water Inlet
Drainage Hole
Big Cap
Mask
Big Cap
Inlet Pipe
Drainage Pipe
Small Cap
Long Screw
Water Tank Bracket
Access Panel
Access Panel
Small Cap
