Kohler reserves the right to change marked dimensions without prior notice.
-5-

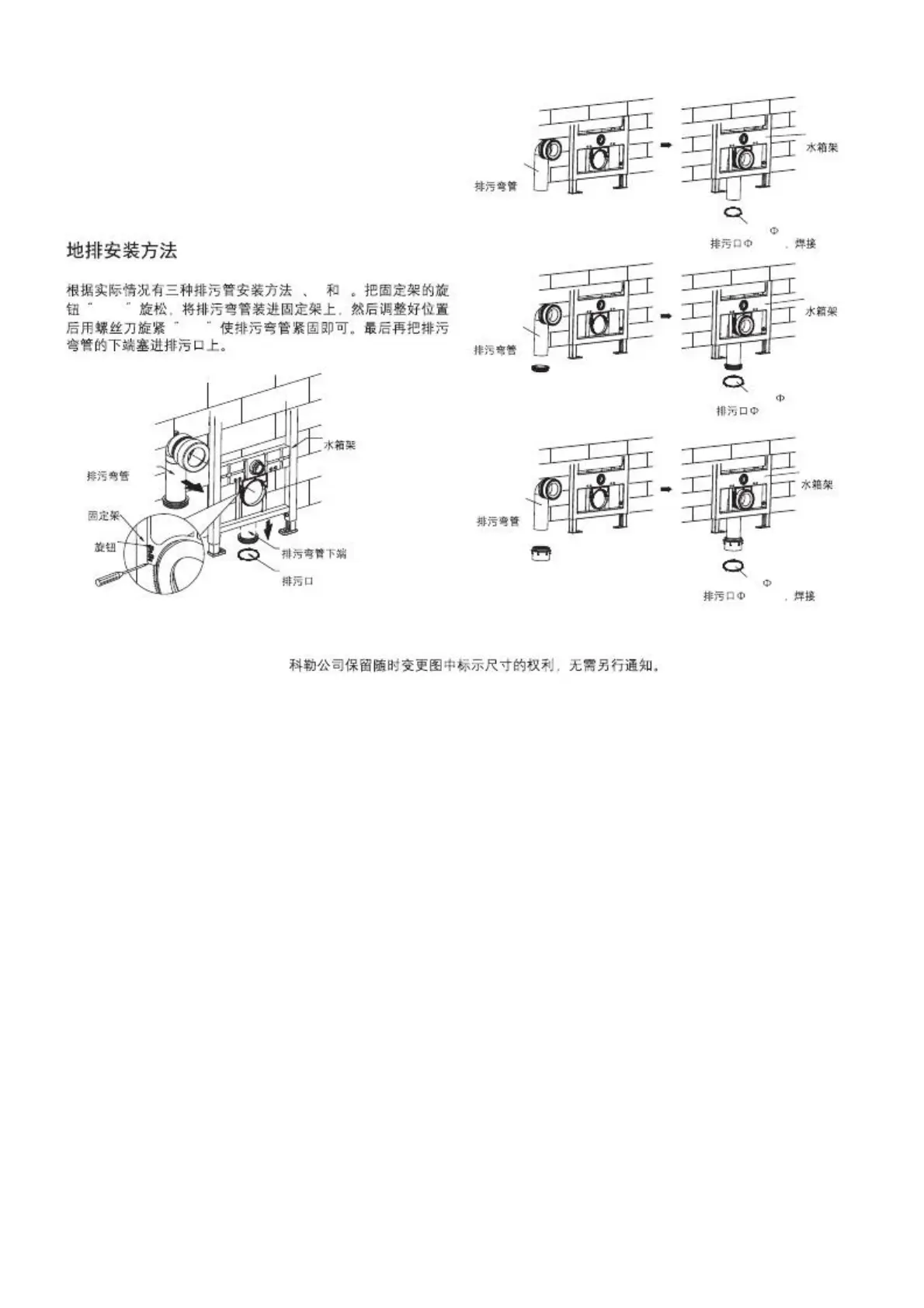

Floor Discharge Installation Method
There are three methods (A, B and C) for drainage pipe
installation. Loosen the knob "open" on the fixing frame, put
the drainage pipe into the fixing frame, then adjust and
tighten the knob "lock". Fill the bottom of the drainage pipe in
the drainage hole .
A B C
open
lock
B
C
A
Discharge
Elbow
Discharge
Elbow
Discharge
Elbow
Water Tank
Bracket
Water Tank
Bracket
Water Tank
Bracket
Drain outlet 90mm, welding
90mm
Drain outlet 110mm
110mm
Drain outlet 110mm, welding
110mm
Drainage Pipe
Tank Bracket
Bottom of the Drainage Pipe
Drainage Hole
Fixing Frame
Knob
1288818-T01-A
