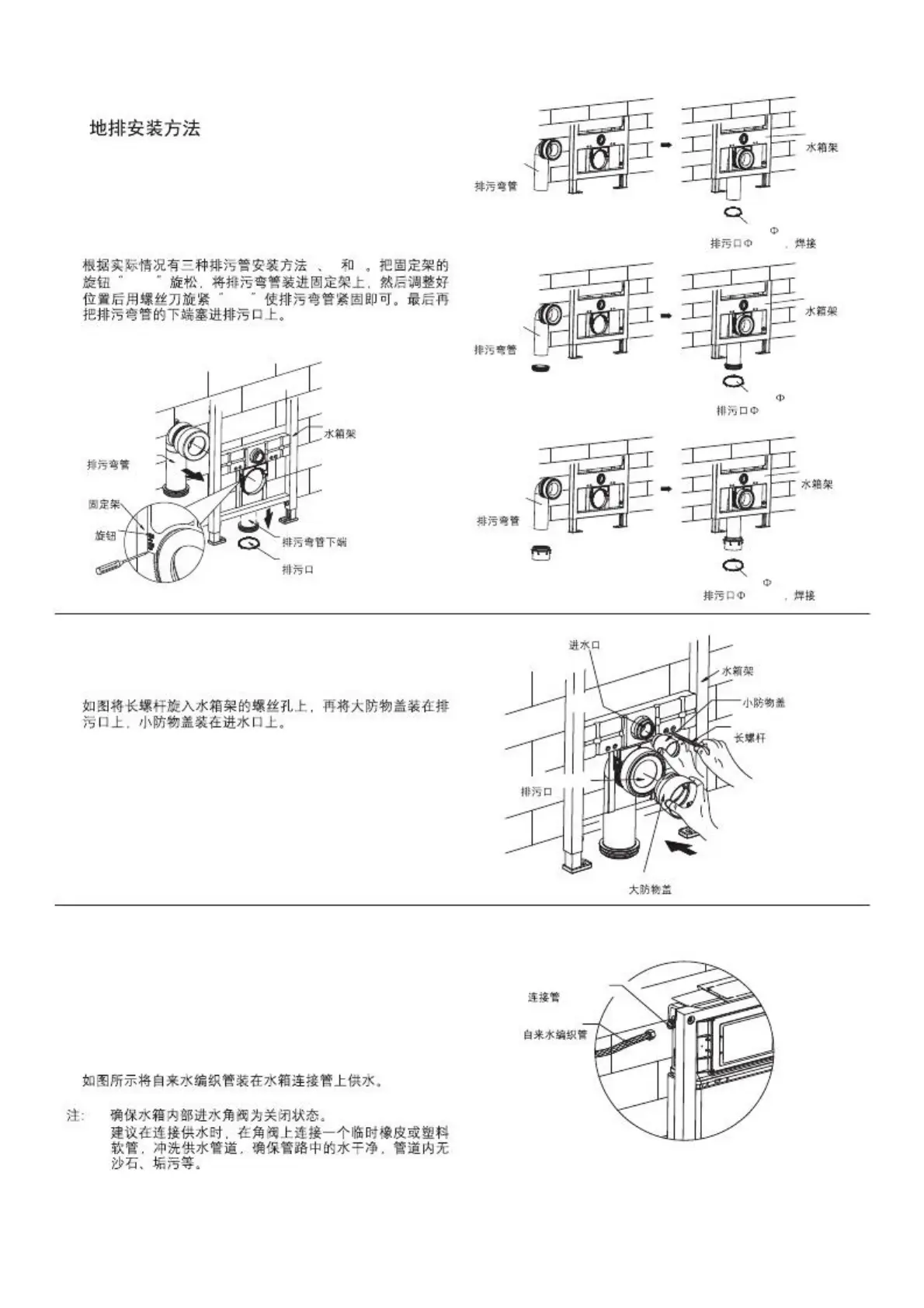

Page #8 background imageLoading...
Page #8 background image
-8-
2. Tighten the long screw into the holes of the tank bracket
and cover the drainage hole with the big cap, cover the
inlet hole with the small cap.
2.
Inlet Hole
Drainage Hole
Big Cap
Tank Bracket
Small Cap
Long Screw
3. Connect tap water braided tube on the top of water tank for
water supply as shown.
Note: 1. Ensure water tank internal valve is OFF.
2. Suggestion: connect a temporary rubber or plastic
hose on valve, flush water supply pipeline. Ensure
water is clean, no residual sand stone or fouling
inside pipeline.
3.
1.
2.
B. Floor Discharge Installation Method
B.
1. There are three methods (A, B and C) for drainage pipe
installation. Loosen the knob "open" on the fixing frame,
put the drainage pipe into the fixing frame, then adjust and
tighten the knob "lock". Fill the bottom of the drainage pipe
in the drainage hole .
1. A B C
open
lock
B
C
A
Discharge
Elbow
Discharge
Elbow
Discharge
Elbow
Water Tank
Bracket
Water Tank
Bracket
Water Tank
Bracket
Drain outlet 90mm, welding
90mm
Drain outlet 110mm
110mm
Drain outlet 110mm, welding
110mm
Drainage Pipe
Tank Bracket
Bottom of the Drainage Pipe
Drainage Hole
Fixing Frame
Knob
Connecting Pipe
Water Pipe
1288818-T01-A
