-7-

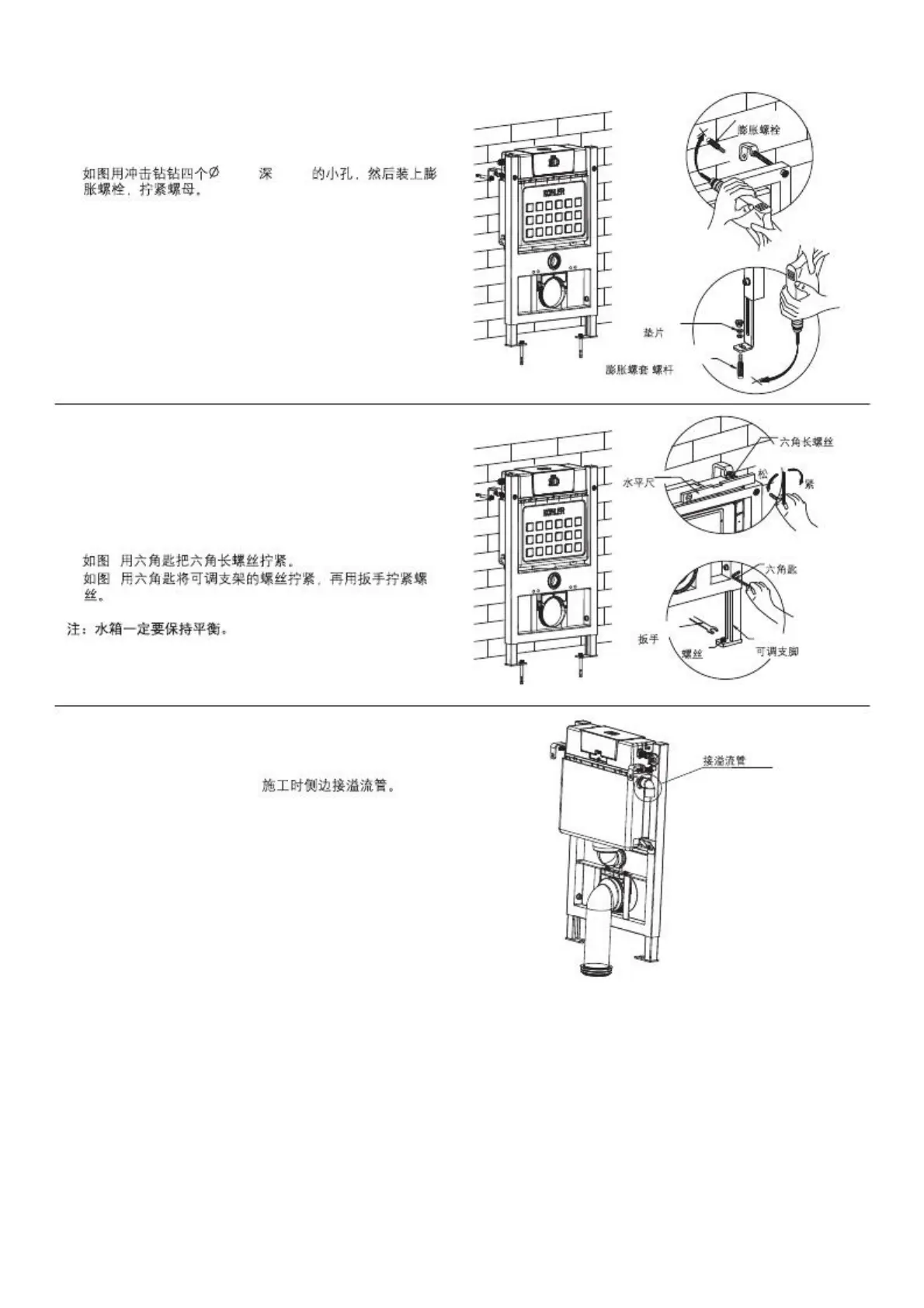

Connect with overflow pipe on the side when installing
K-20006K-PNE/K-20008K-PNE.
K-20006K-PNE/K-20008K-PNE
A
B
Overflow Pipe
3. Drill four holes with diameter of 10mm and depth of 80mm
with churn drilling as shown, and fill in the holes with bulge
screw and tighten the screw.
3. 10mm 80mm
Bulge Screw
Gasket
Bulge Screw Cap/Bolt
/
4. Tighten the hexagonal long screw with medium Allen key
as shown in illustration A.
Tighten the screw of adjustable brackets with medium
Allen key as shown in illustration B, and tighten the long
screw with spanner.
NOTE: Ensure the tank to remain level.
4. A
B
Hexagonal Screw
Loosen
Tighten
Level
Medinm Allen Key
Adjustable Bracket
Spanner
Screw
1288818-T01-A
