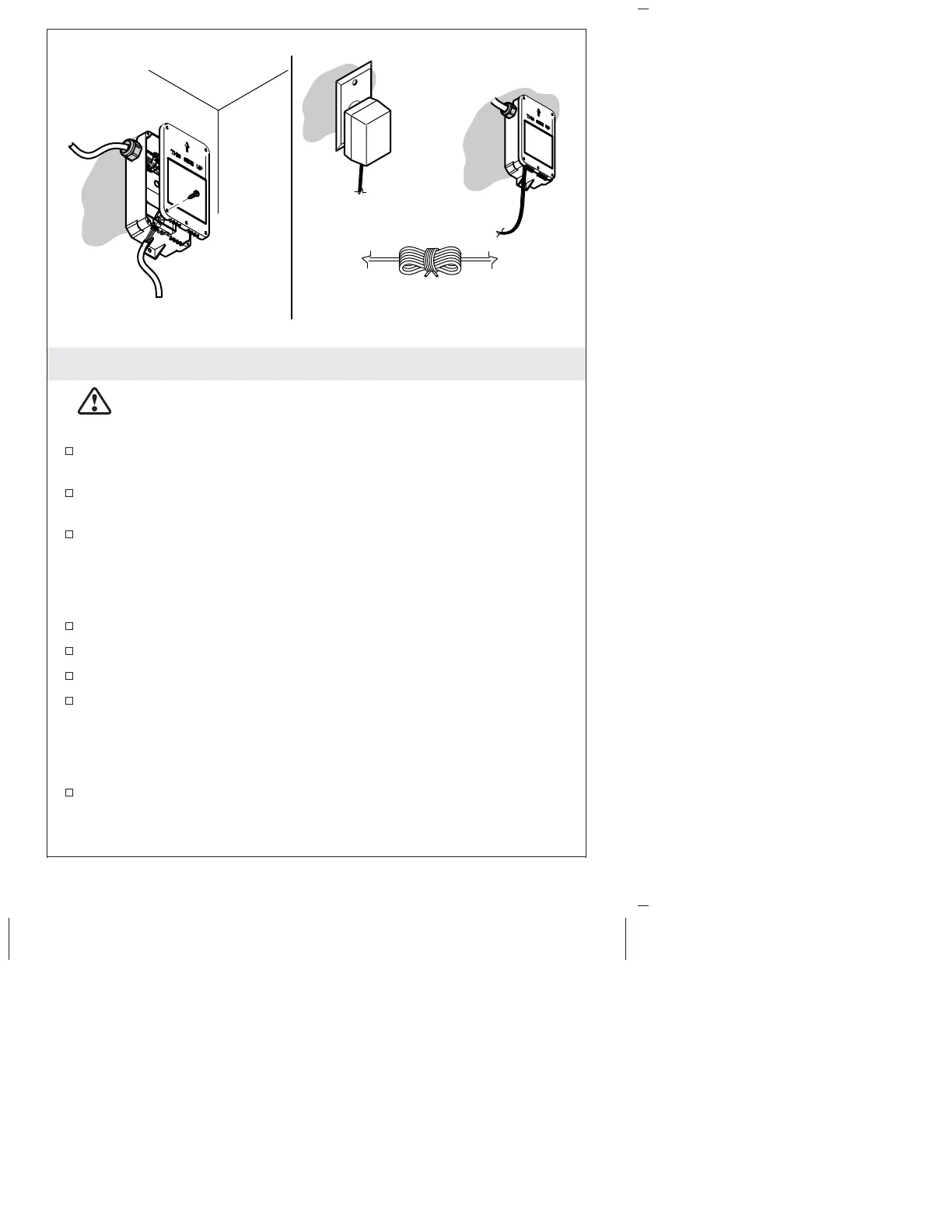

10. Hard Wire Installation
CAUTION: Risk of electric shock. Make sure the power has
been disconnected before performing the following
procedures.
Loosen the terminal block screws and remove the wires from the
top terminal block.
Loosen the outside nut of the strain relief and remove the power
cord.
Put the supply wires through the strain relief and connect them
to the top terminal block.
NOTE: If a hard wired installation is required the strain relief may
need to be replaced depending on the wire used.
Tighten the nut on the strain relief.
Replace the cover, and install and tighten the four screws.
Turn on the AC supply power.
Secure any excess wire under the counter.
IMPORTANT! The area in front of the sensor must be free of
objects during the 2 minute learning cycle or the faucet may not
function properly.
Allow 2 minutes for the sensor to cycle through the automatic
sensing distance.
Secure any excess
wire under counter.
Kohler Co. 15 1207552-2-B
