Product Information
Applicable product:
Drop-in bath K-1834
Fixture*:
Bathing well:
Basin area,
bottom
45-3/4″ (1162 mm) x 25-15/16″ (659 mm)
Basin area, top 65-3/8″ (1661 mm) x 29-5/16″ (745 mm)
Weight 82 lbs (37.2 kg)
To overflow:
Water depth 19-7/16″ (494 mm)
Capacity 112.9 gal (427 L)
*Approximate measurements for comparison only.
Drop-in cut-out 71-1/2″ (1816 mm) x 35-1/2″ (902 mm)
Required accessories:
Slotted overflow brass bath drain OR K-7271
Slotted overflow bath drain – PVC pipe K-7272
Optional accessories:
Undermount kit K-593
Pillow K-1491
Footstop K-1601
Notes
Install this product according to the installation guide.
Floor support under bath must provide for a minimum of 58
lbs/square foot (285 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
Fixture conforms to ANSI Standard Z124.1.2. All dimensions are
nominal.

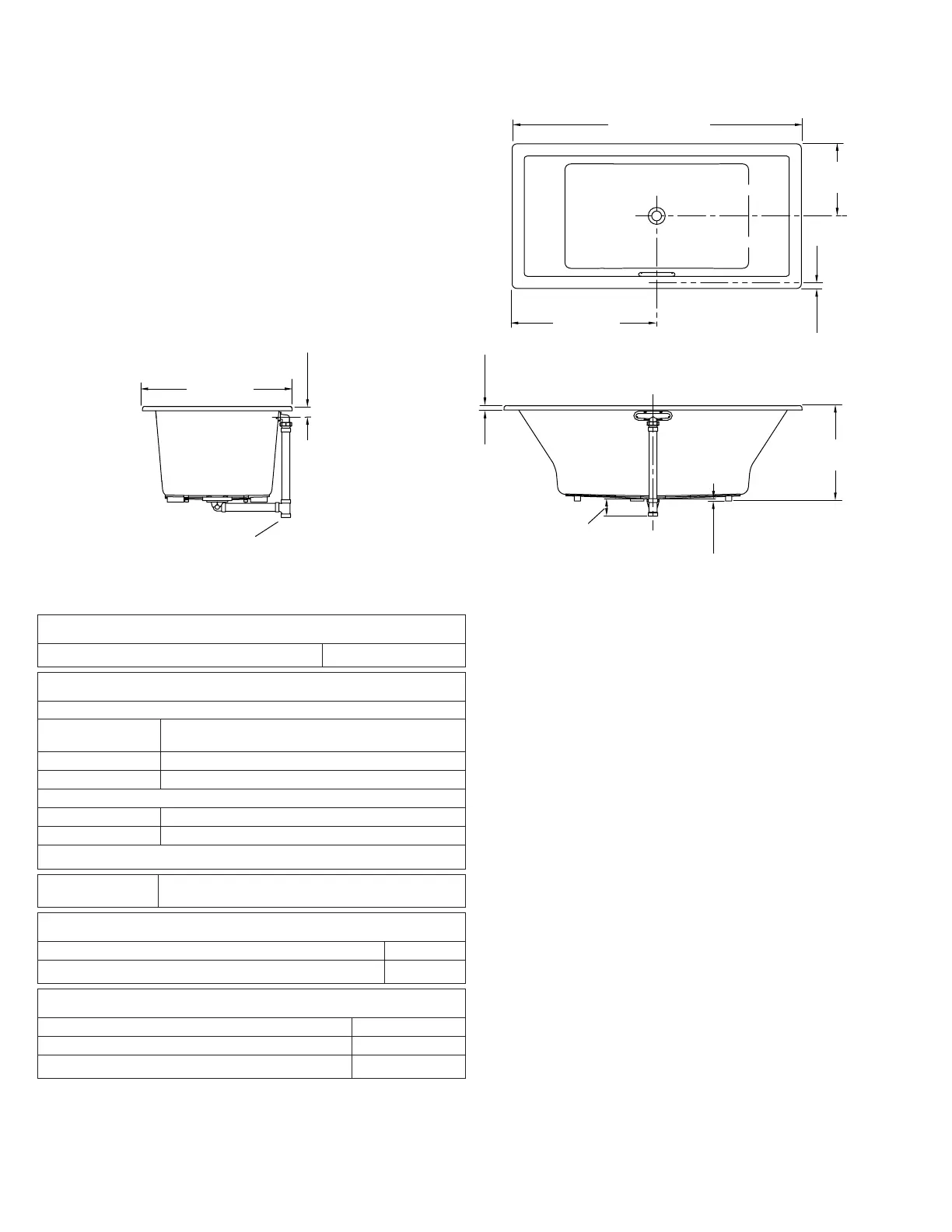

72" (1829 mm)
36"
(914 mm)
1-1/2"
(38 mm)
18"
(457 mm)
1/2"
(13 mm)
4-1/8"
(105 mm)
No change in measurement if connected with
drain illustrated. (K-7272)
1-1/2" Bath Drain
23"
(584 mm)
1"
(25 mm)
36"
(914 mm)
2-7/16"
(62 mm)
1167620-1-A 2 Kohler Co.
