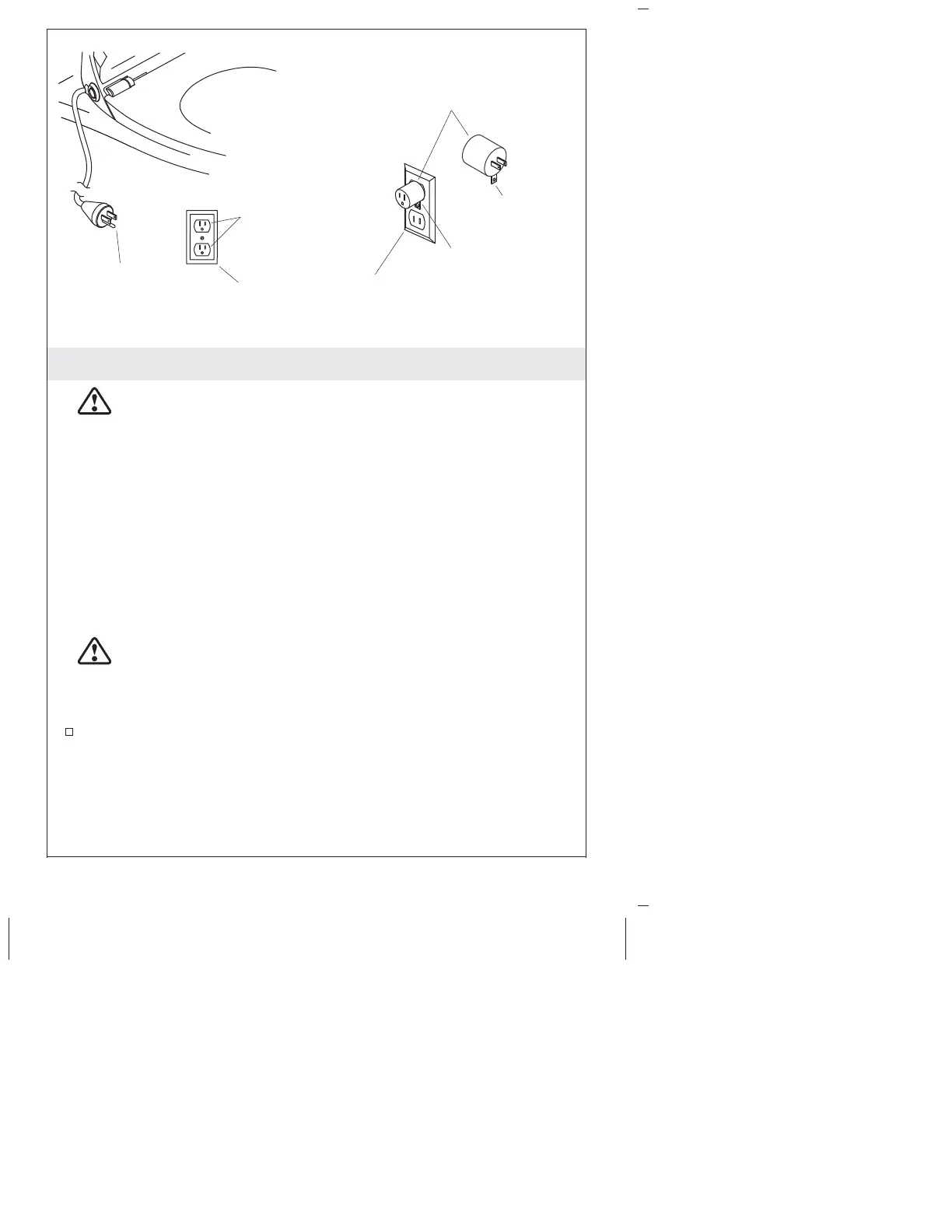

Wiring Requirements
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD).
NOTICE: Consult your local electrical codes before determining the
connection type and the electrical outlet location. The temporary
connection may not be permitted by local electrical codes and the
electrical outlet location may be specified.
NOTICE: To avoid possible product malfunction, do not plug in the
seat until instructed to do so.
Preferred Connection
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded with a grounding plug with
grounding pin, as illustrated. Using another type of
grounding plug is dangerous and may result in electric shock,
fire, or personal injury.
Connect the grounding plug with grounding pin into the
grounded outlet.
Temporary Connection
NOTICE: The cover screw must be grounded through the house
wiring. Connecting the adapter with grounding screw tab to the
Grounded Outlet
Seat
Cover Screw
Adapter
Grounded Outlet Box
Grounding Pin
Grounding
Screw Tab
Temporary ConnectionPreferred Connection
Kohler Co. 3 1054180-2-F
