Kohler K-4709 Installation Guide

3. Install the Mounting Plate
NOTE: Inspect the toilet mounting holes for threaded inserts.
Follow the steps applicable to your mounting hole type.
For Toilets with Threaded Inserts
Position the mounting plate over the mounting holes on the bowl.
Slide a washer onto each of the bolts (provided).
Insert a bolt through the mounting plate and position the washers
so they rest in the grooves of the mounting plates.
Loosely thread the bolts into the inserts. The nut must be loose
enough to allow the seat to be adjusted.
For All Other Installations
Position the mounting plate over the mounting holes on the bowl.
Insert each bolt through the mounting plate and into the
mounting holes.
Position the washers to rest in the grooves of the mounting plate.
Loosely thread a nut onto each of the bolts. The nut must be
loose enough to allow the seat to be adjusted.

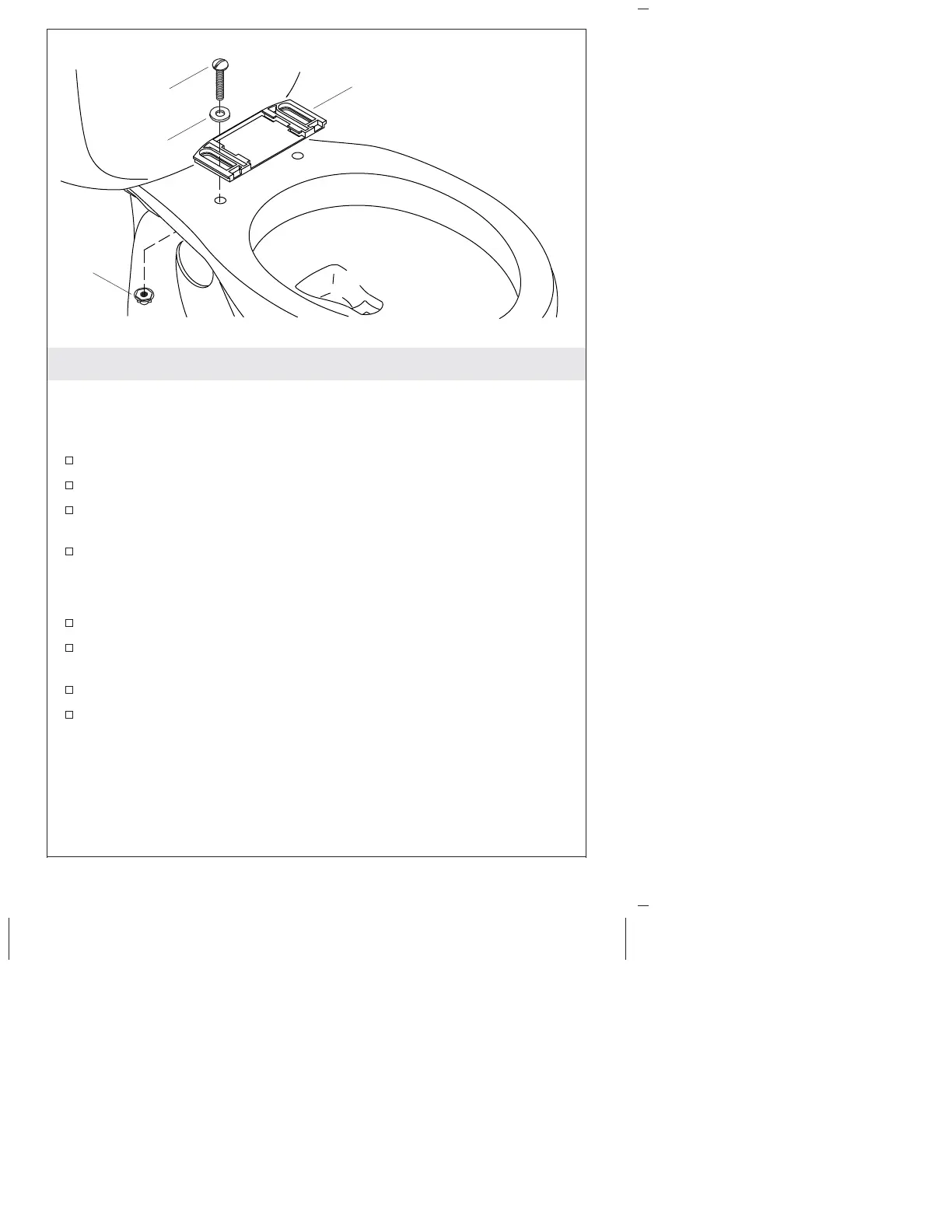

Mounting Plate
Bolt
Washer
Nut
