5. Water Temperature Adjustment
NOTE: Before adjusting the water temperature, ensure that the
handle is turned all the way to the left. This is the maximum hot
position.
Remove the handle, screw, valve stem adapter, and bonnet. Note
the position of the components for reassembly.
Position the indexer to stop the valve stem at the desired
maximum temperature.
Turn the water on and rotate the valve stem to full hot to confirm
the setting.
Reinstall the handle and bonnet onto the faucet body.
Stop
Tab

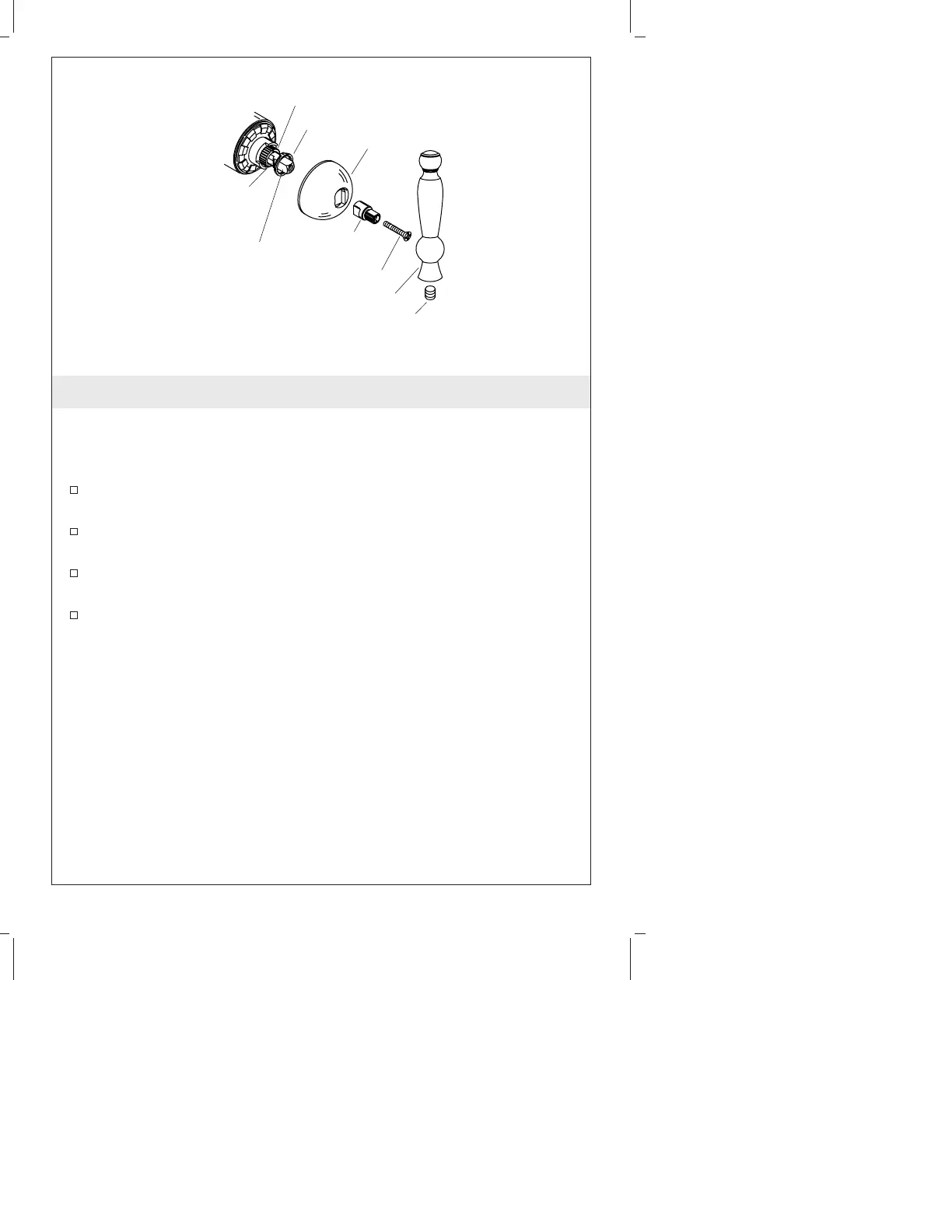

Valve
Stem
Valve Stem
Adapter
Handle
Setscrew
Screw
Bonnet
Indexer
Splines
1013943-2-D 6 Kohler Co.
