Drain Installation
Remove the protective cover from the flange.
Unscrew the flange from the drain body.
For installation to thin-walled vessel style lavatories: remove the
tapered gasket from the drain body and install the thick tapered
gasket.
Apply a ring of plumbers putty or other sealant to the underside
of the flange according to the putty manufacturer’s instructions.
From the underside of the fixture, insert the drain body up into
the drain hole.
From the top of the fixture, securely hand tighten the flange onto
the drain body.
Thread the nut up the drain body until the flange sits snug
within the lavatory hole. Be careful not to rotate the drain when
tightening the nut. Using a wrench, tighten the nut.
Make sure the lift rod hole is facing the back of the fixture, and
securely tighten the nut.
Remove any excess putty or sealant.
Apply plumbers putty.

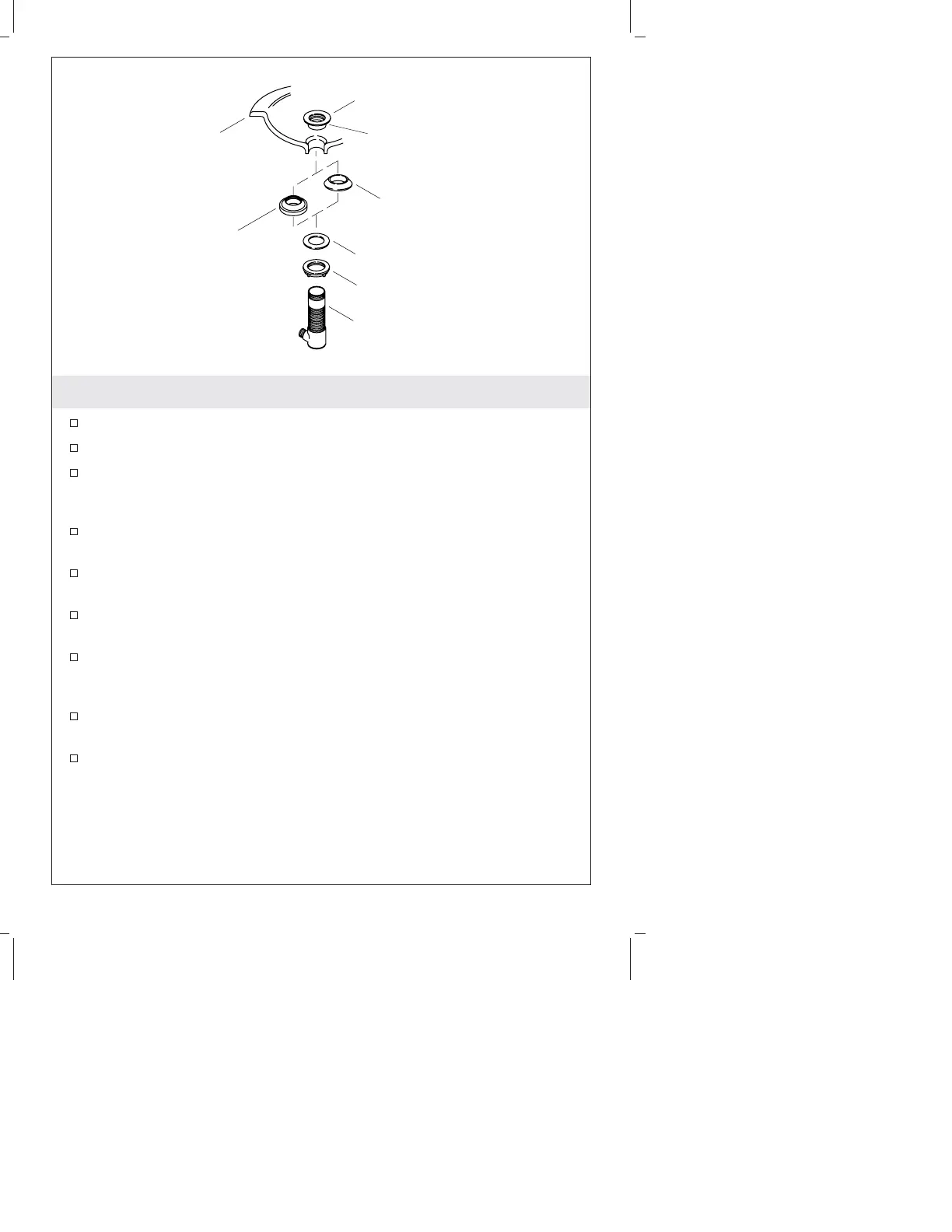

Flange
Tapered Gasket
Washer
Nut
Drain Body
Fixture
Thick Tapered Gasket
(for thin-walled vessel style
lavatory installations)
Kohler Co. 3 1041498-2-C
