1. Plan the System
NOTE: The controller powers the interface(s) and controls the
digital valve(s) and other system components.
NOTE: Your system may include installation of one or two digital
valves. A data cable is required for each valve.
NOTE: The data cable length is 25’ (7.6 m). Valve installation
location(s) must be within 24’ (6.1 m) of the controller.
Determine the locations of all components, including shower
fittings. For pre-programmed shower configurations, refer to the
guide found on the product page at www.us.kohler.com.
Refer to the installation guides packed with each product for
specific installation needs.

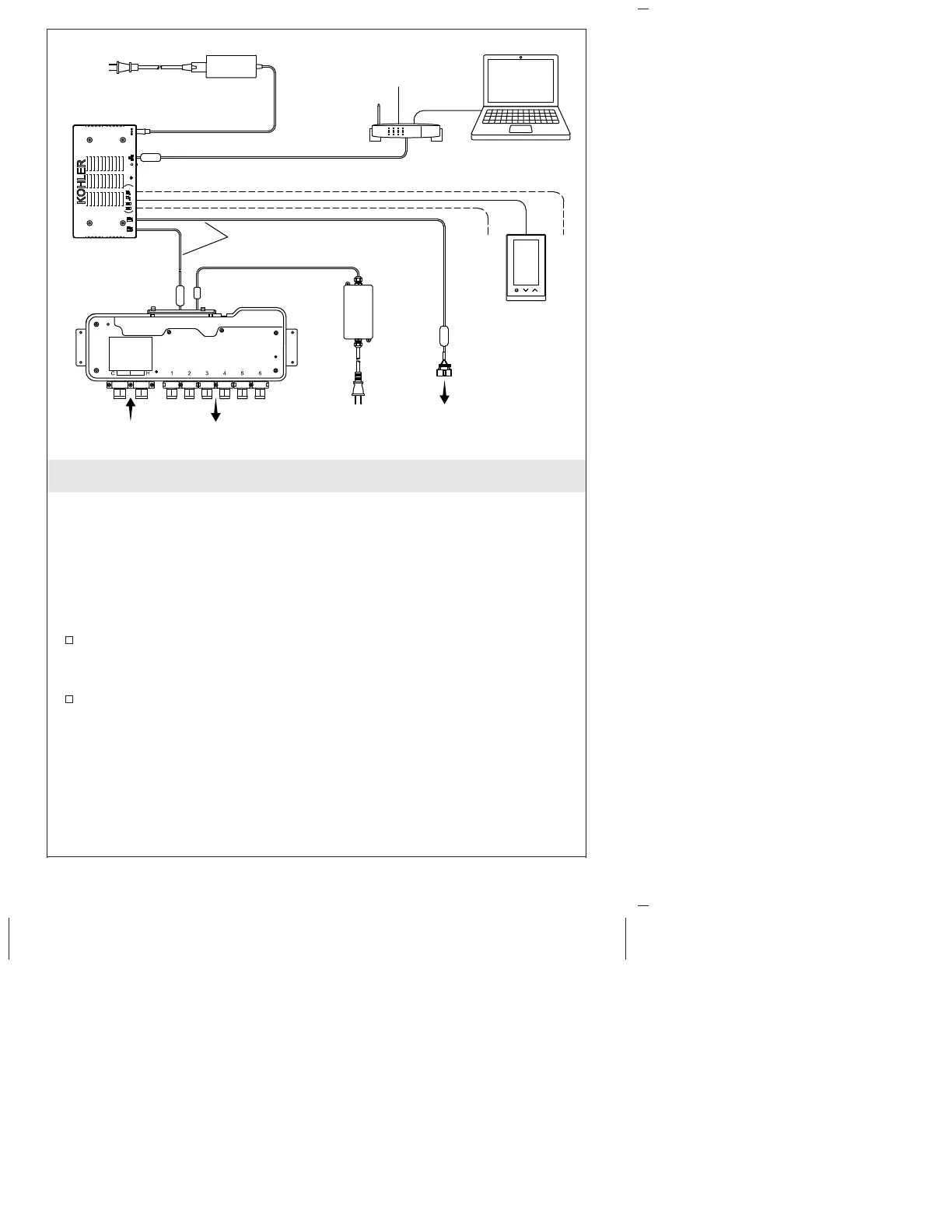

Internet
Service
Router
Computer
or Tablet
Shower FittingsWater Inlets
Controller
Ethernet Cable
Digital
Valve
Digital
Valve
AC
Power
Interface
(Up to Three)
25' (7.6 m) Data Cable
AC
Power
Kohler Co. 3 1230865-2-A
