Kohler K-97172 User Manual

2. Installation
Install the K-99695 system controller and the K-682 valve
according to the instructions packed with the products.
Route the data cable in the wall between the controller and valve
installation locations.

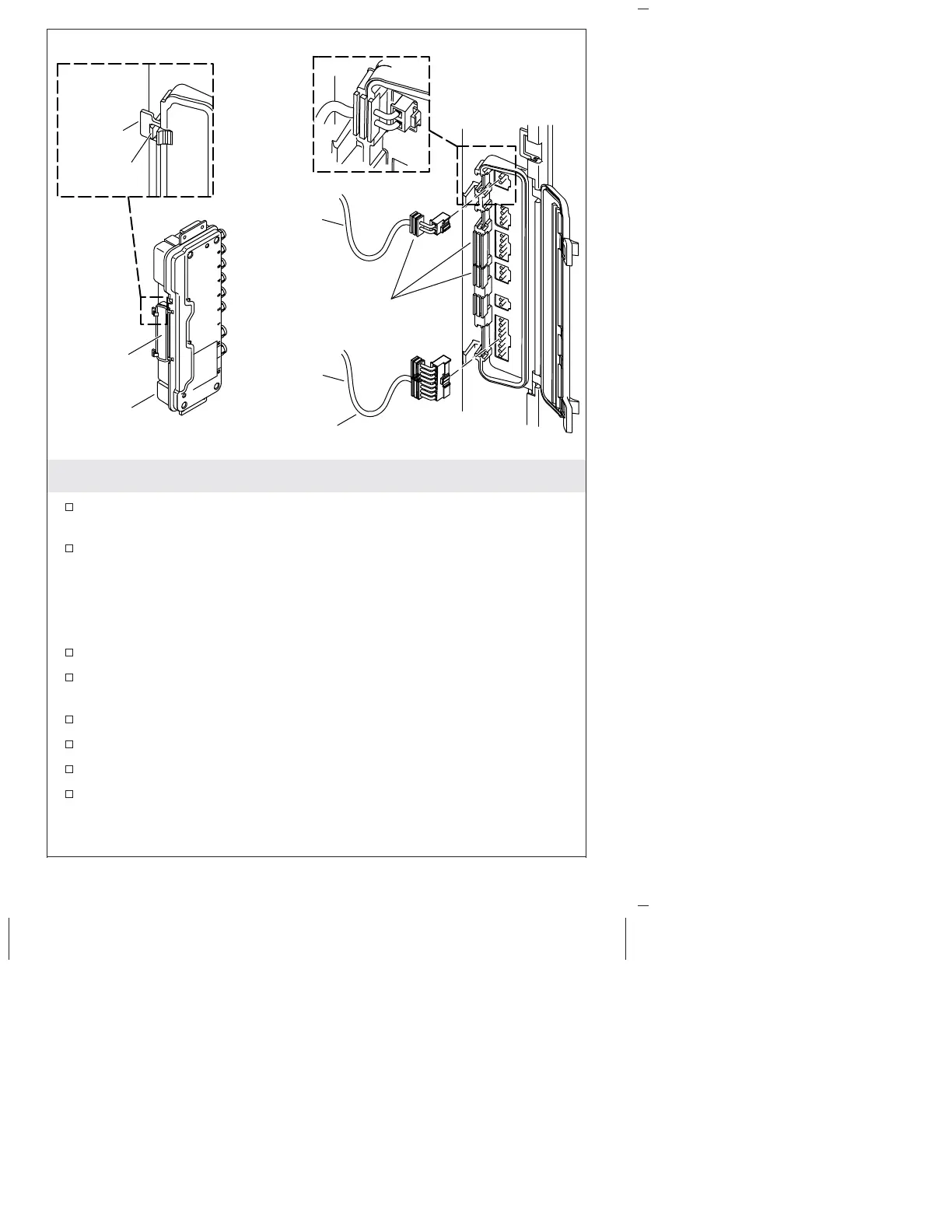

Connect the Cables
NOTE: Make drip loops in all cables and cords.
Press the clips to release and open the door on the valve.
To remove the door, slide the hinge side of the door in either
direction until it slips free.
Connect the data cable to the valve.
Connect the power supply to the valve.
Verify all grommets are in place, then reinstall the door.
To close the door, press on the tabs until the clips snap in place.
Tab
Clip
Door
Power
Supply
Grommets
Drip Loop
Data
Cable
Valve
1230865-2-A 4 Kohler Co.
